Transmission Position Sensor/Switch: Diagrams





Component Connector End Views

Park/Neutral Position (PNP) Switch (MN5)

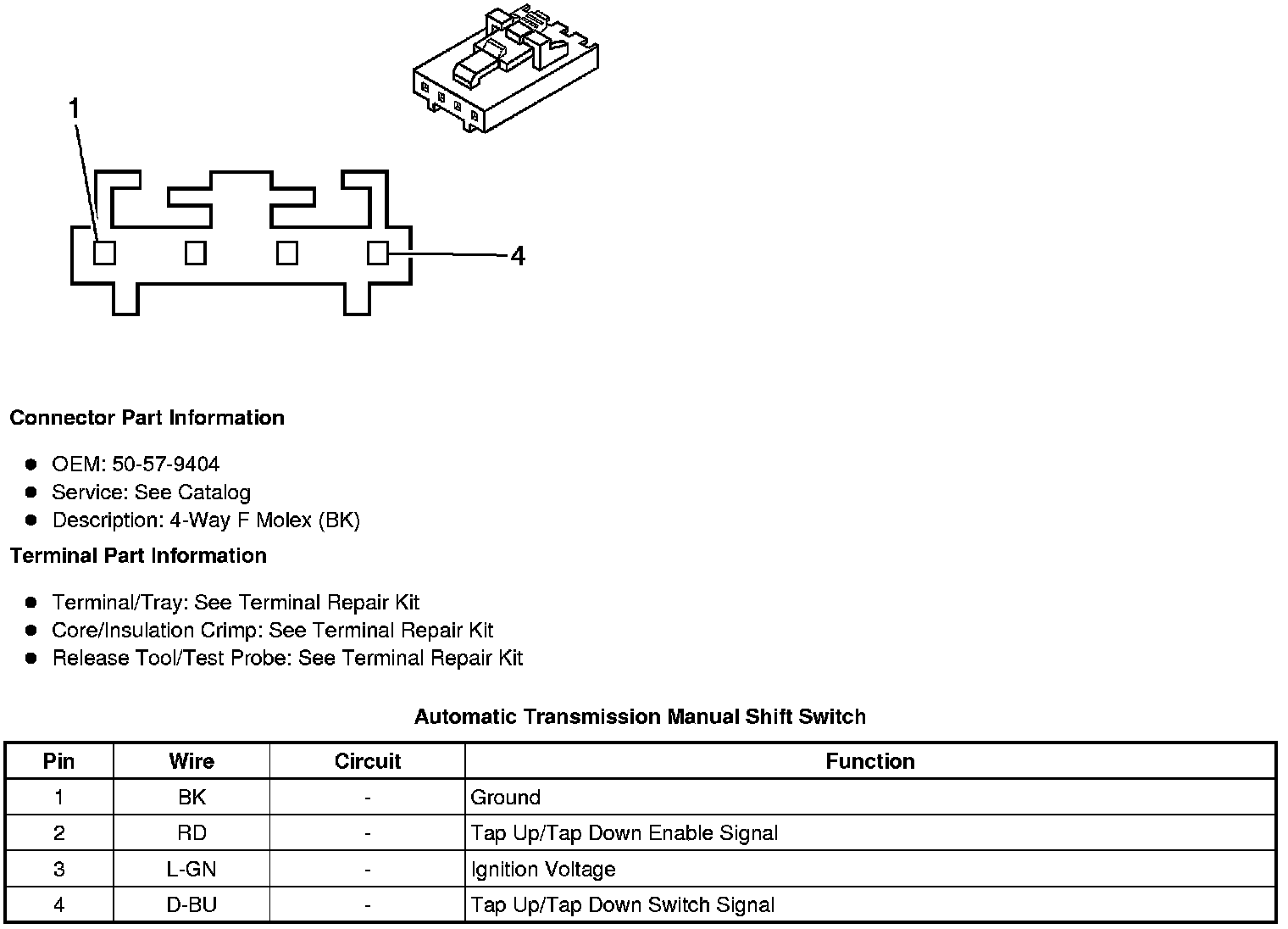

Automatic Transmission Manual Shift Switch

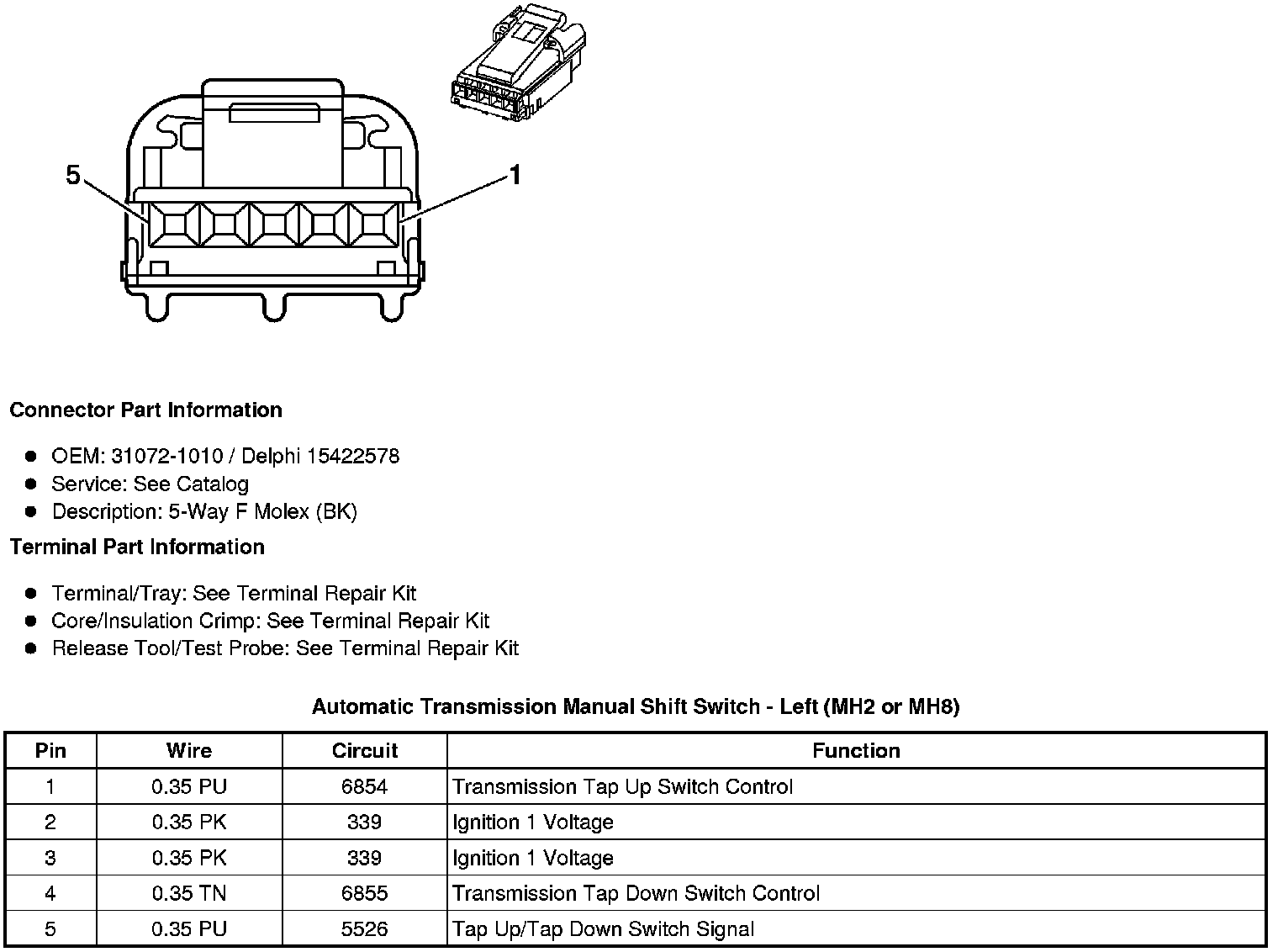

Automatic Transmission Manual Shift Switch - Left (MH2 or MH8)

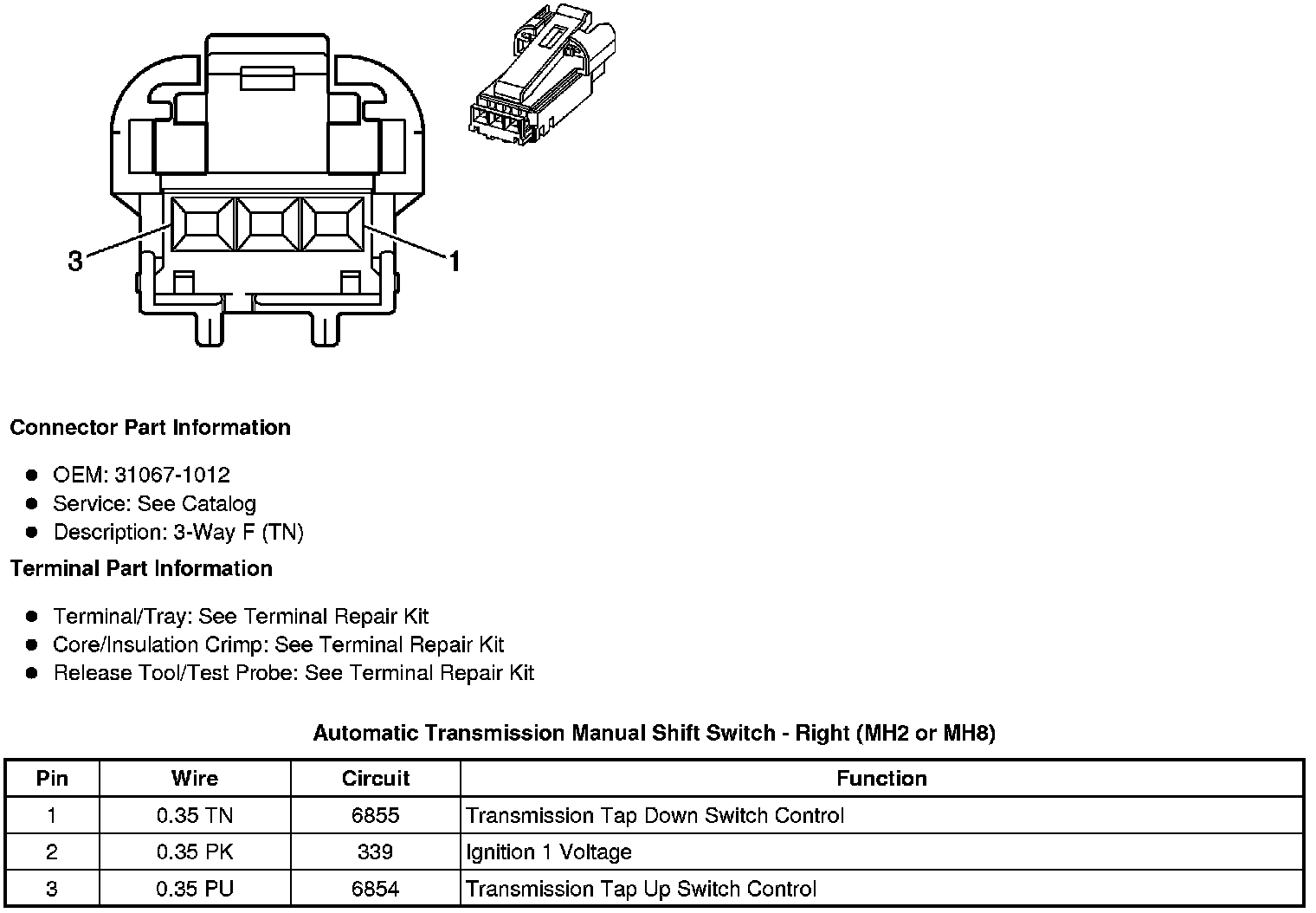

Automatic Transmission Manual Shift Switch - Right (MH2 or MH8)
