Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module

Sunroof / Moonroof Module




Component Connector End Views

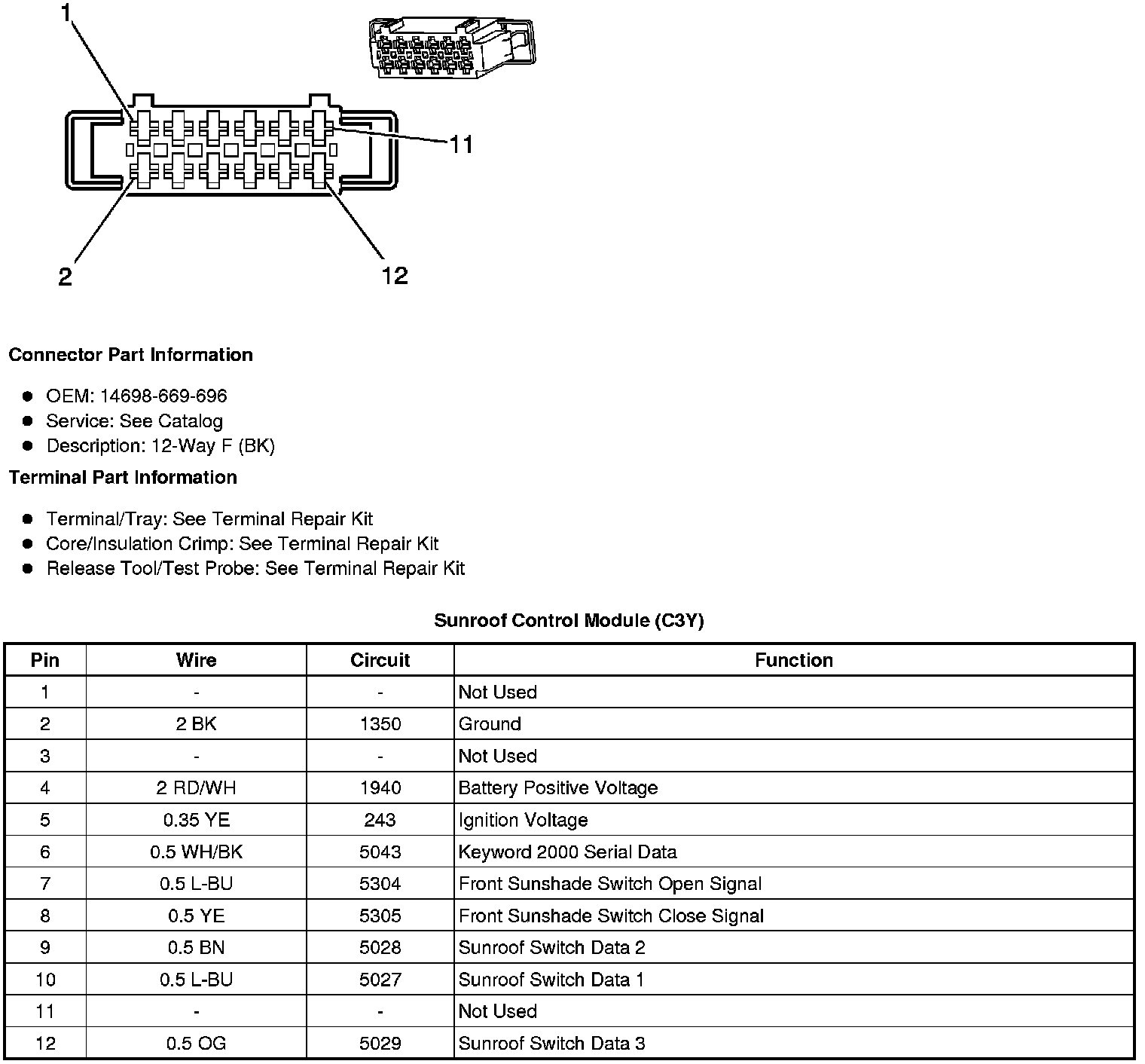

Sunroof Control Module (C3Y)

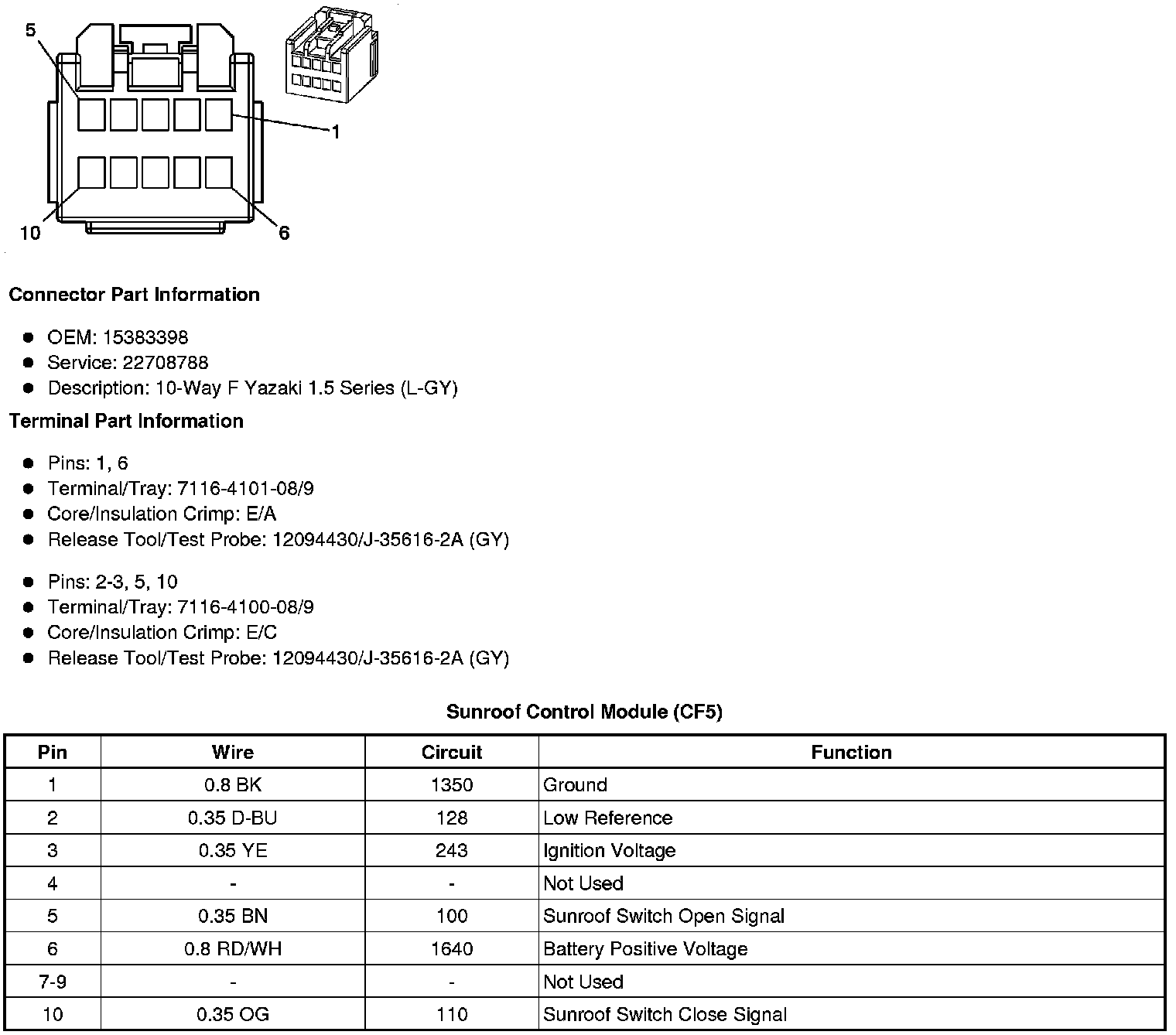

Sunroof Control Module (CF5)

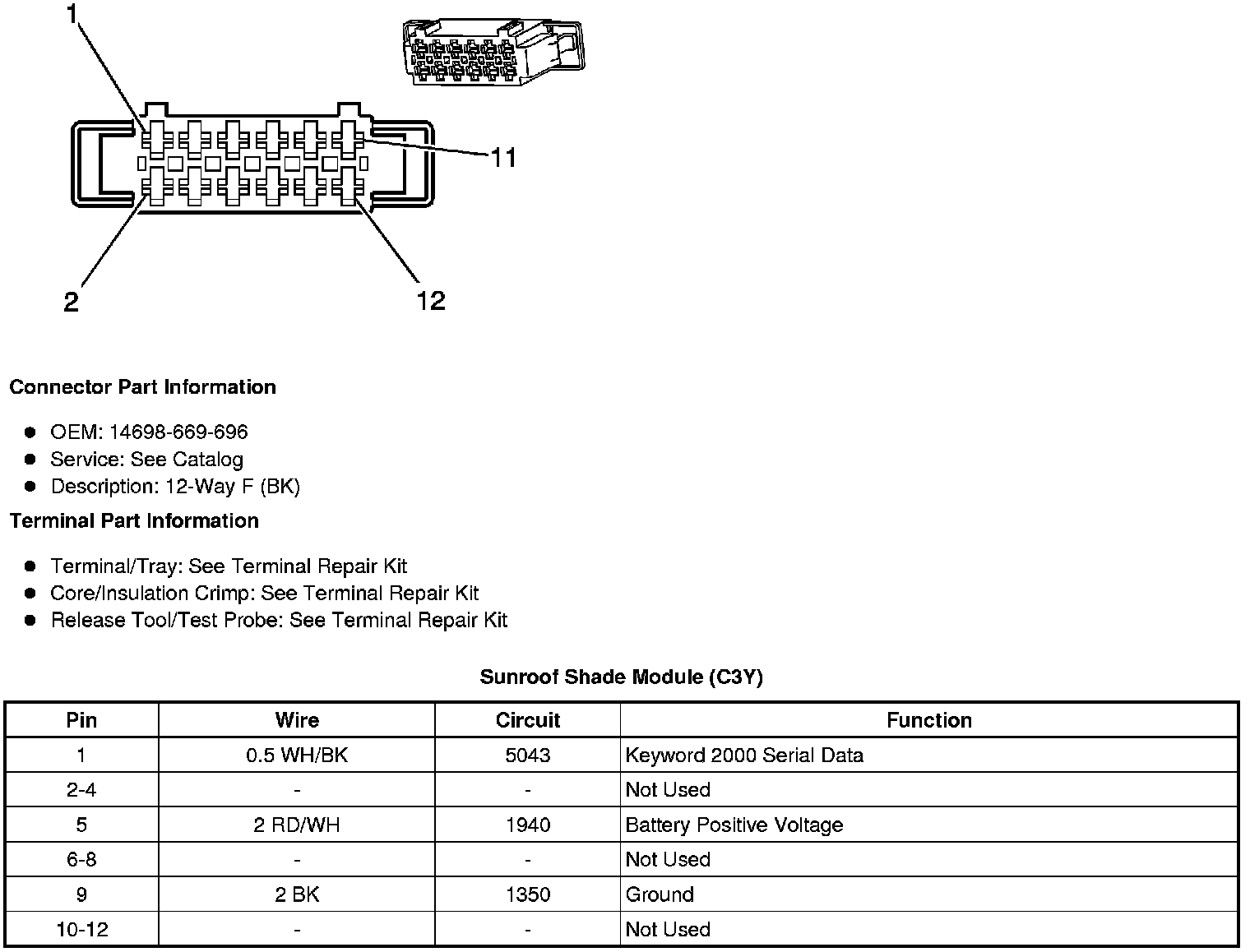

Sunroof Shade Module (C3Y)
