Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light

Map Light




Component Connector End Views

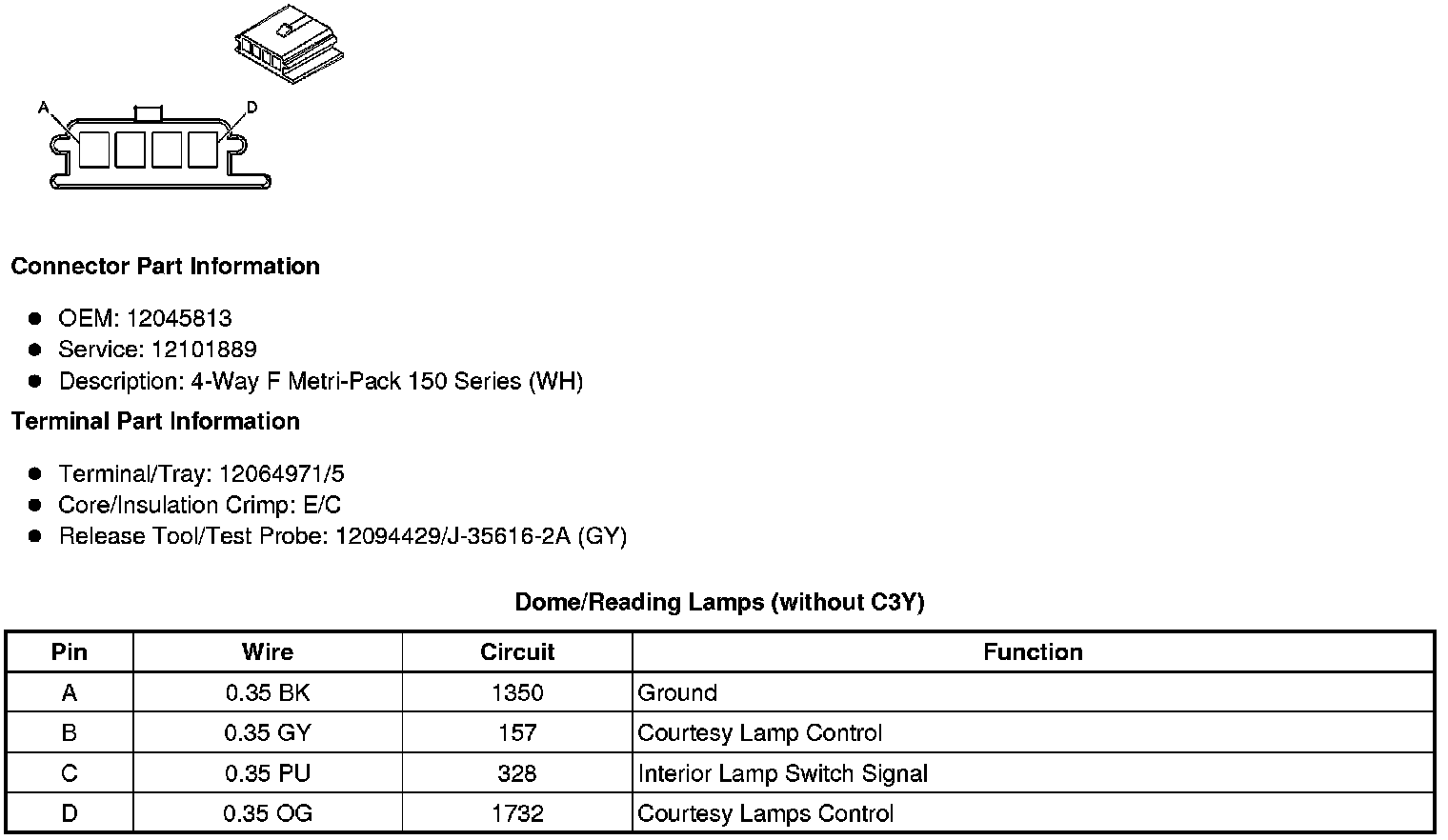

Dome/Reading Lamps (without C3Y)

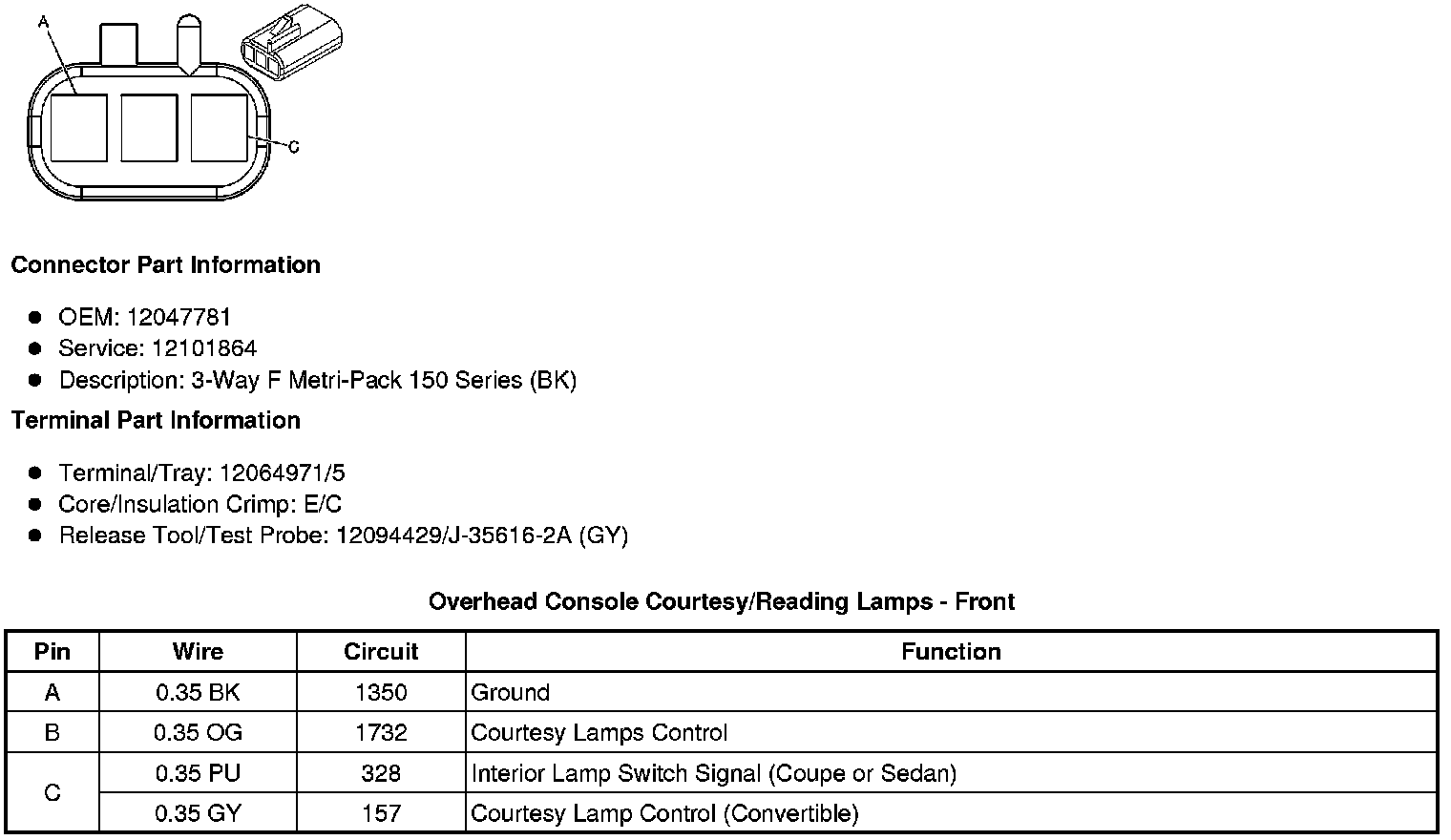

Overhead Console Courtesy/Reading Lamps - Front
