Engine Control Module




Component Connector End Views

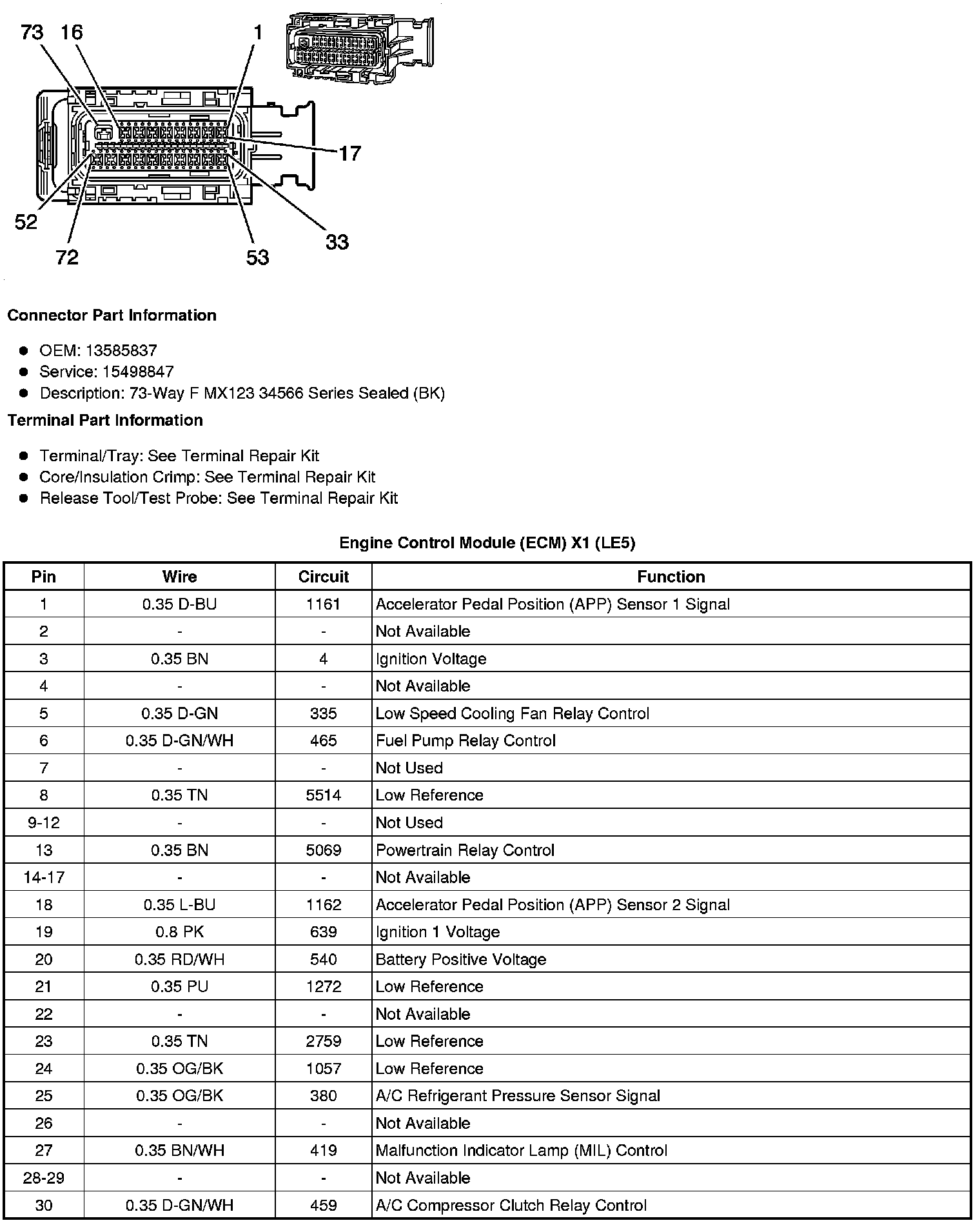

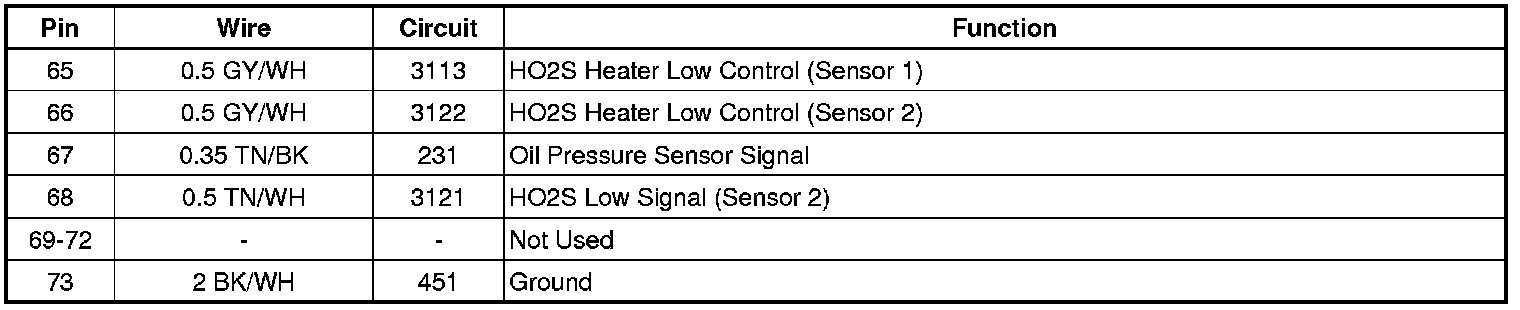

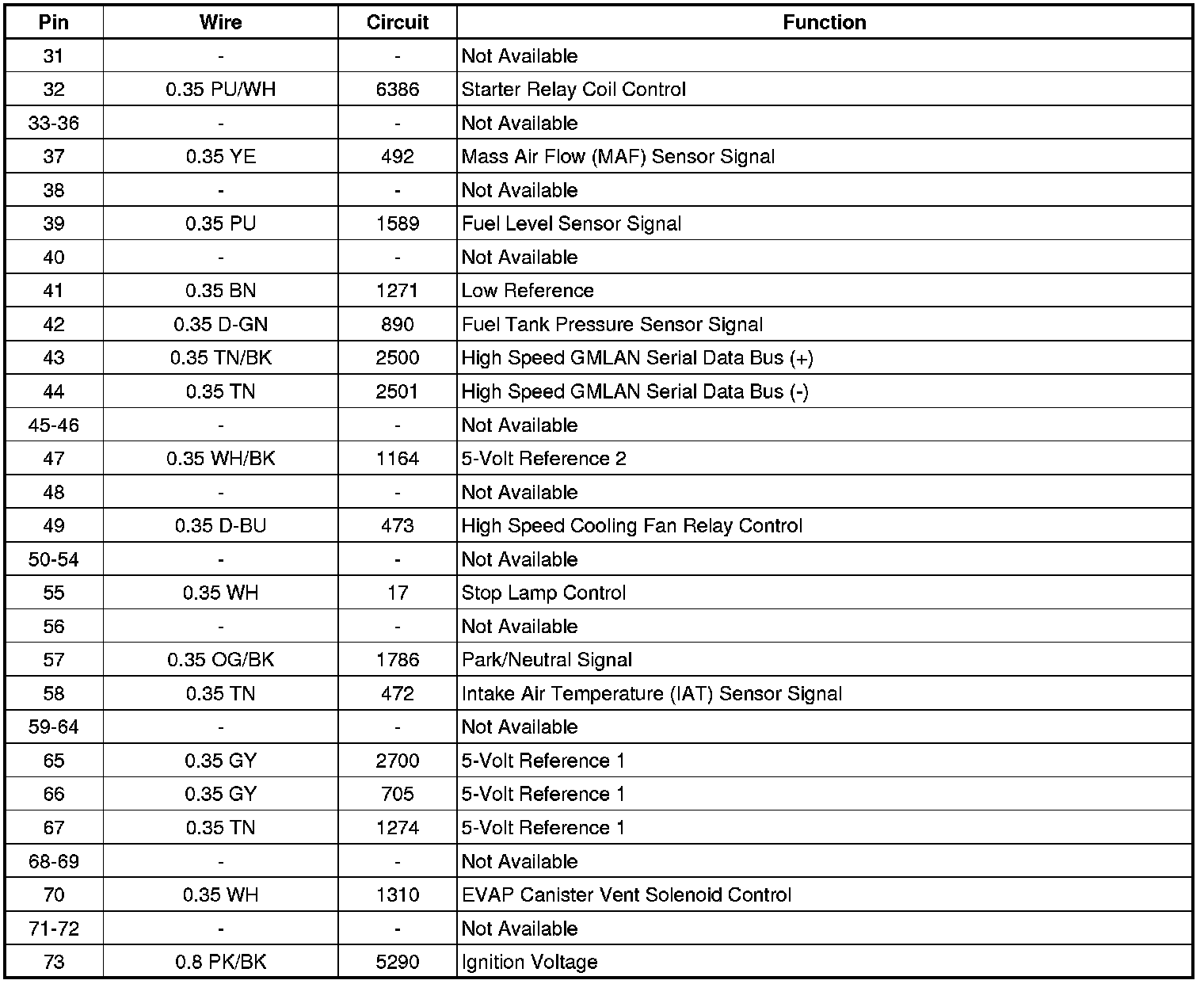

Engine Control Module (ECM) X1 (LE5)

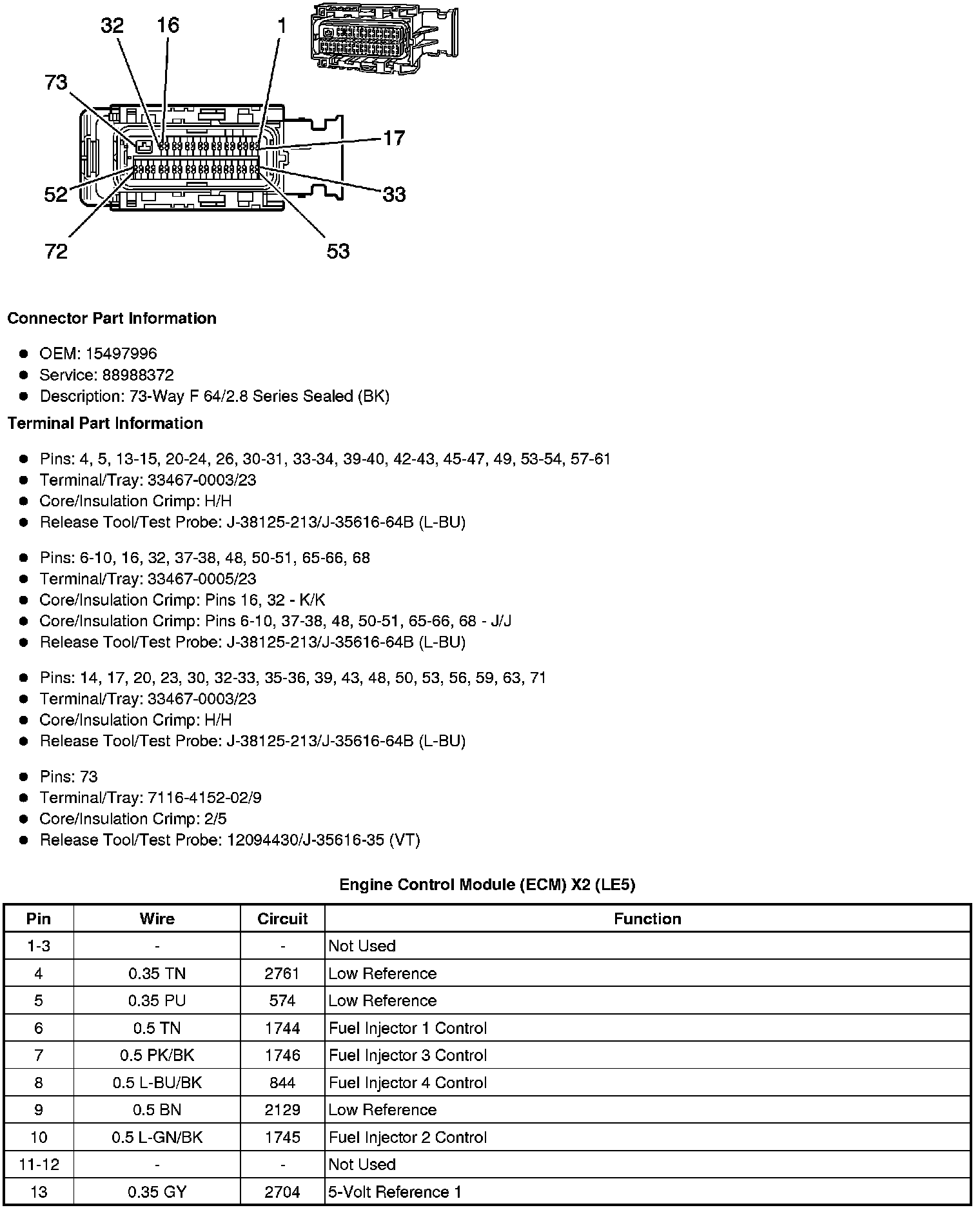

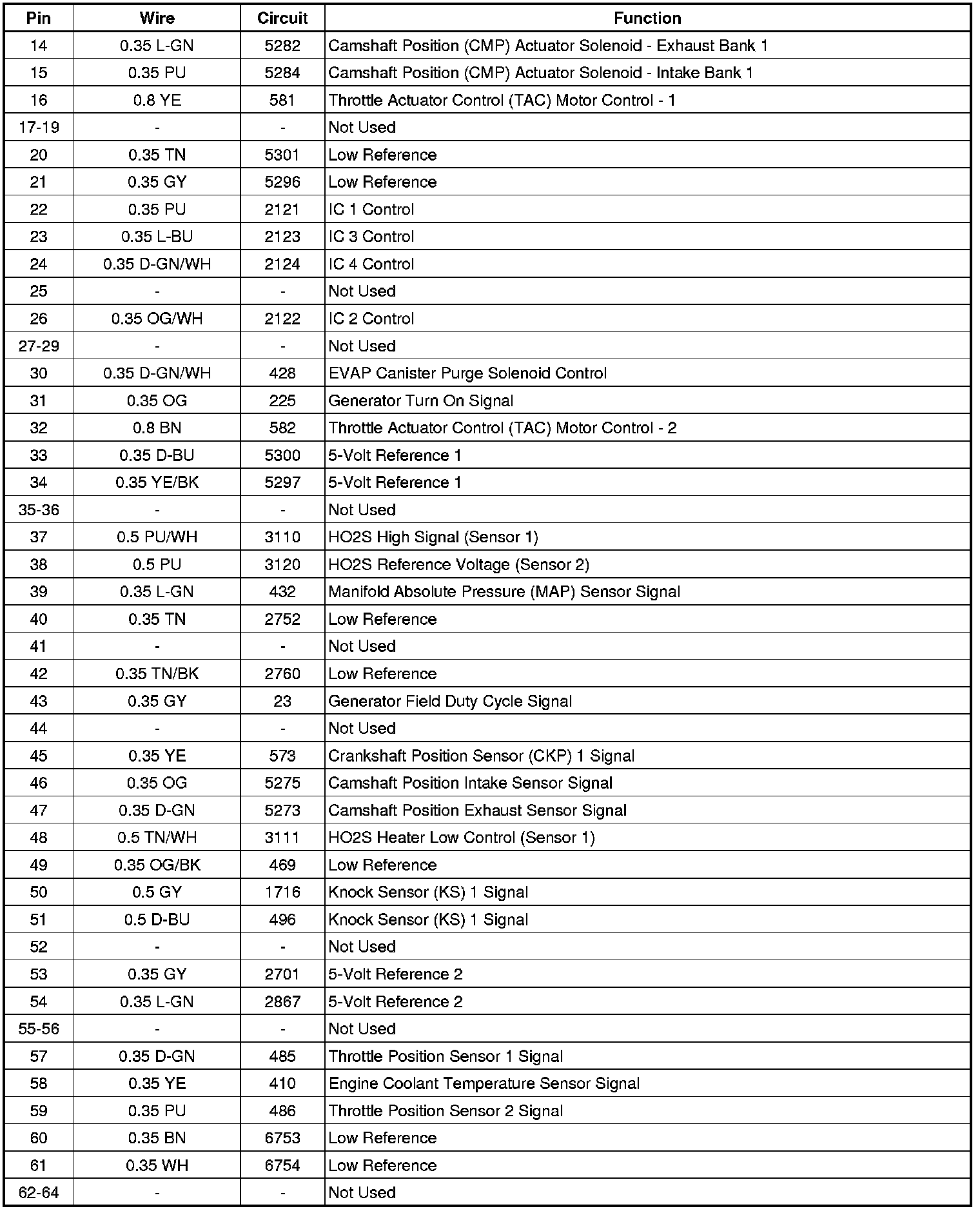

Engine Control Module (ECM) X2 (LE5)
