Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top >> Convertible Top Control Module

Convertible Top Control Module




Component Connector End Views

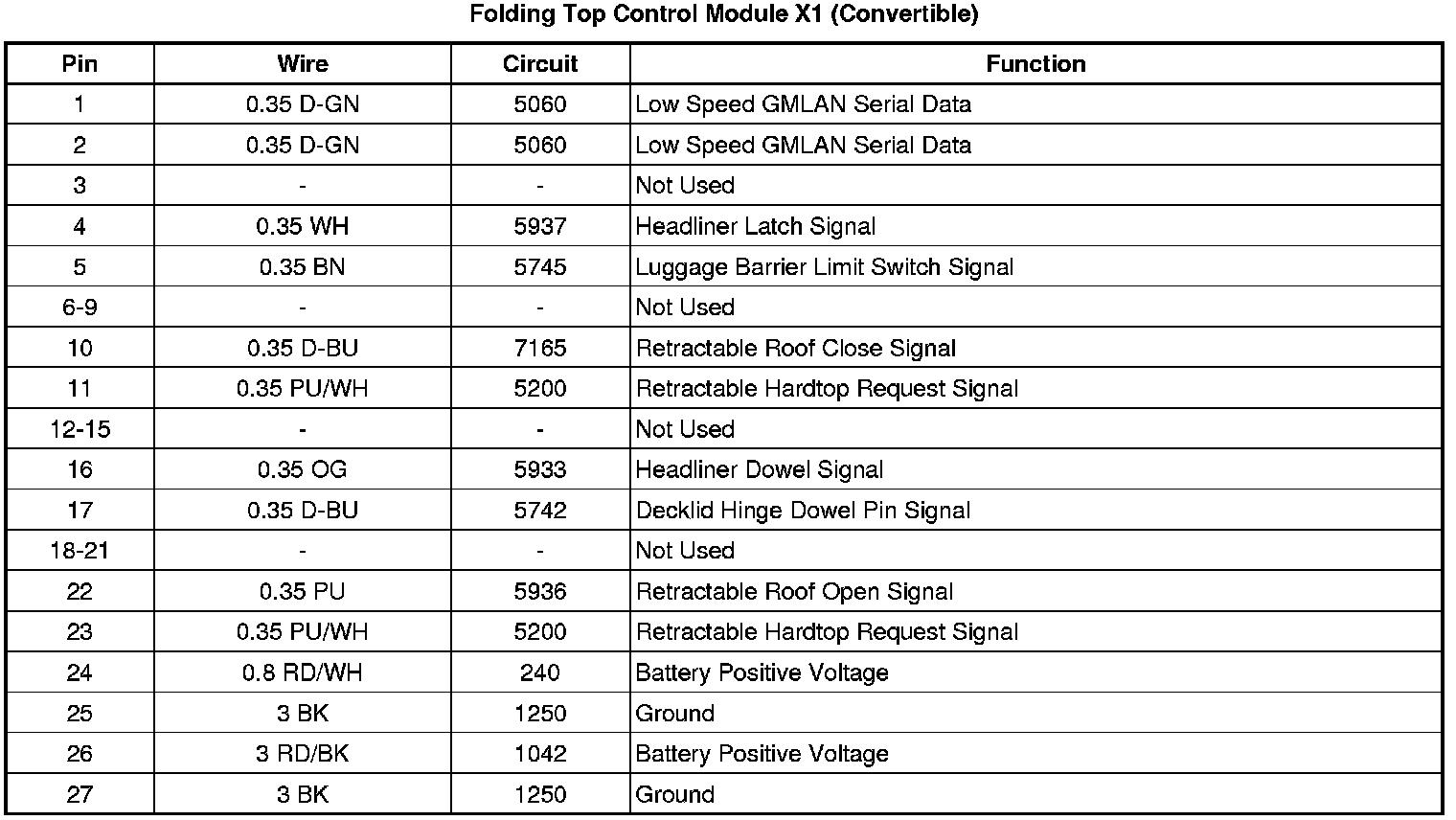

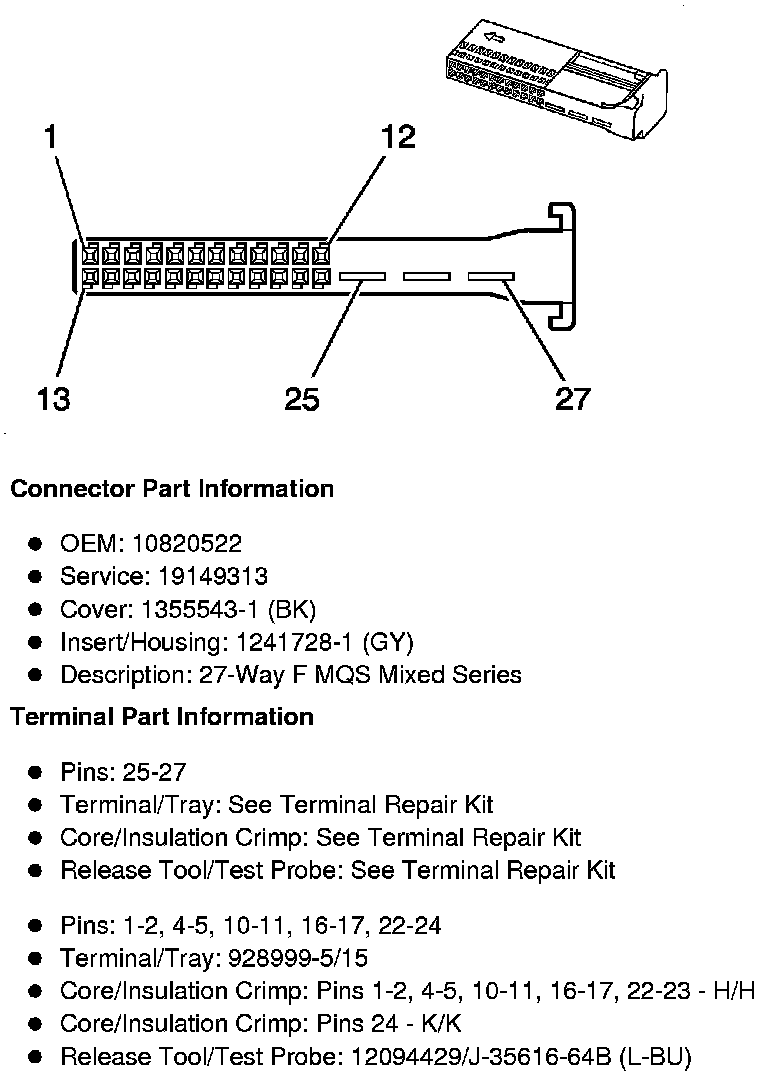

Folding Top Control Module X1 (Convertible)

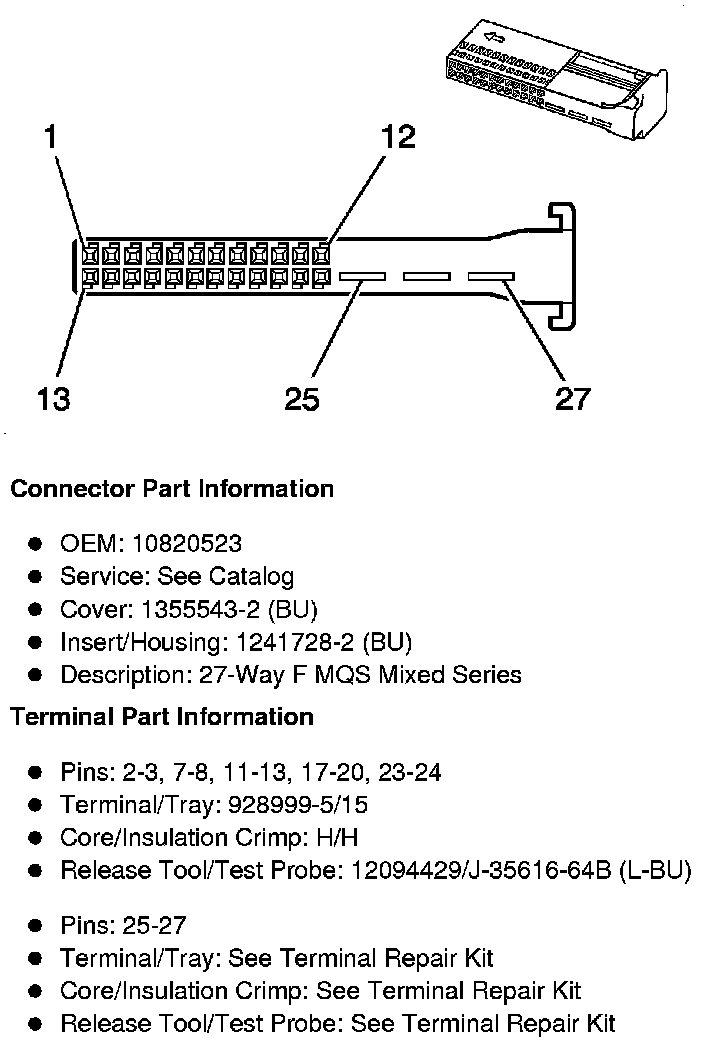

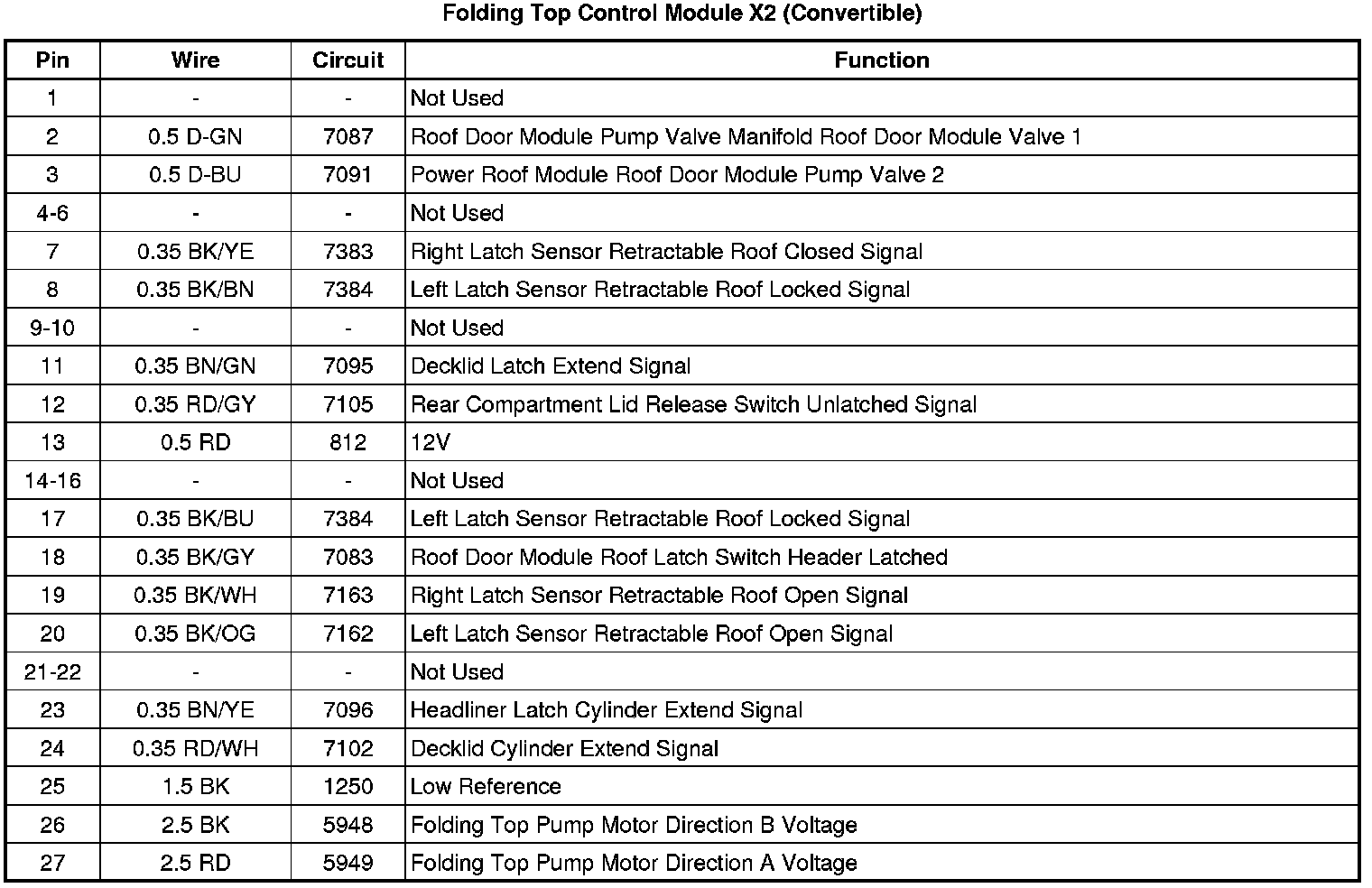

Folding Top Control Module X2 (Convertible)
