Control Module, A/T
Control Module, A/T
Component Connector End Views

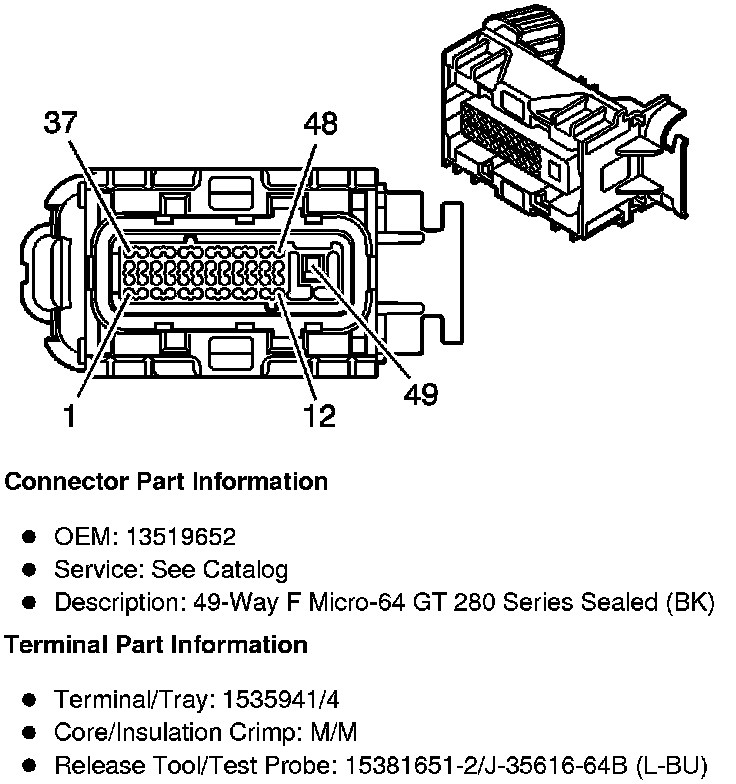

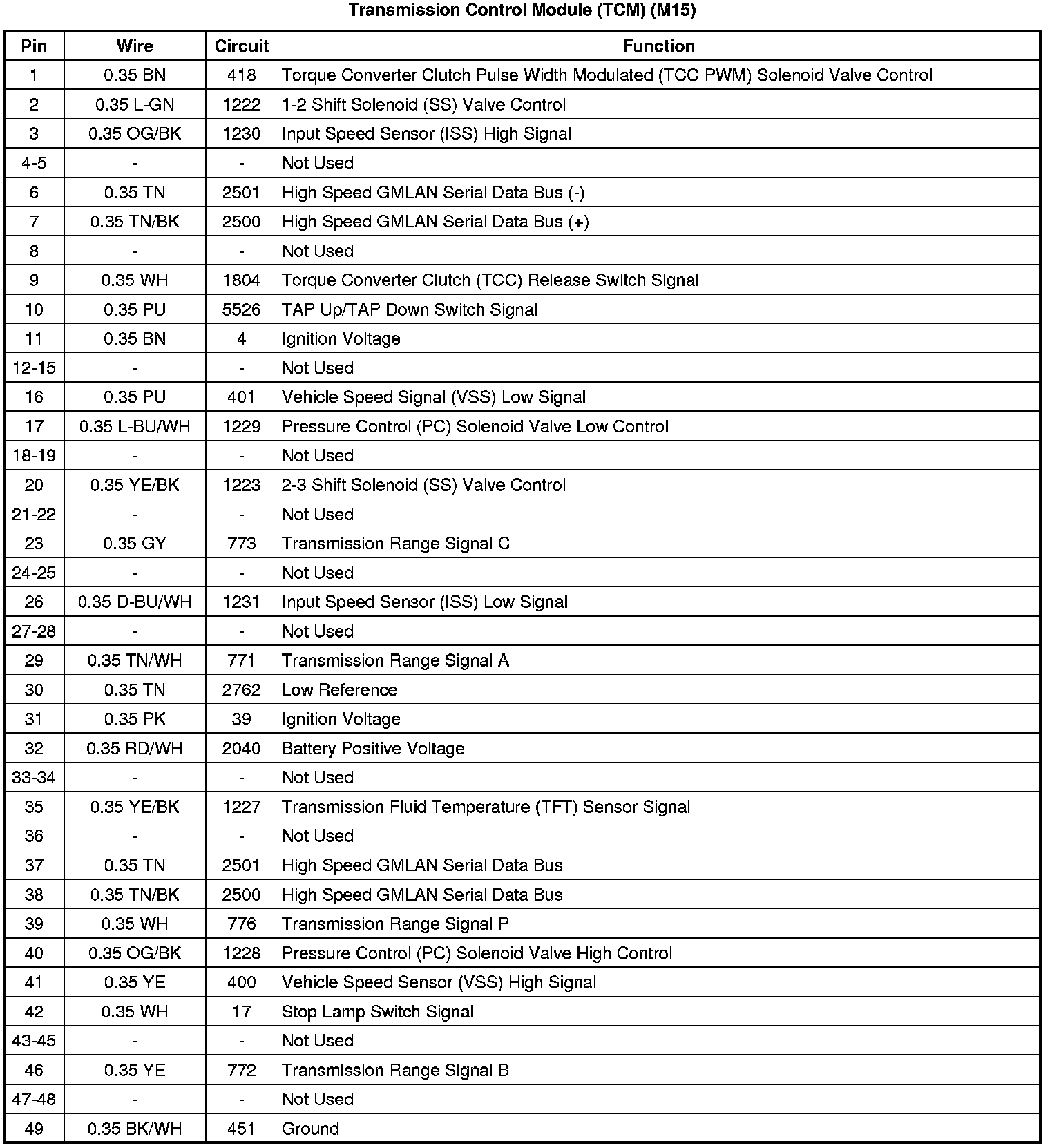

Transmission Control Module (TCM) (M15)

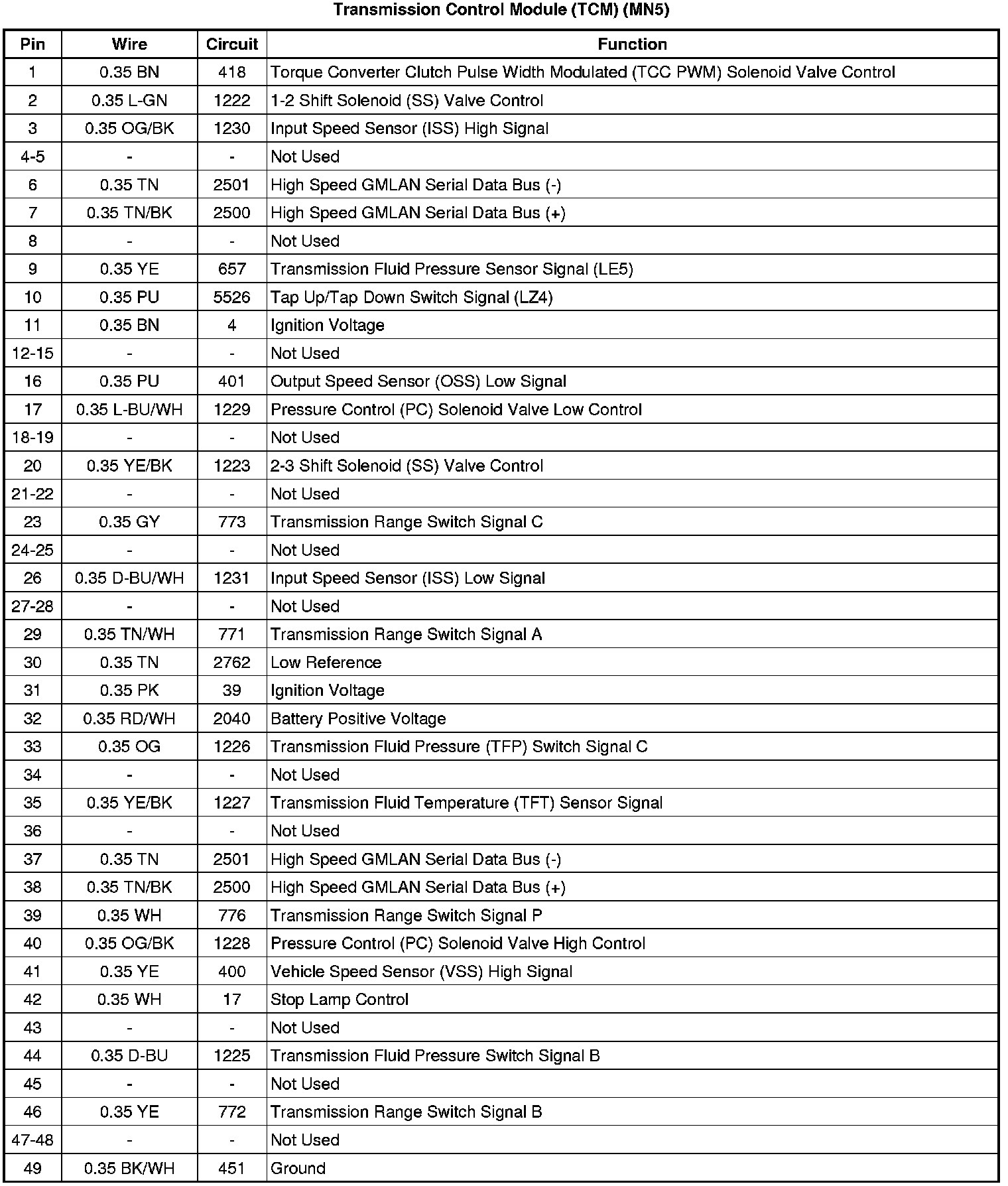

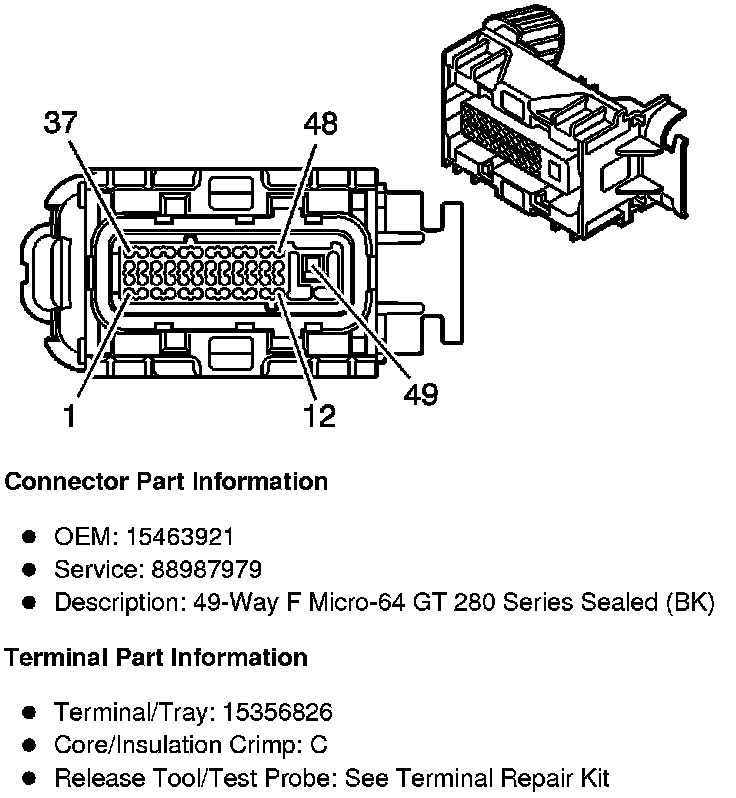

Transmission Control Module (TCM) (MN5)
