Harness Routing Views

Harness Routing Views

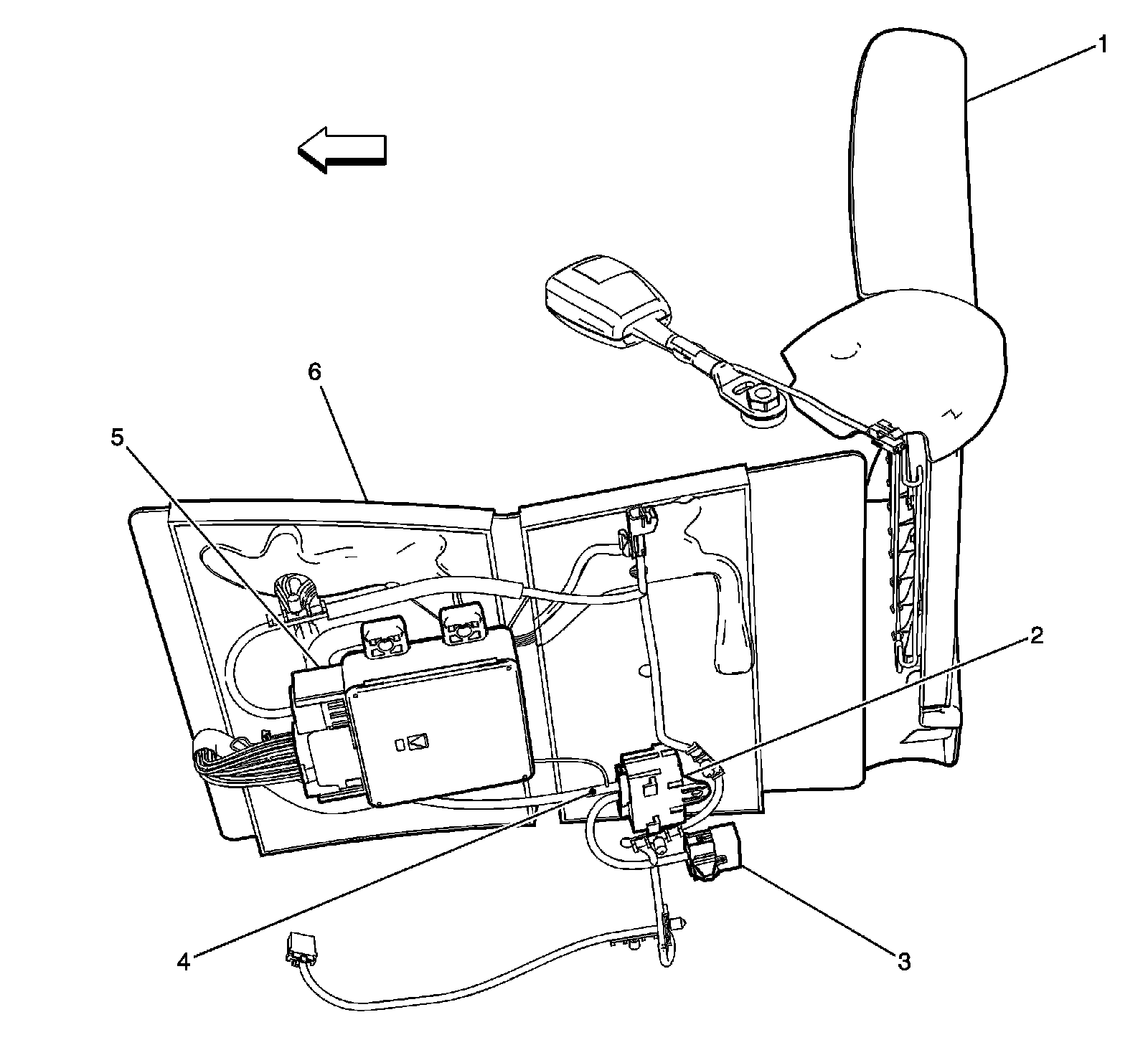

Underneath Front Passenger Seat




1 - Passenger Seat
2 - Heated Seat Control Module - Passenger (KA1)
3 - X307 (KA1)
4 - J305 (KA1)
5 - Inflatable Restraint Passenger Presence System (PPS) Module
6 - Heated Seat Element - Passenger Cushion (KA1)
