Home >> Pontiac >> 2009 >> G6 L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams

Keyless Entry Receiver: Diagrams

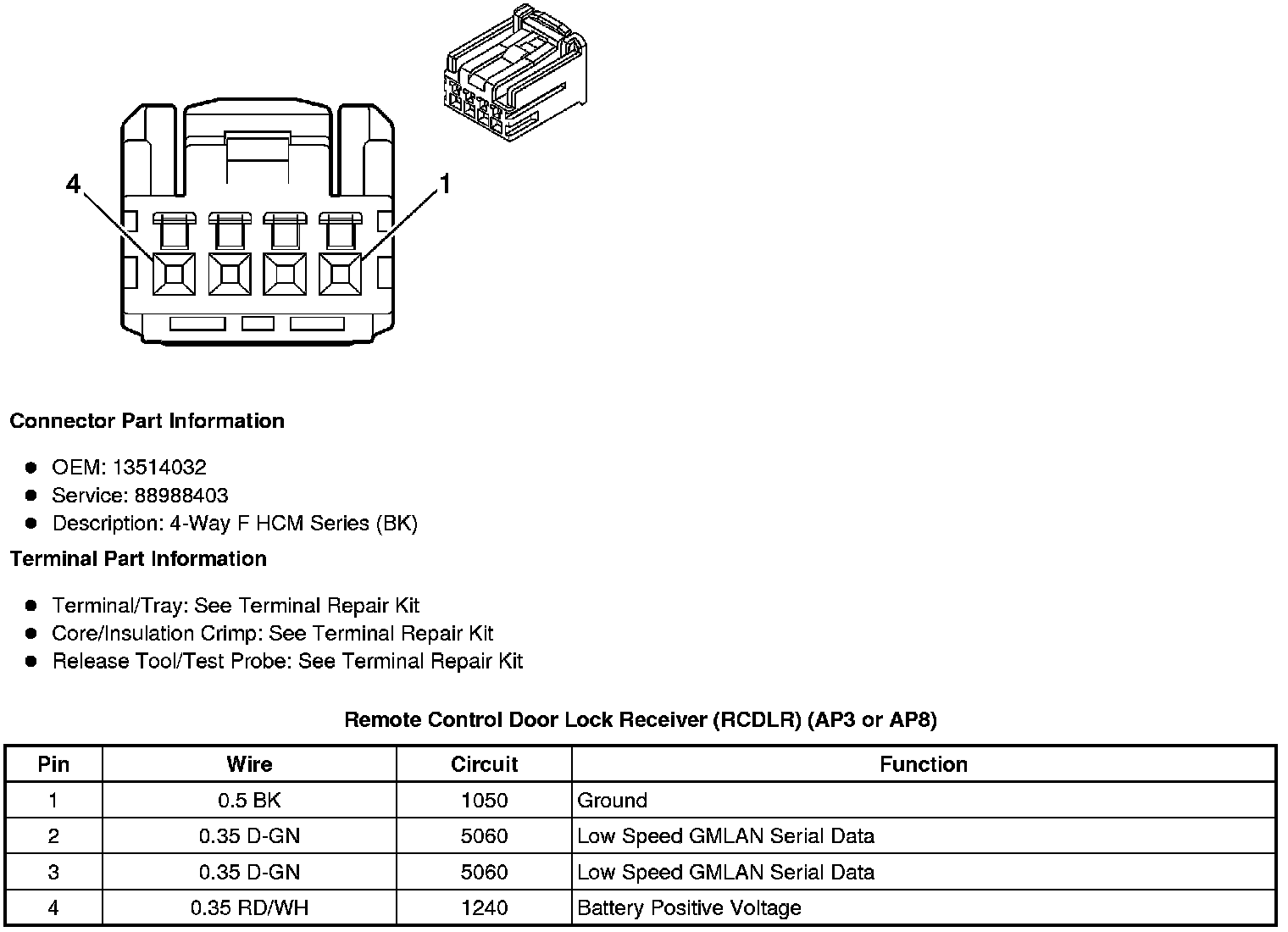

Component Connector End Views

Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
