Home >> Pontiac >> 2009 >> G5 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Diagrams

Coolant Temperature Sensor/Switch (For Computer): Diagrams

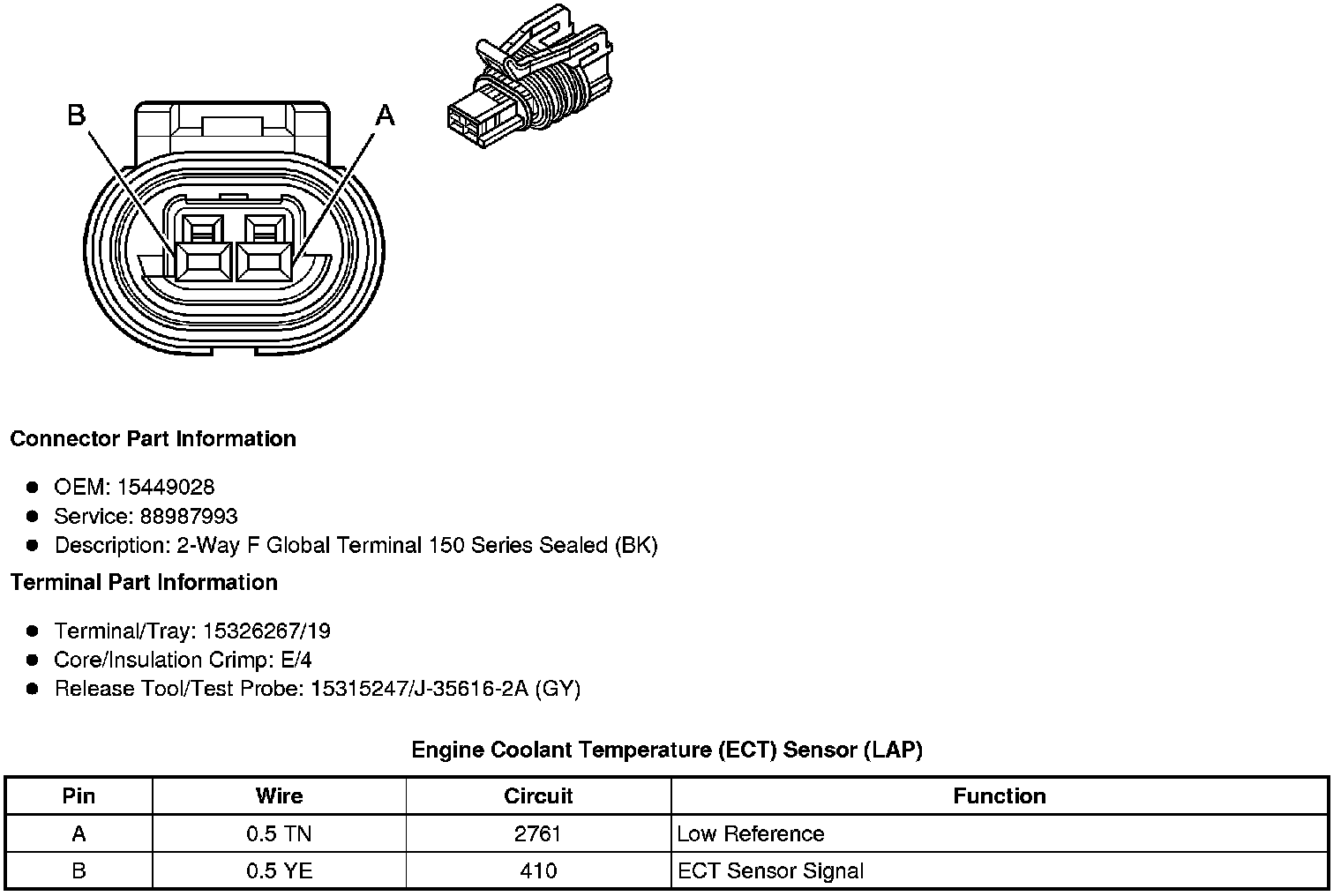

Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (LAP)
