Vehicle Speed Sensor: Diagrams




Component Connector End Views

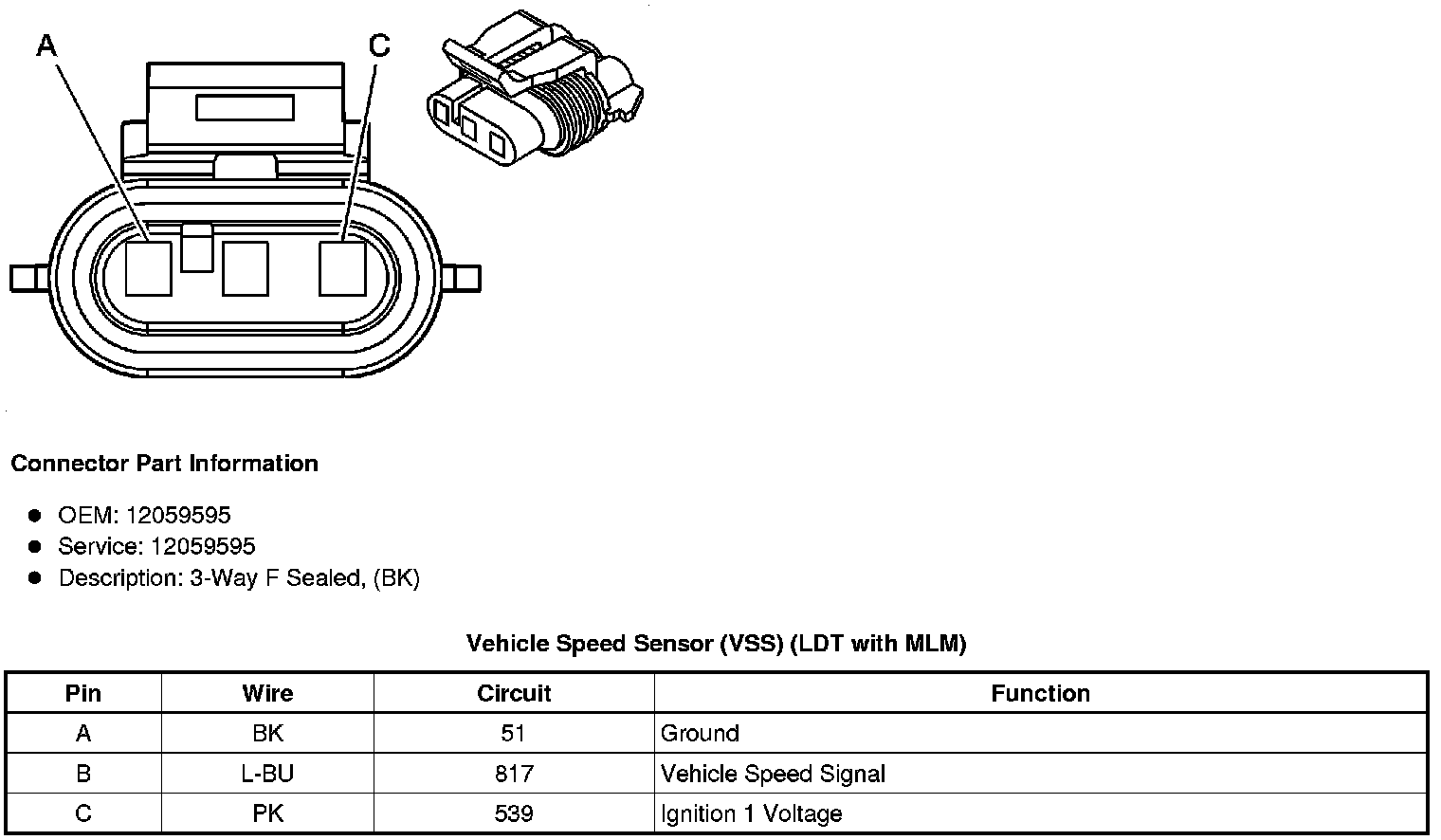

Vehicle Speed Sensor (VSS) (LDT with MLM)






Vehicle Speed Sensor (VSS) (LXV with MLM)

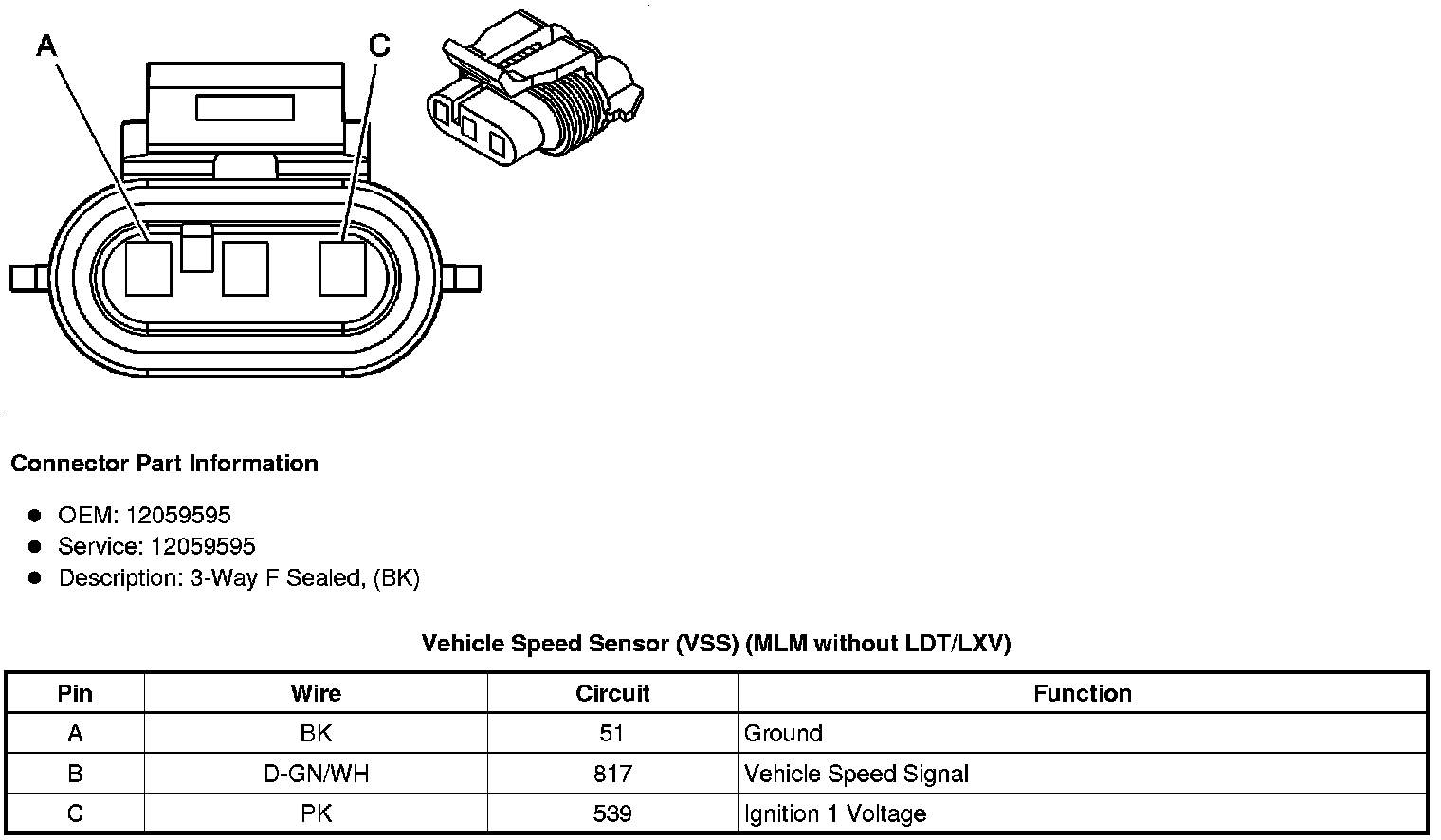

Vehicle Speed Sensor (VSS) (MLM without LDT/LXV)
