Coolant Temperature Sensor/Switch (For Computer): Diagrams




Component Connector End Views

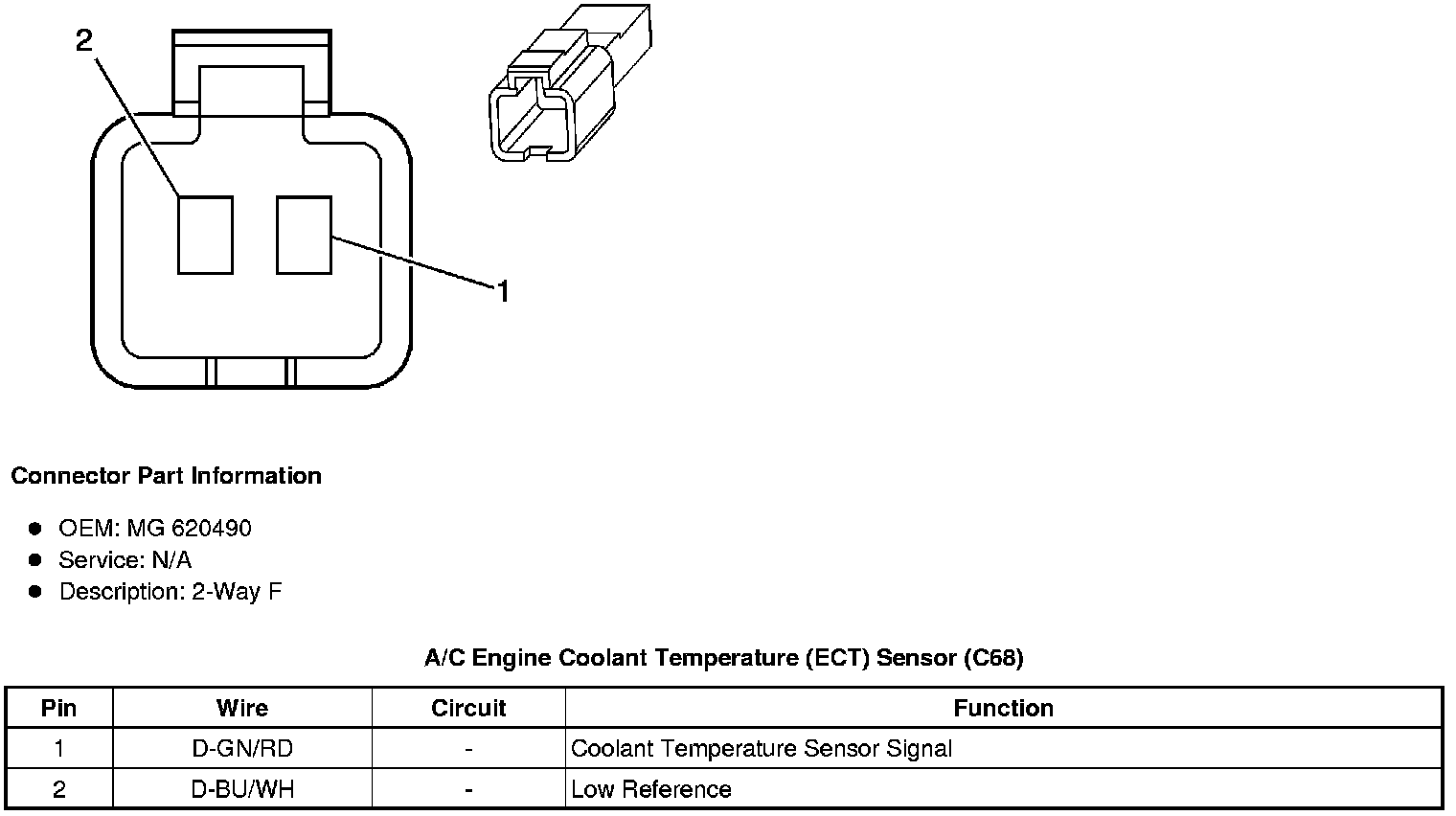

A/C Engine Coolant Temperature (ECT) Sensor (C68)

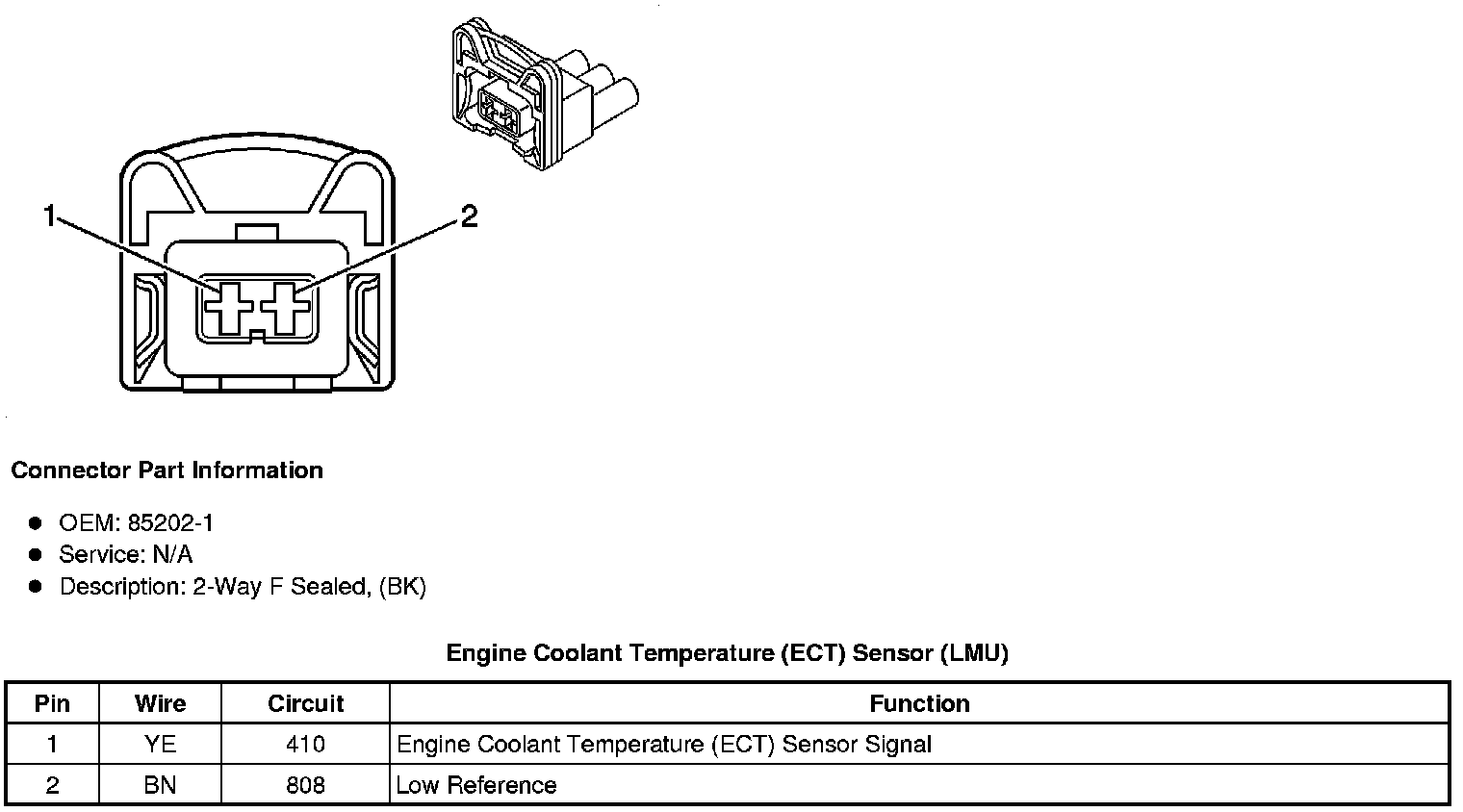

Engine Coolant Temperature (ECT) Sensor (LMU)

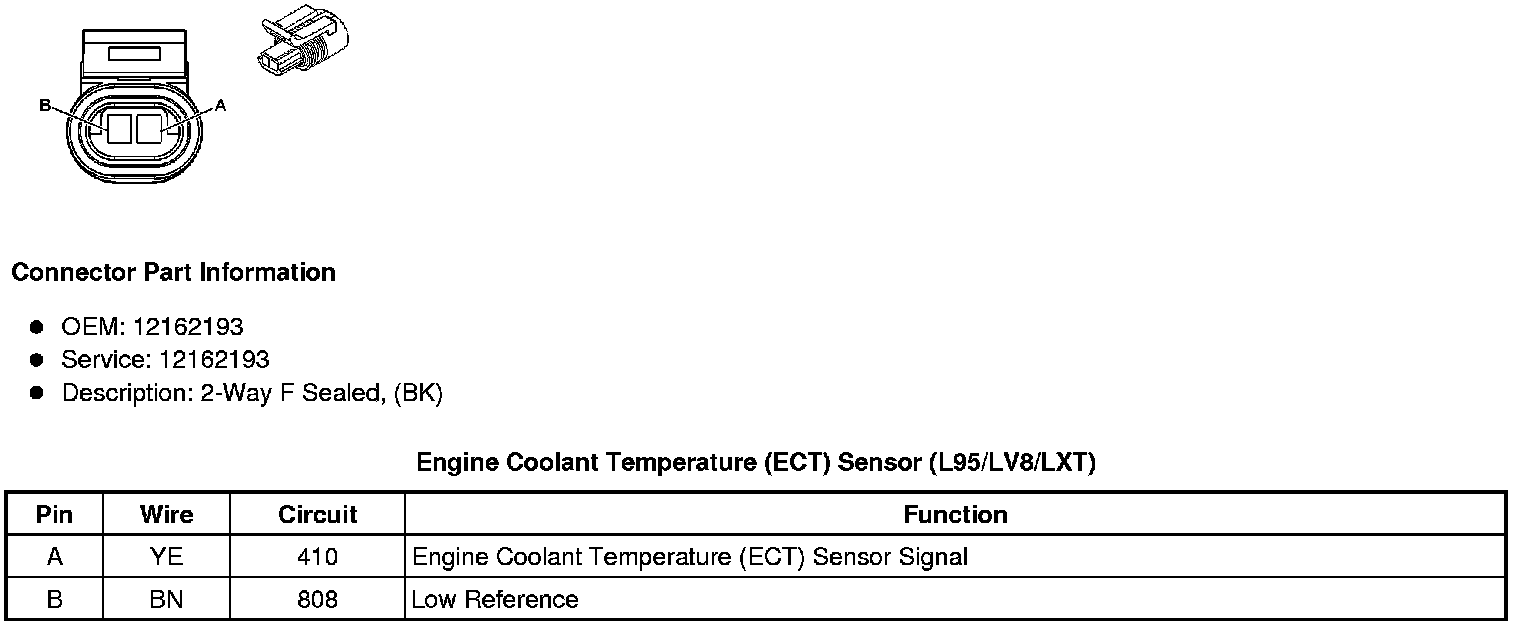

Engine Coolant Temperature (ECT) Sensor (L95/LV8/LXT)

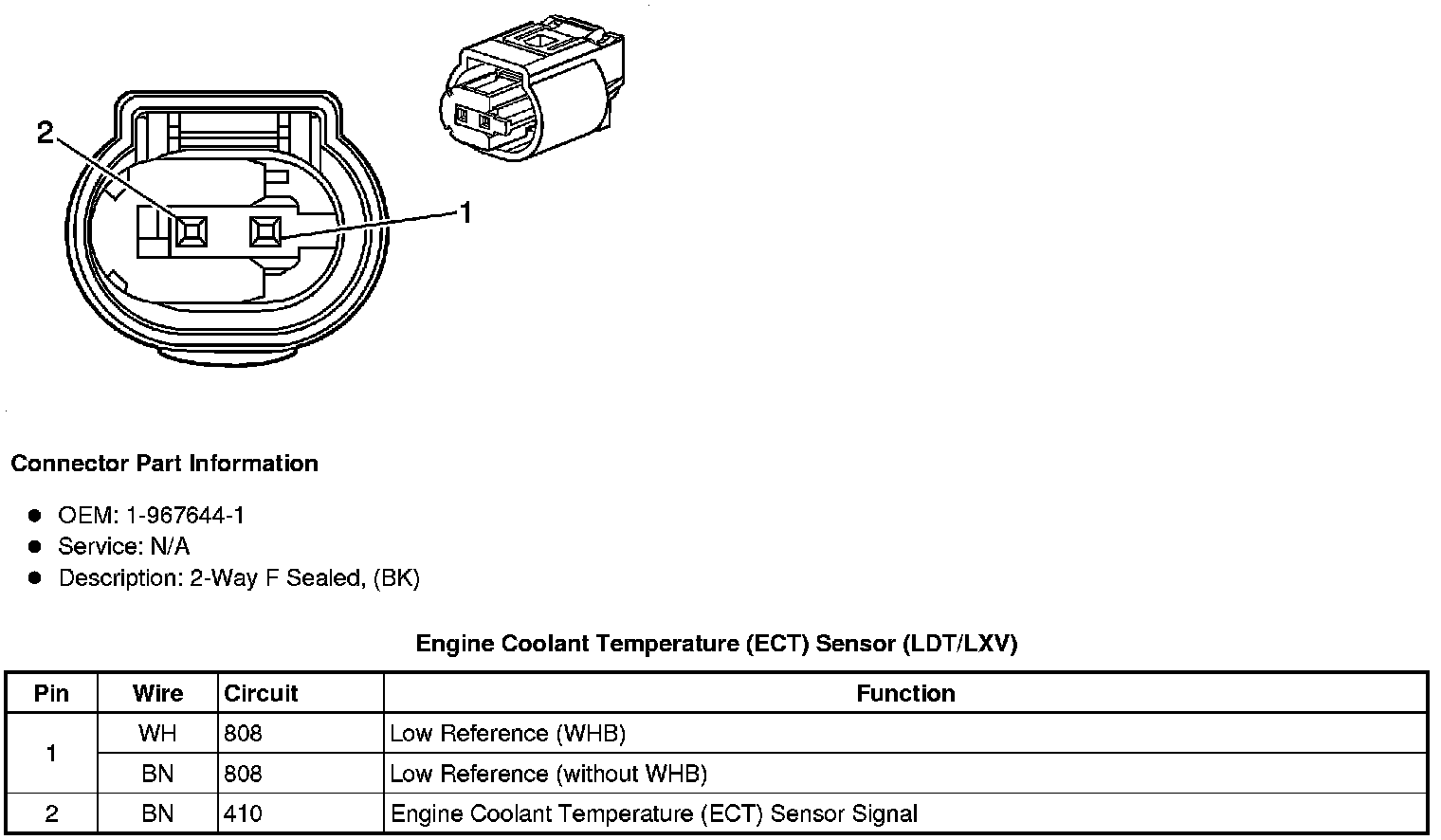

Engine Coolant Temperature (ECT) Sensor (LDT/LXV)

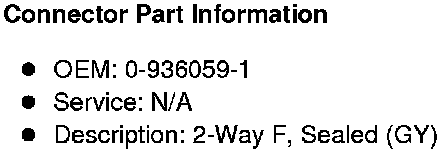

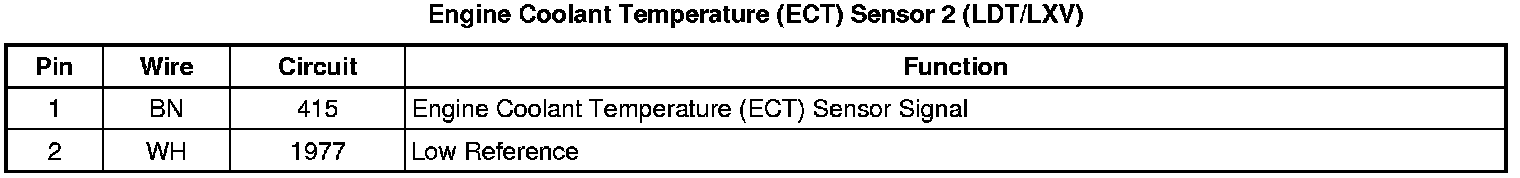

Engine Coolant Temperature (ECT) Sensor 2 (LDT/LXV)
