Accelerator Pedal Position Sensor: Diagrams

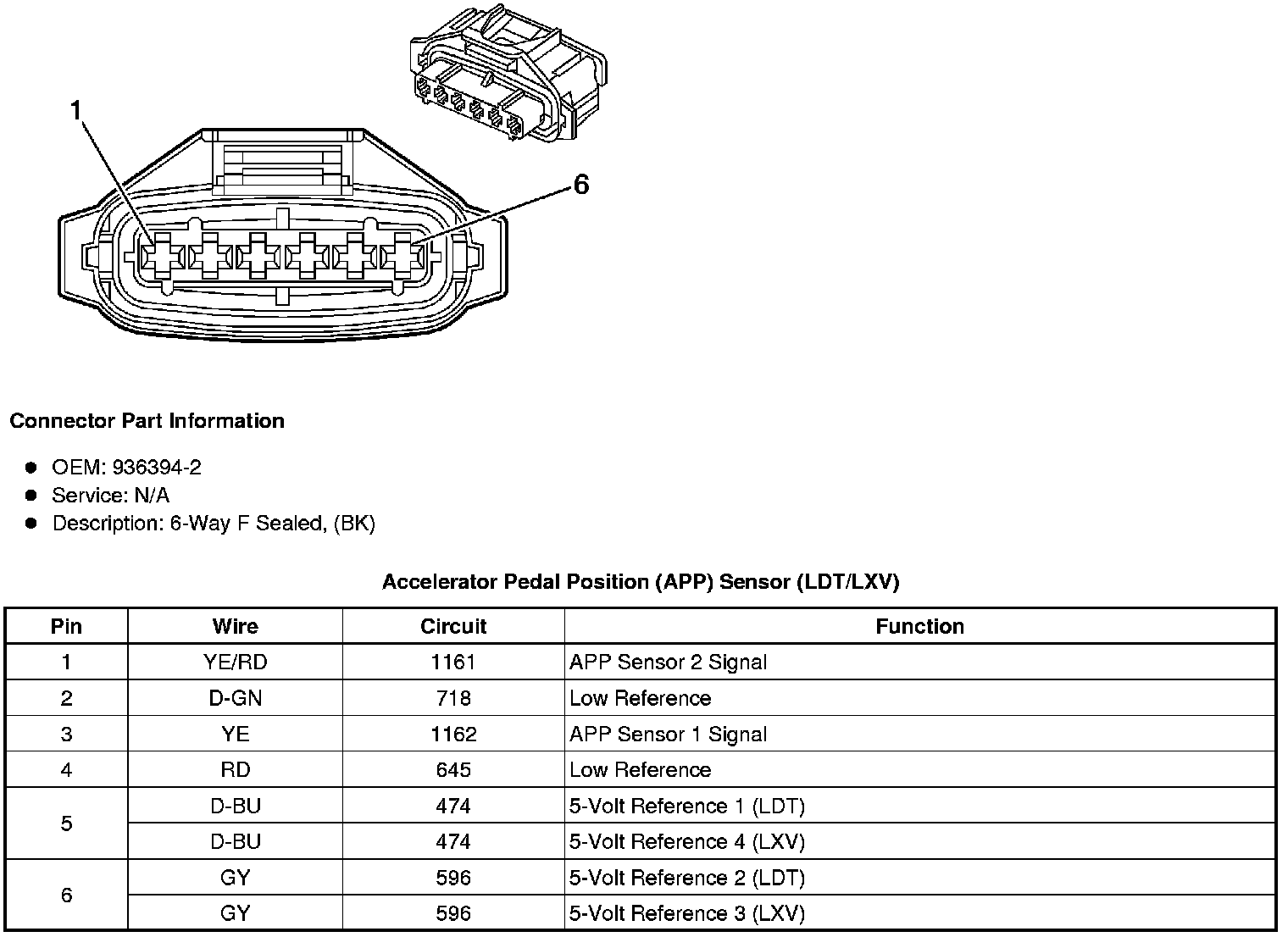

Component Connector End Views

Accelerator Pedal Position (APP) Sensor (LDT/LXV)
