Compressor Control Valve Assembly Install




Compressor Control Valve Assembly Install





Tools Required

J 5403 Snap Ring Pliers

1. Install the control valve assembly.

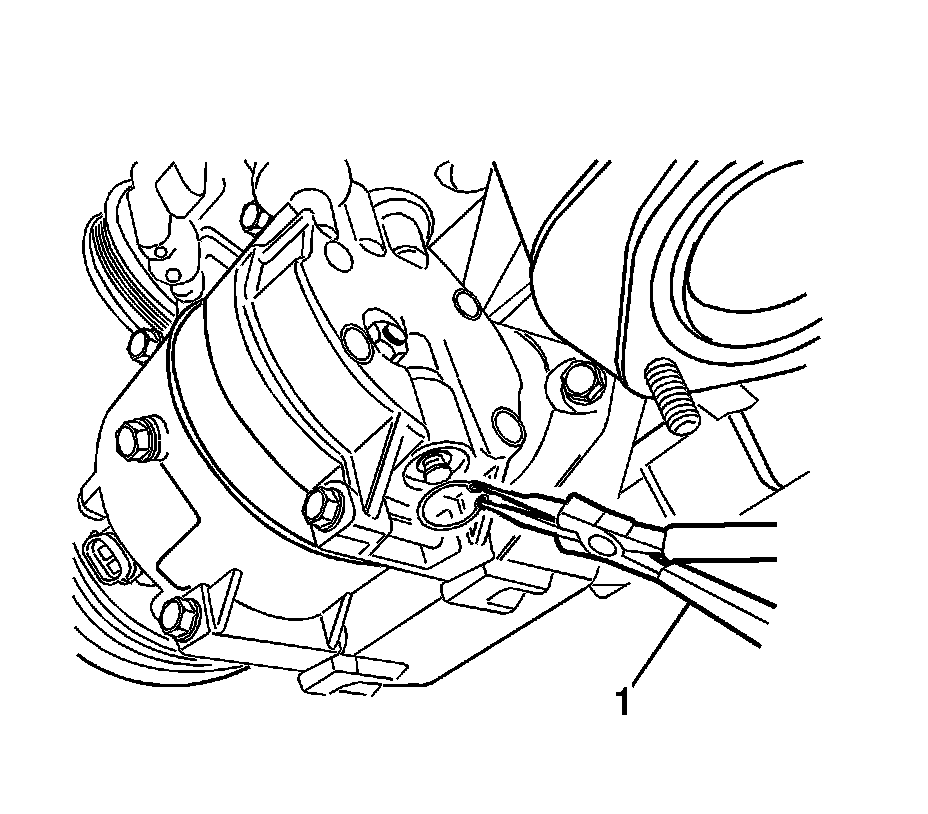

2. Install the control valve retaining ring using J 5403 (1).
3. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Service and Repair).
