Control Module, A/T

Component Connector End Views

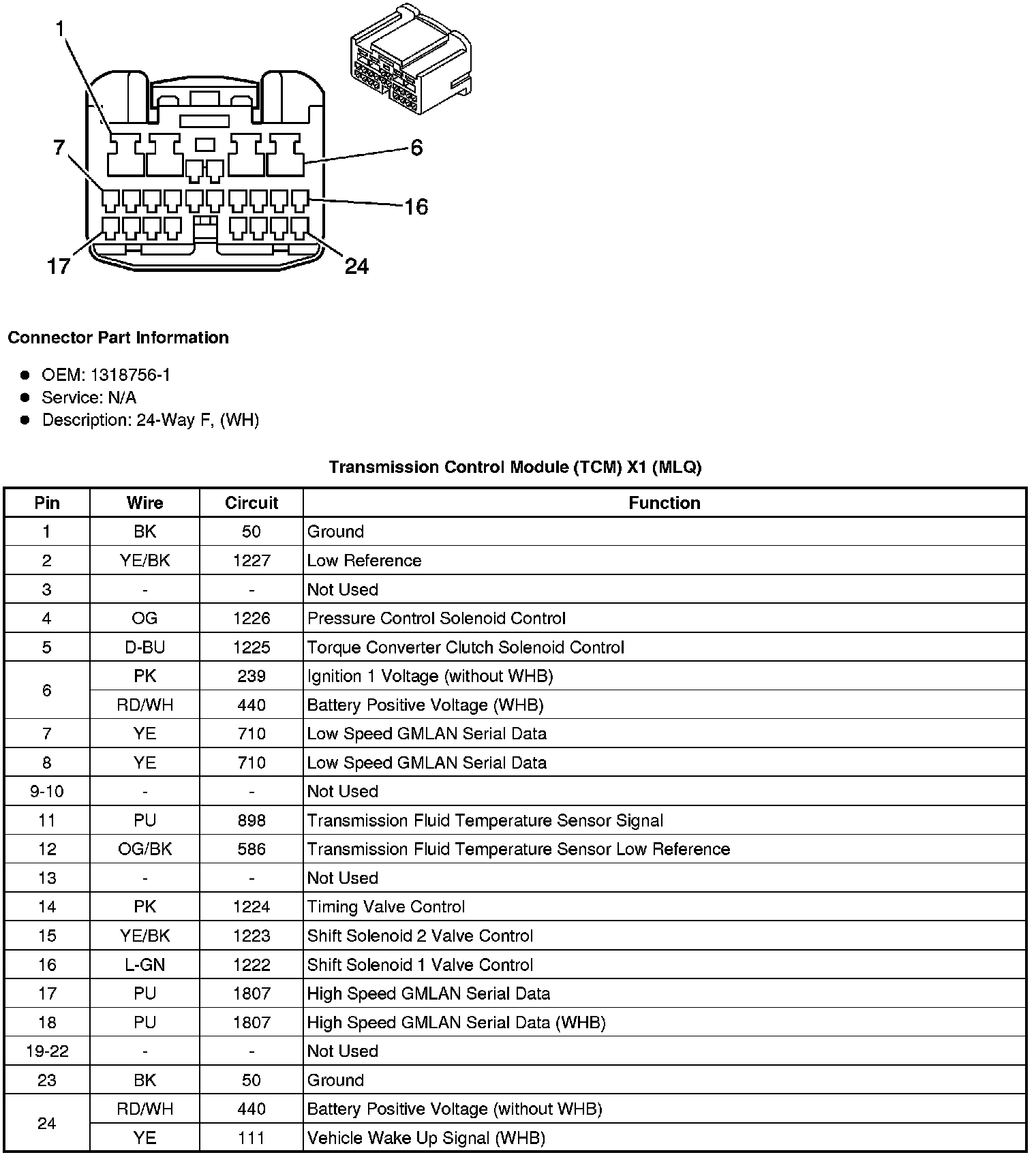

Transmission Control Module (TCM) X1 (MLQ)

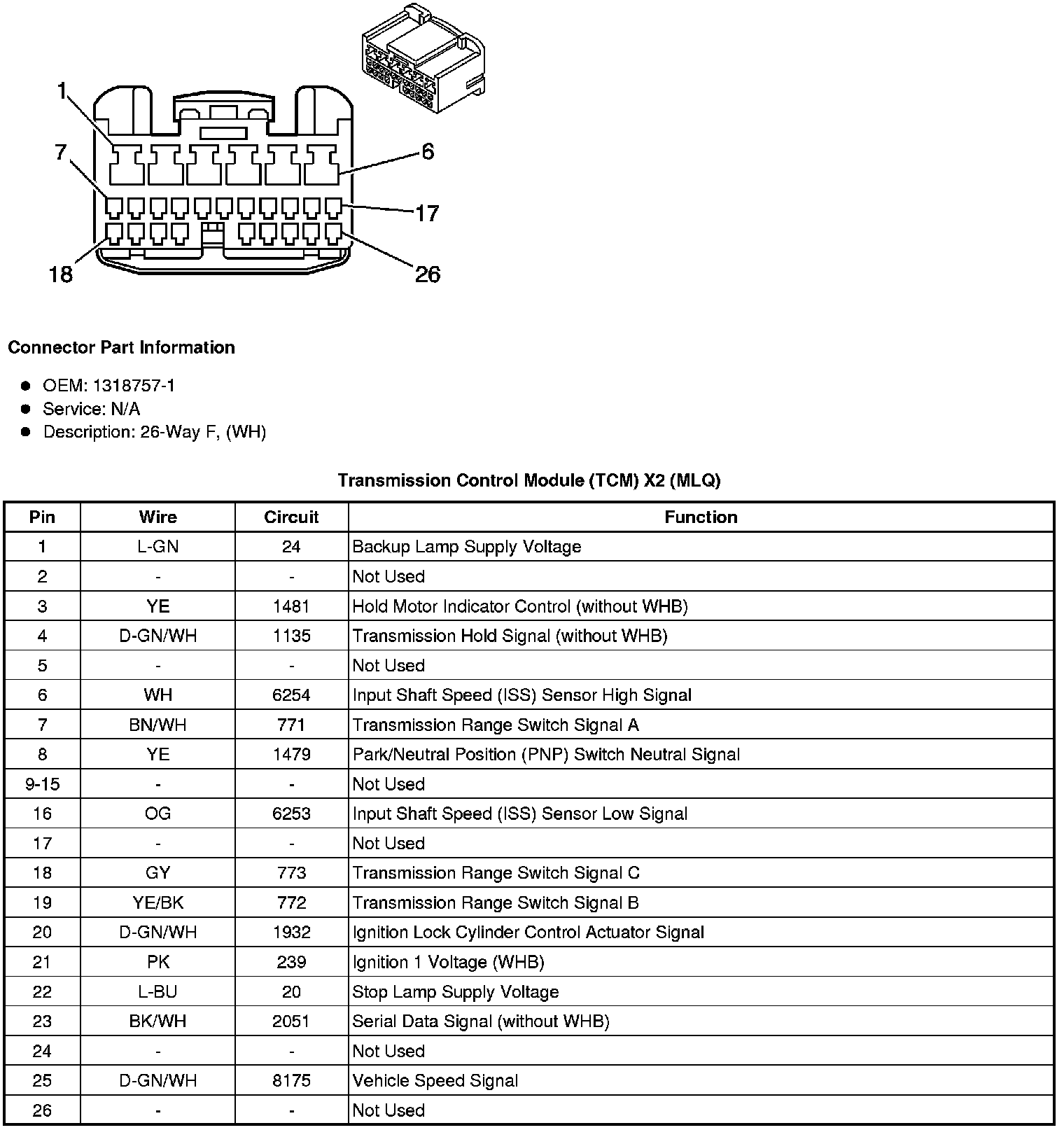

Transmission Control Module (TCM) X2 (MLQ)
