Air Bag Control Module
Component Connector End Views

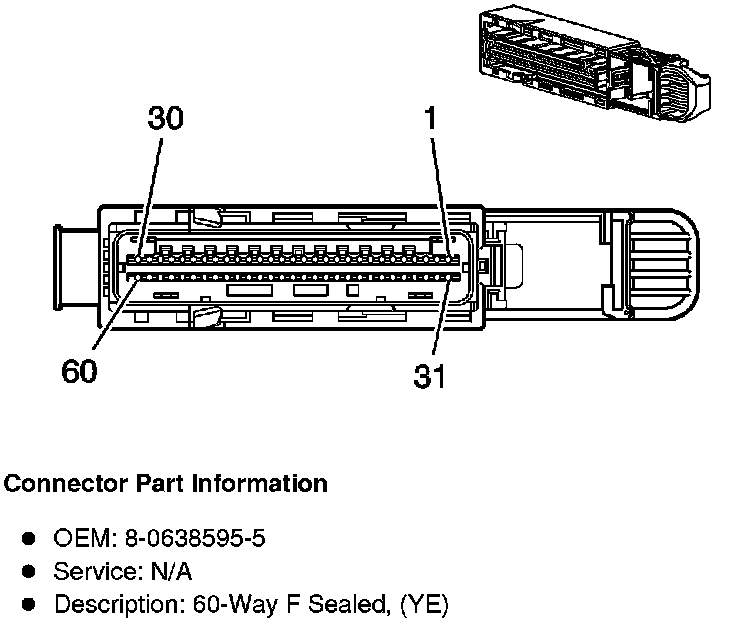

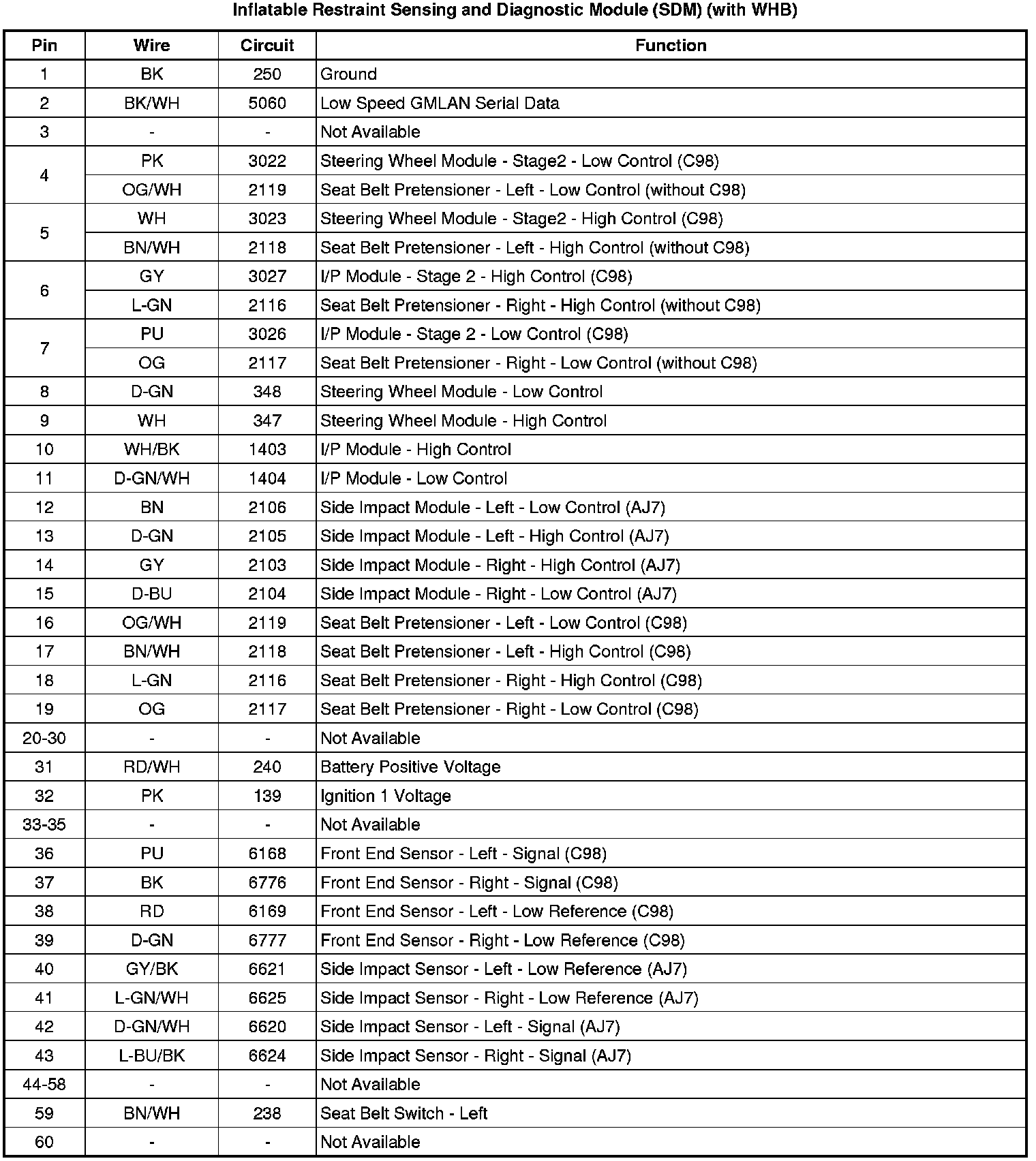

Inflatable Restraint Sensing and Diagnostic Module (SDM) (with WHB)

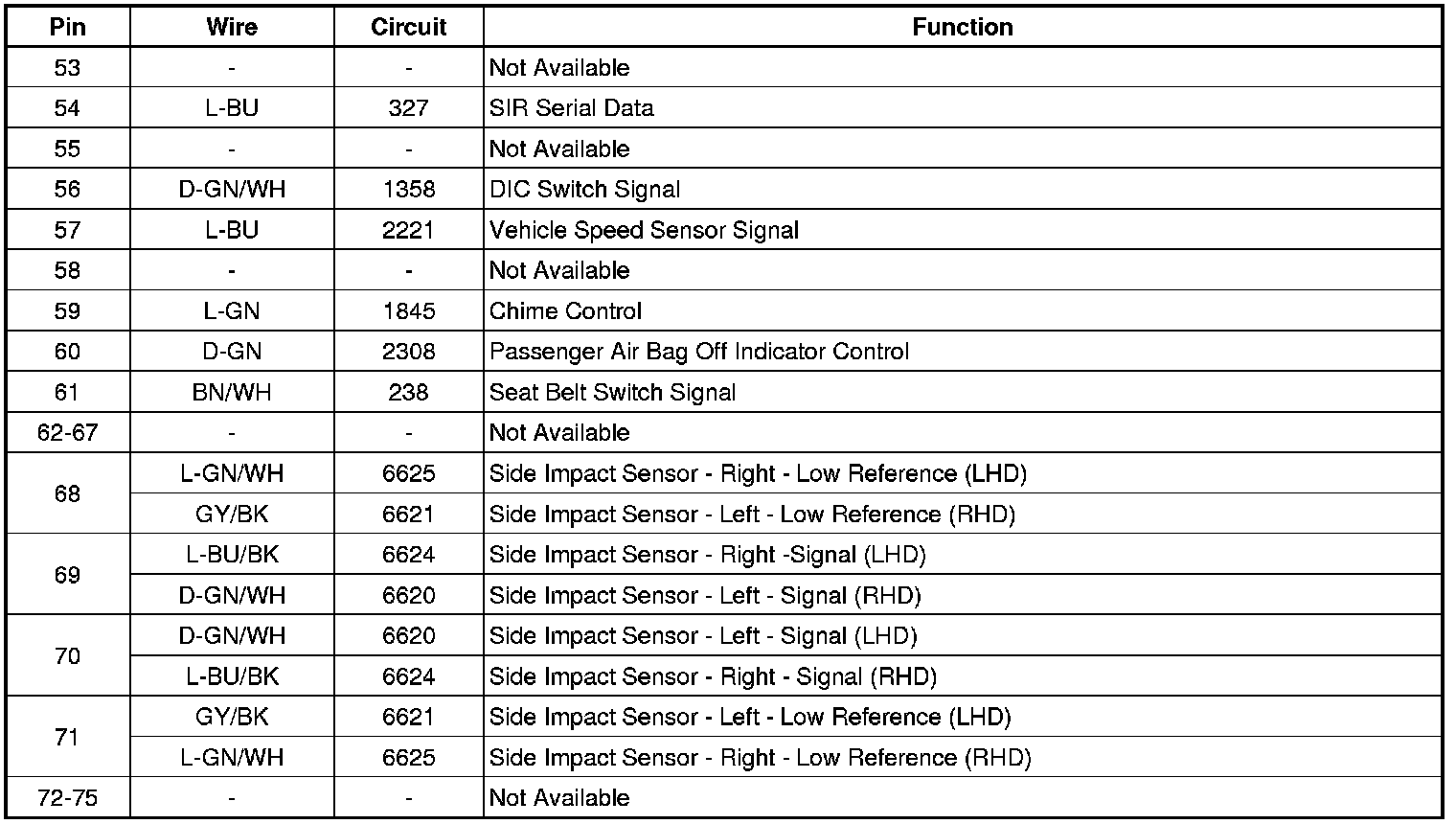

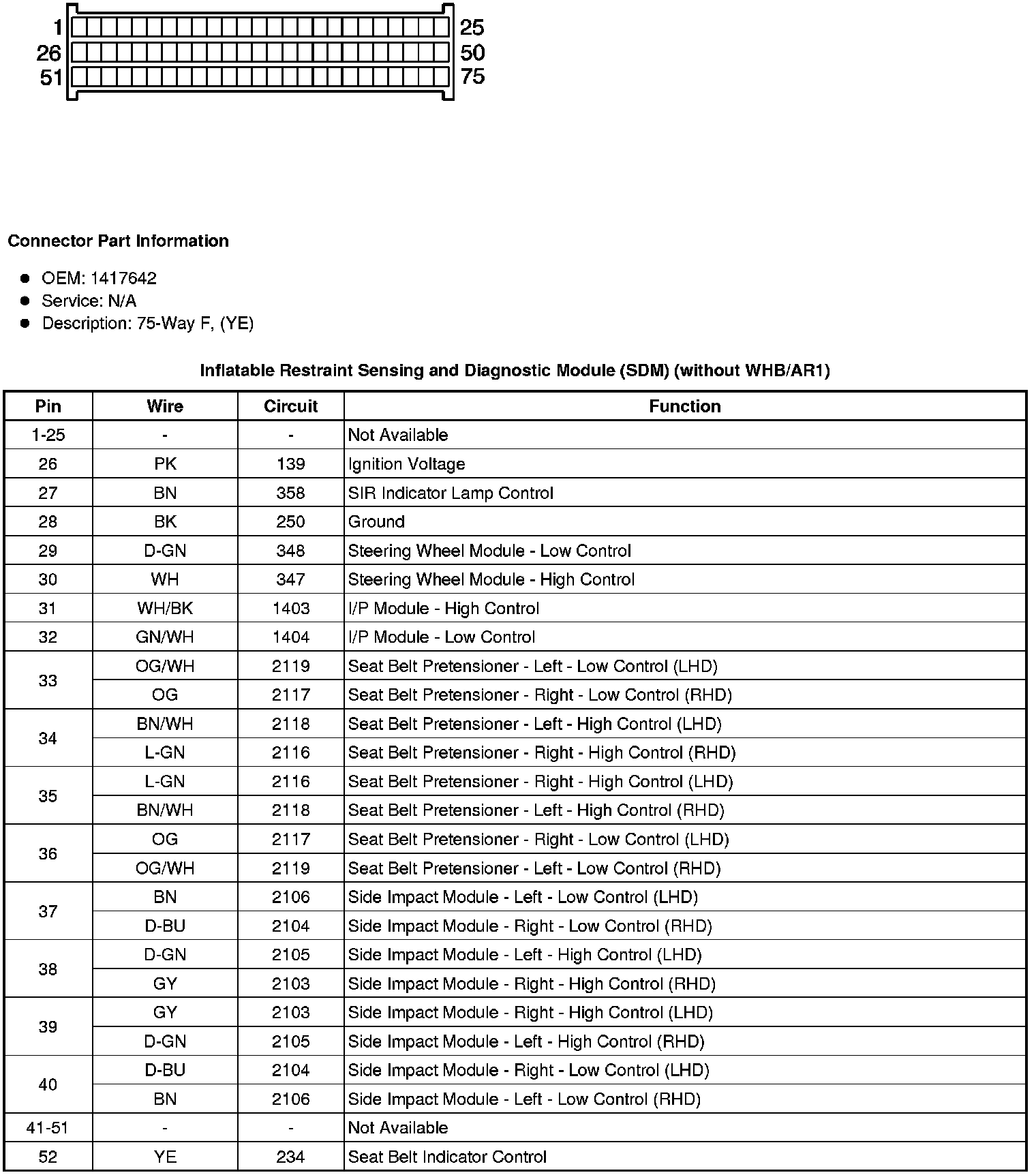

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without WHB/AR1)
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) (with WHB)
Inflatable Restraint Sensing and Diagnostic Module (SDM) (without WHB/AR1)
