Shift Interlock Control Module: Locations

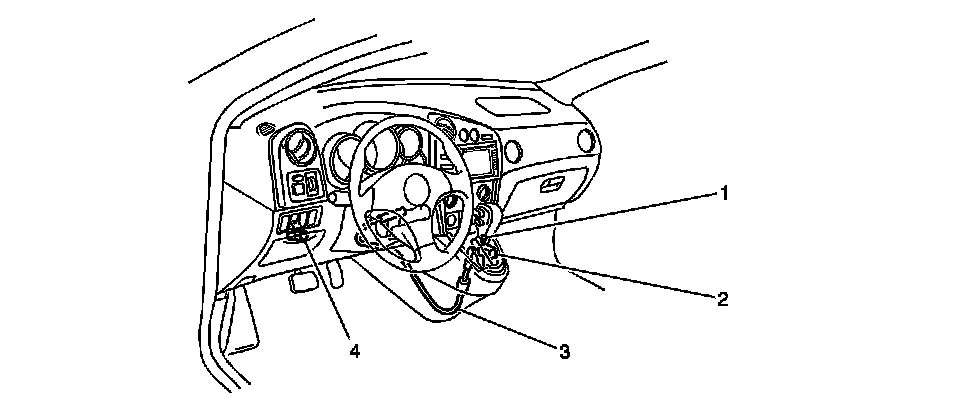

Shift Lock Control Component Views

Shift Lock Control

Shift Lock Control:




1 - Overdrive Switch
2 - Shift Lock Solenoid and Shift Lock Control Module
3 - Shift Lock Cable
4 - Stop Lamp Switch
