Powertrain Control Module Connector End Views



Powertrain Control Module Connector End Views

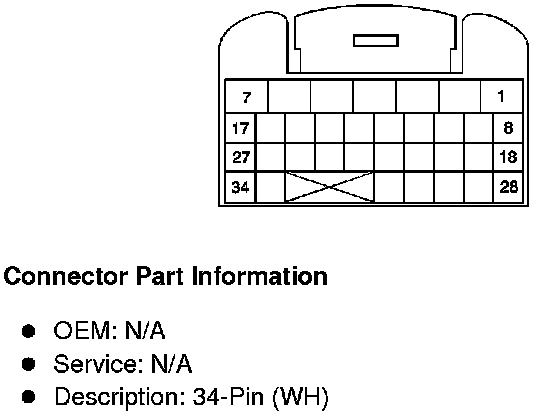

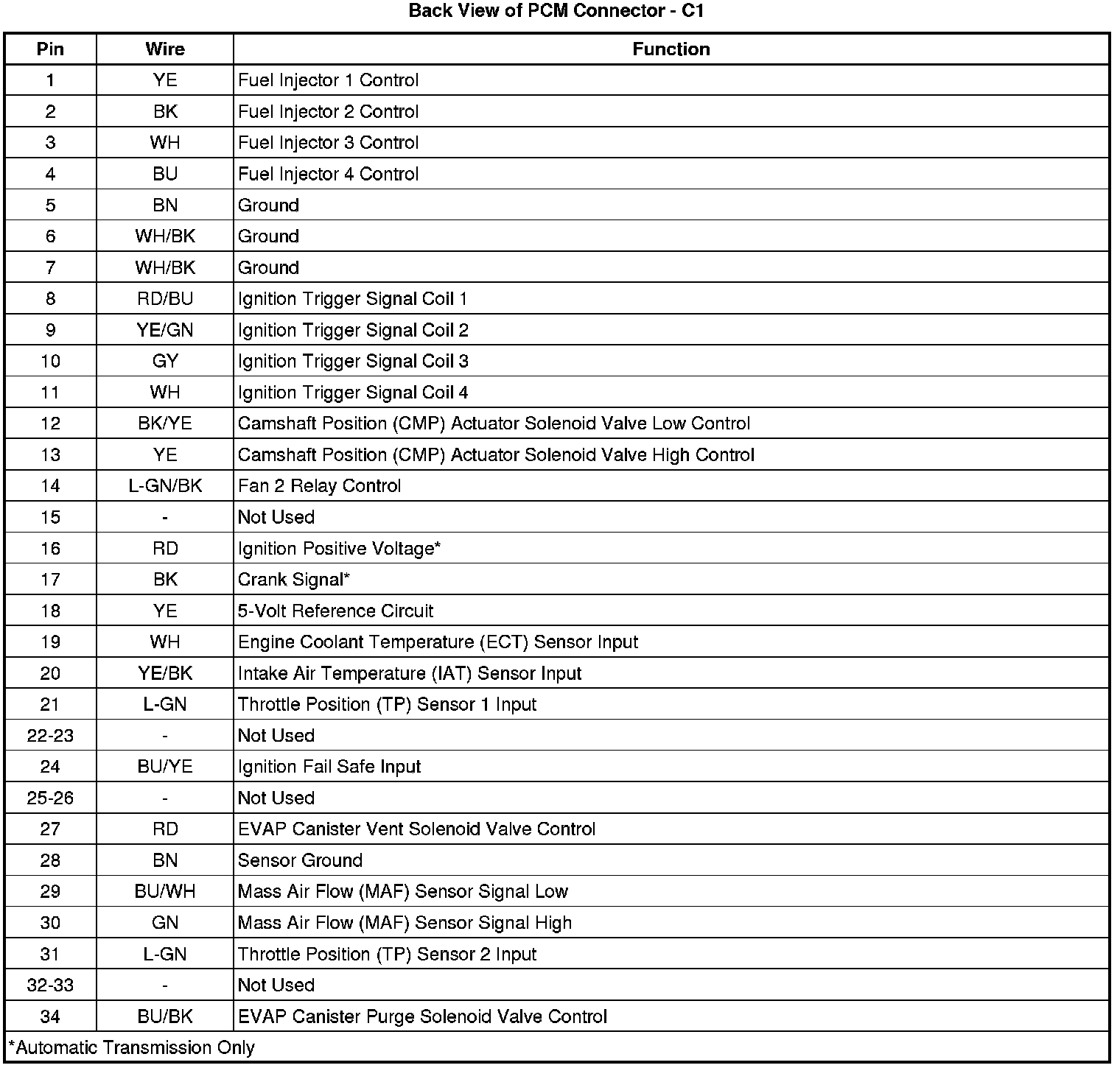

Back View of PCM Connector - C1

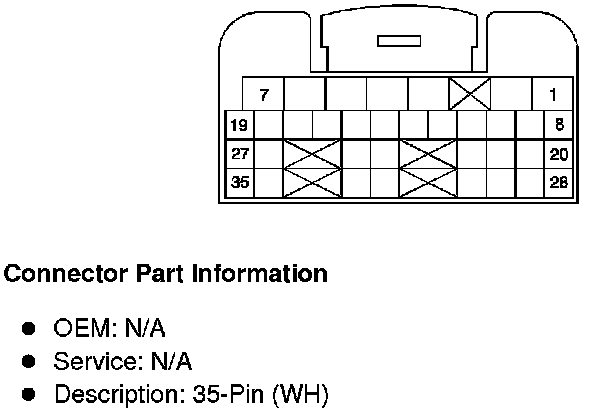

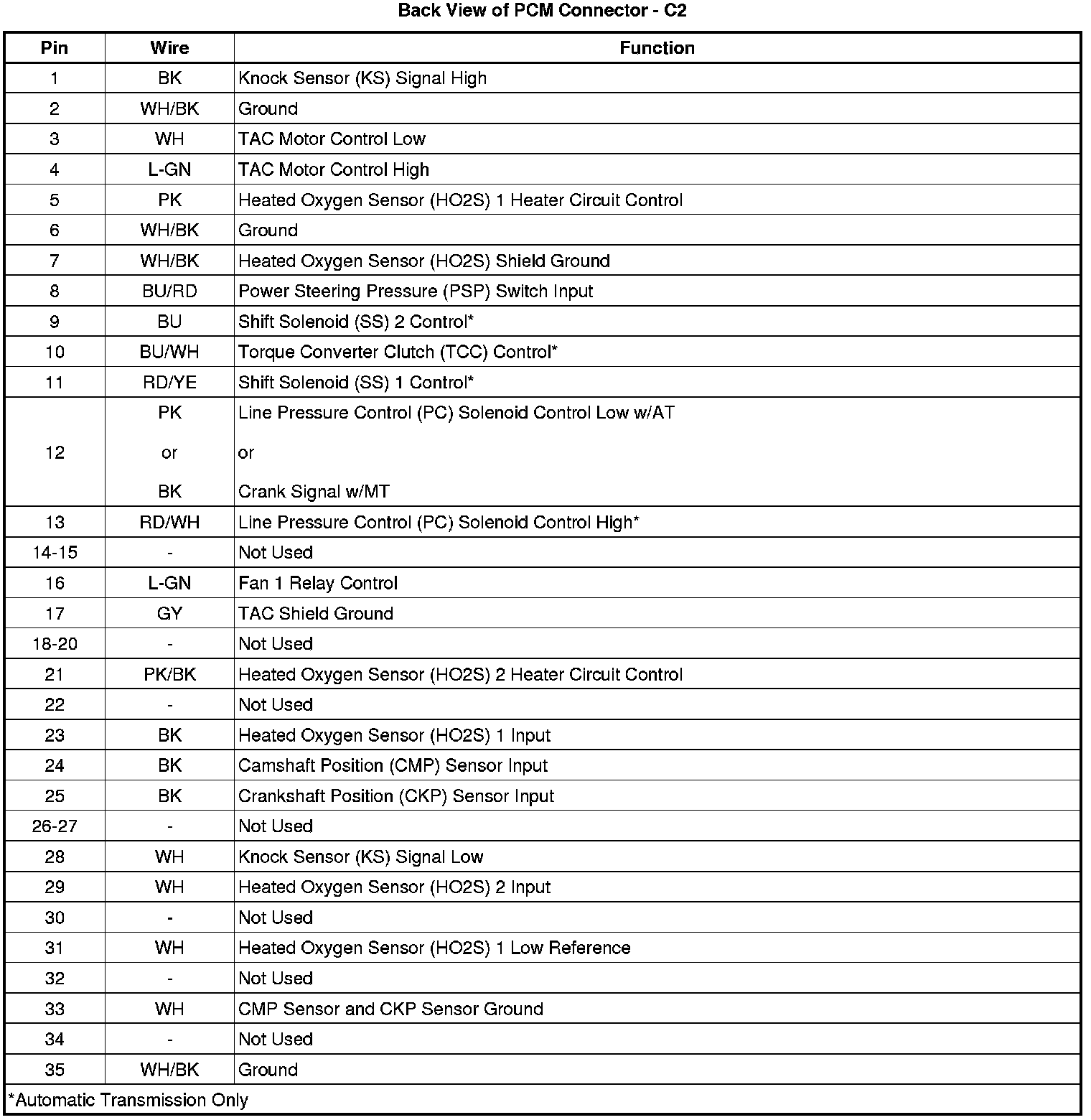

Back View of PCM Connector - C2

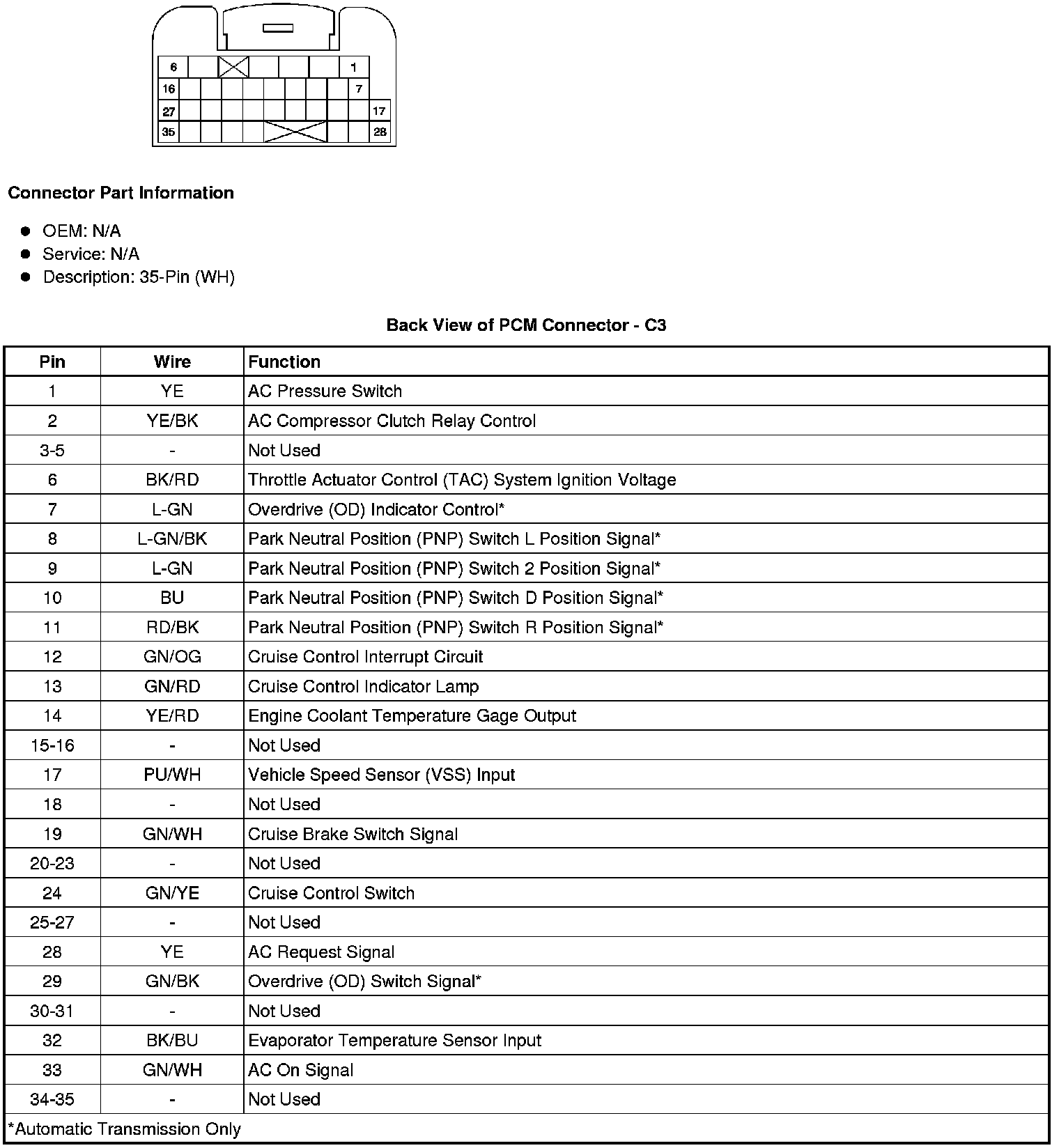

Back View of PCM Connector - C3

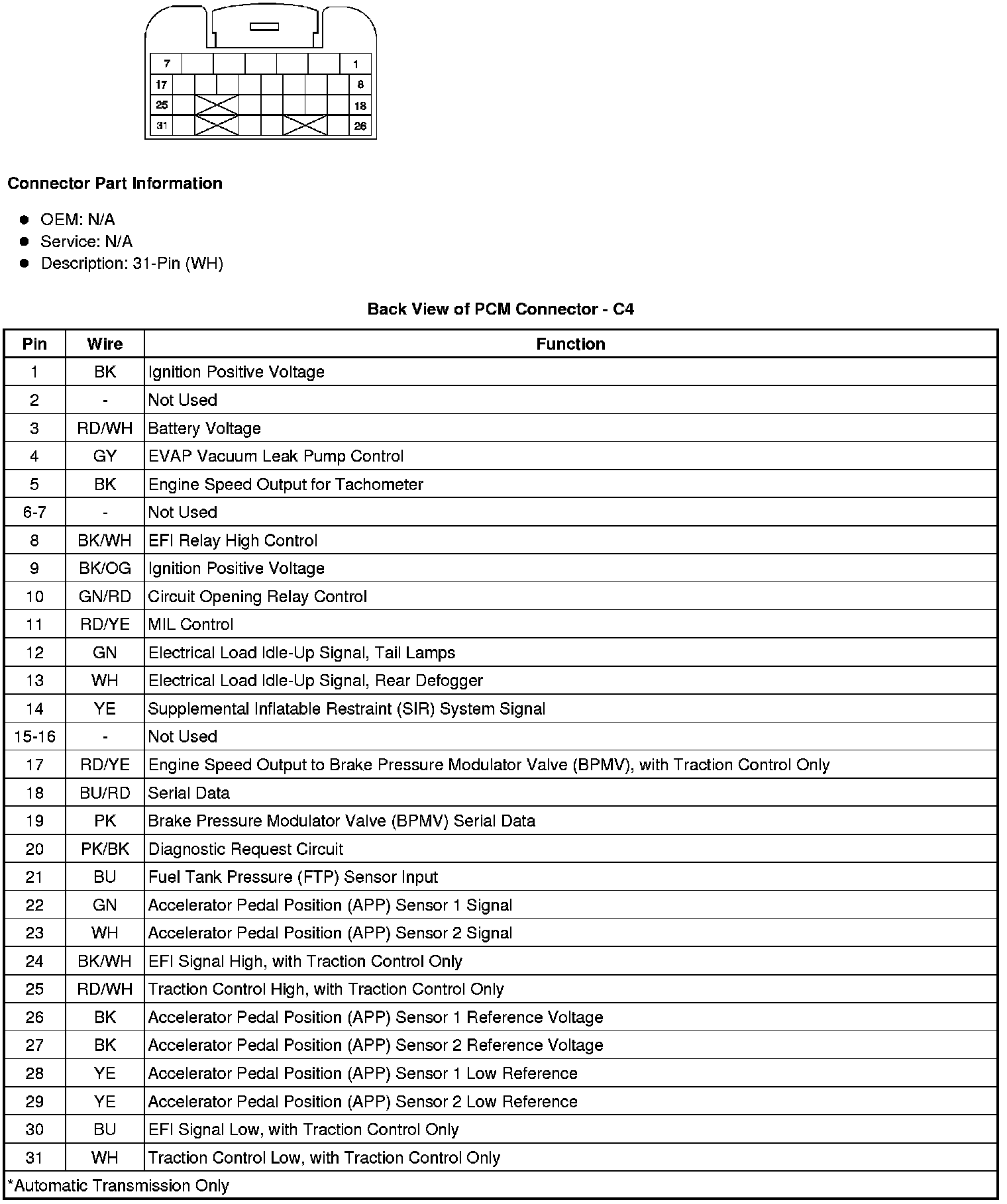

Back View of PCM Connector - C4
