Home >> Pontiac >> 2008 >> Vibe L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

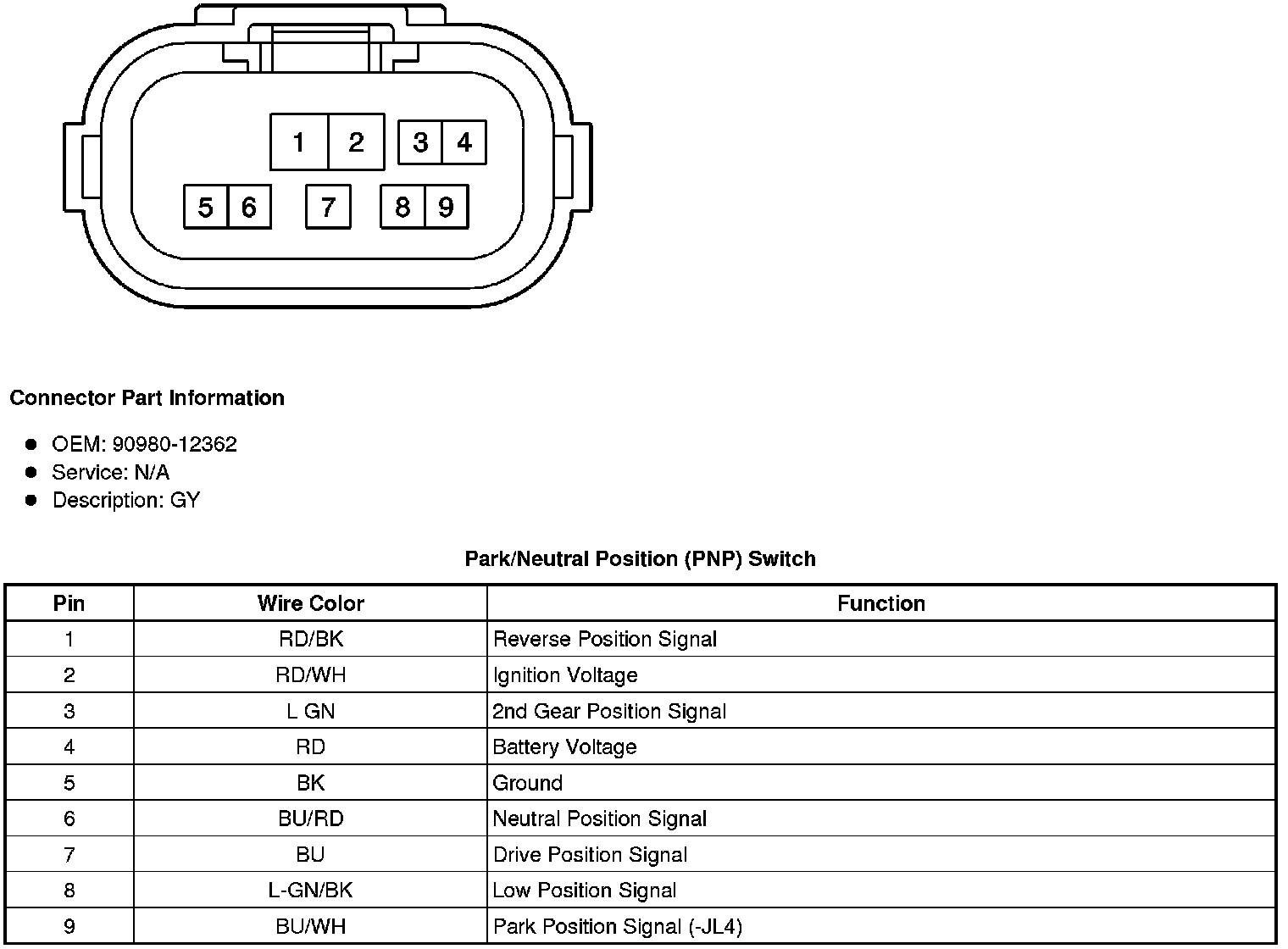

Automatic Transmission External Component Connector End Views

Park/Neutral Position (PNP) Switch
