Connector Views



Engine Controls Connector End Views

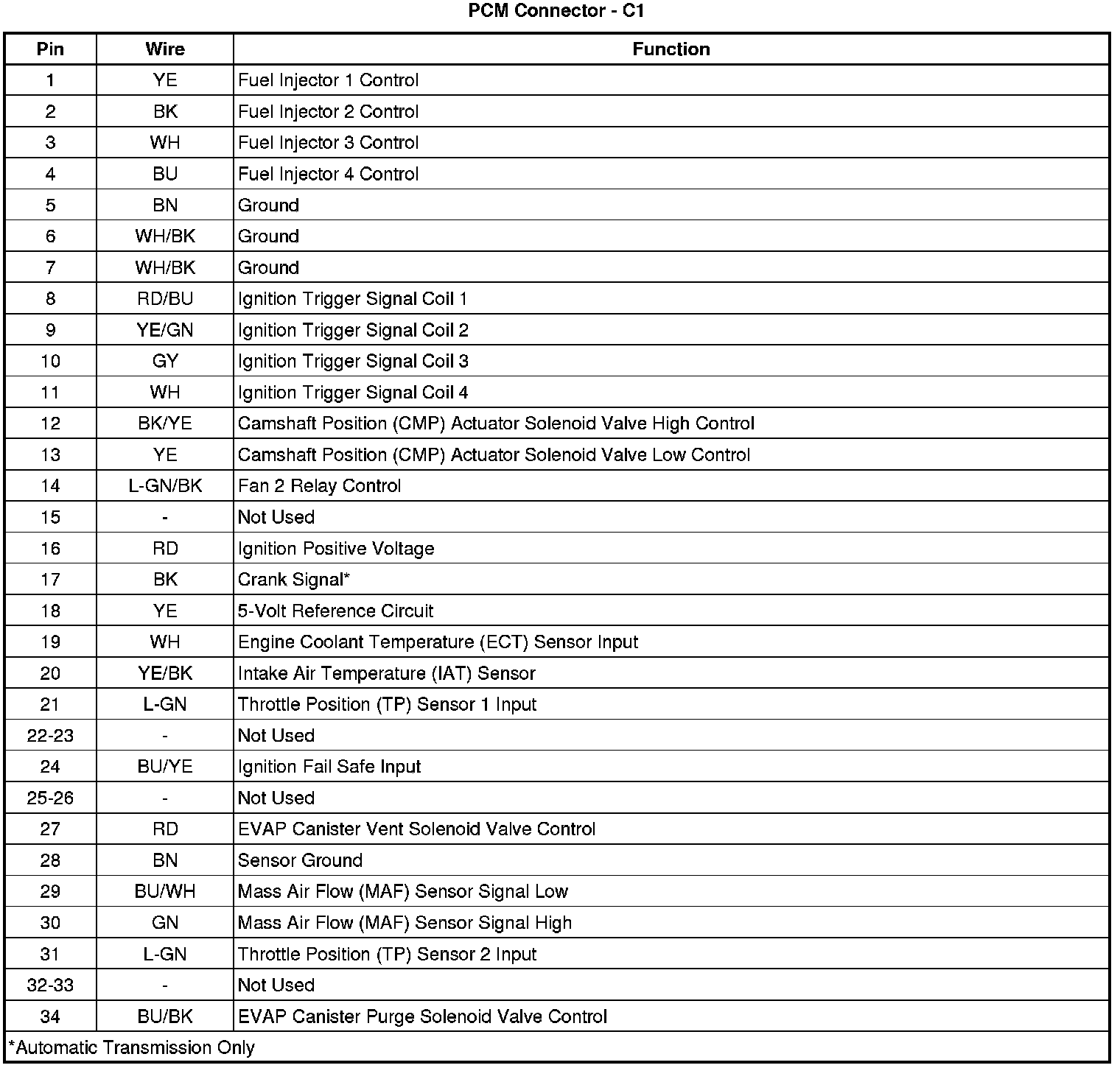

PCM Connector - C1

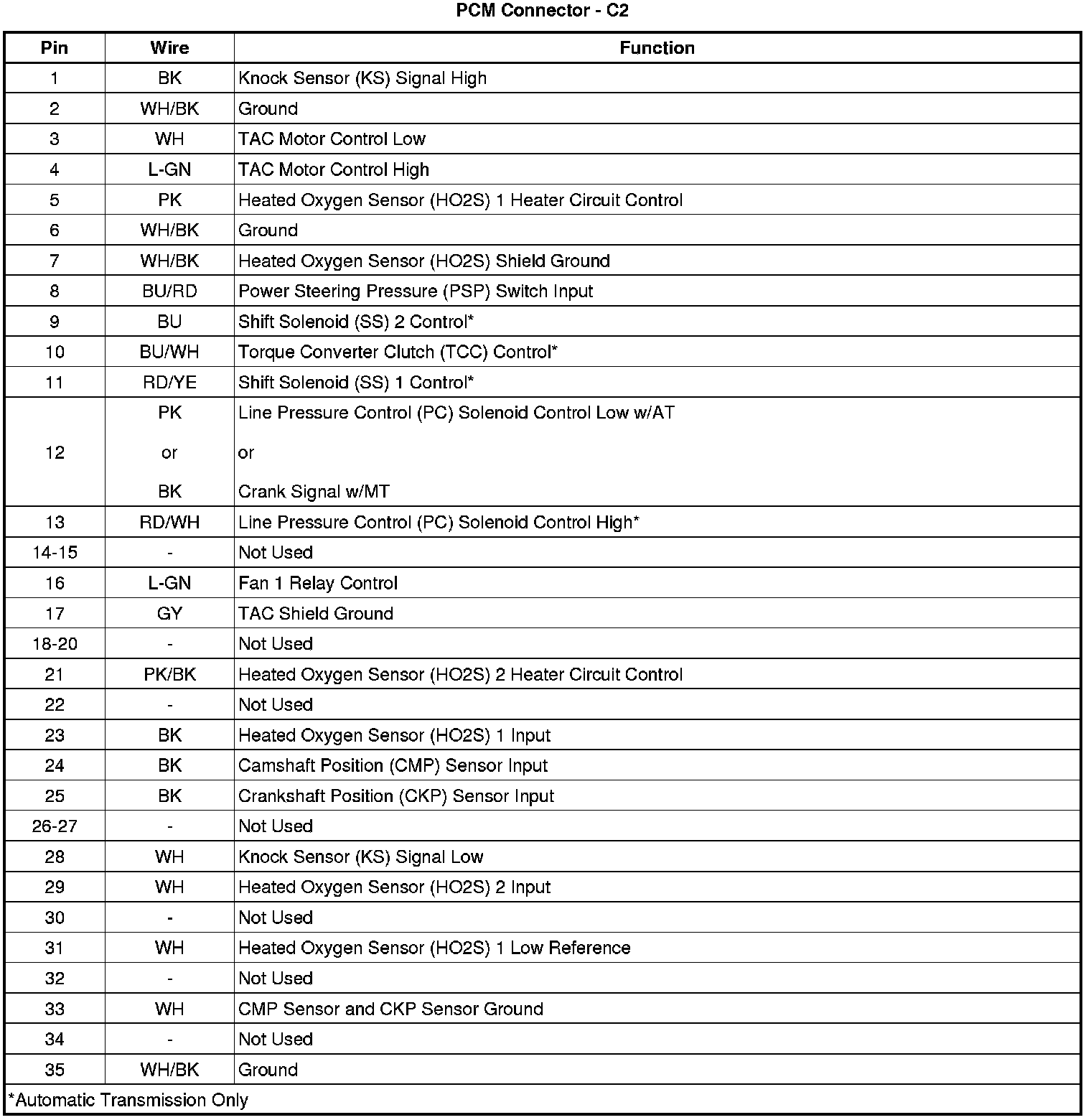

PCM Connector - C2

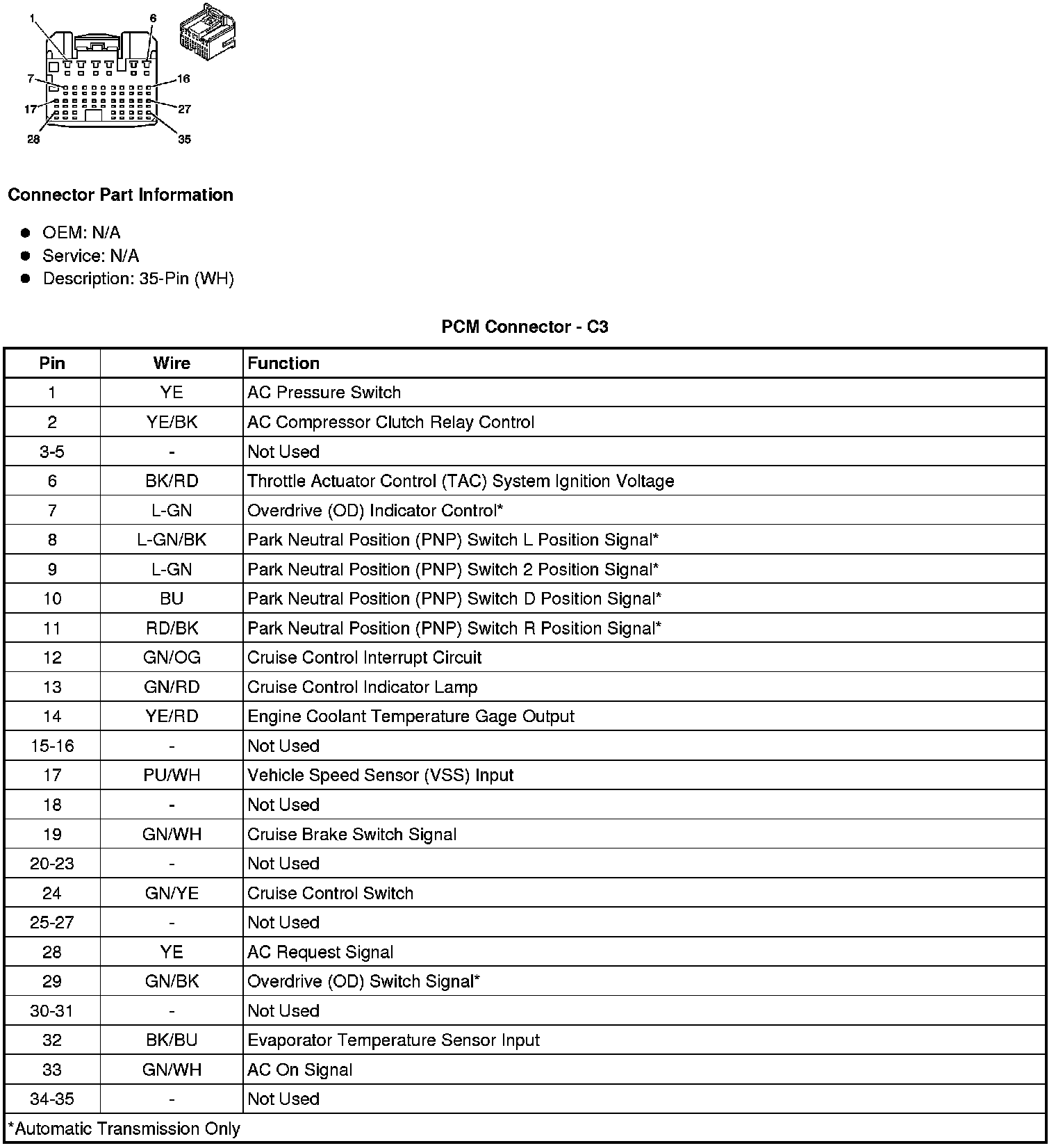

PCM Connector - C3

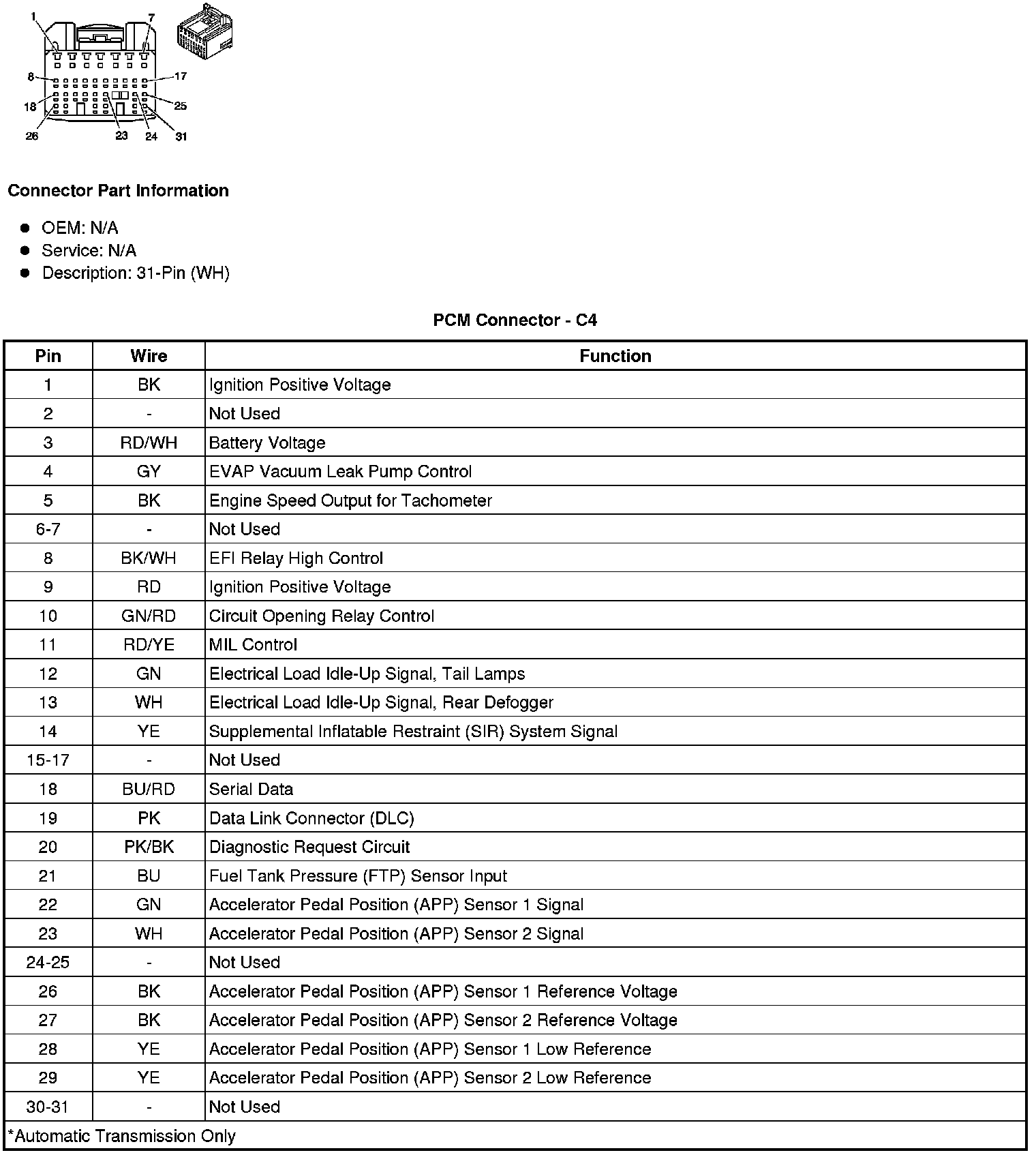

PCM Connector - C4








Powertrain Control Module Connector End Views

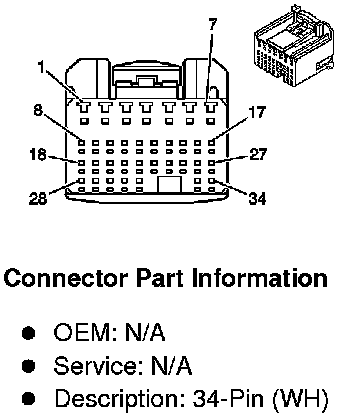

Back View of PCM Connector - C1

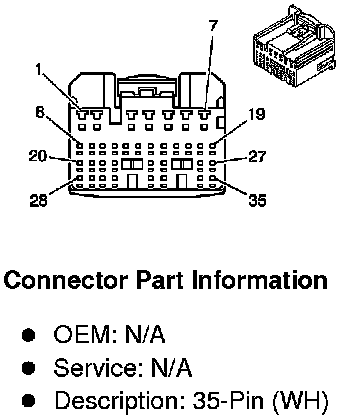

Back View of PCM Connector - C2









Back View of PCM Connector - C3






Back View of PCM Connector - C4
