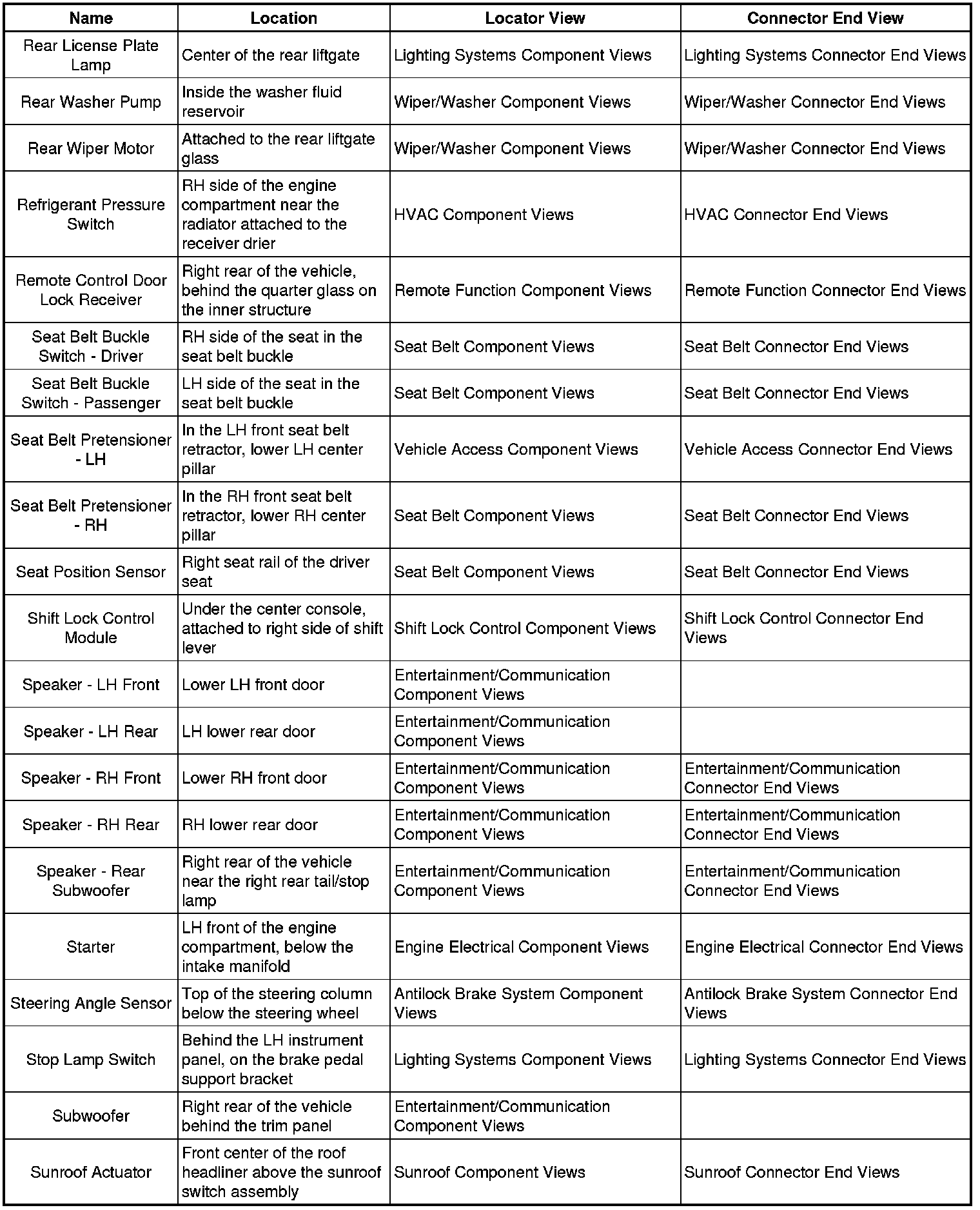

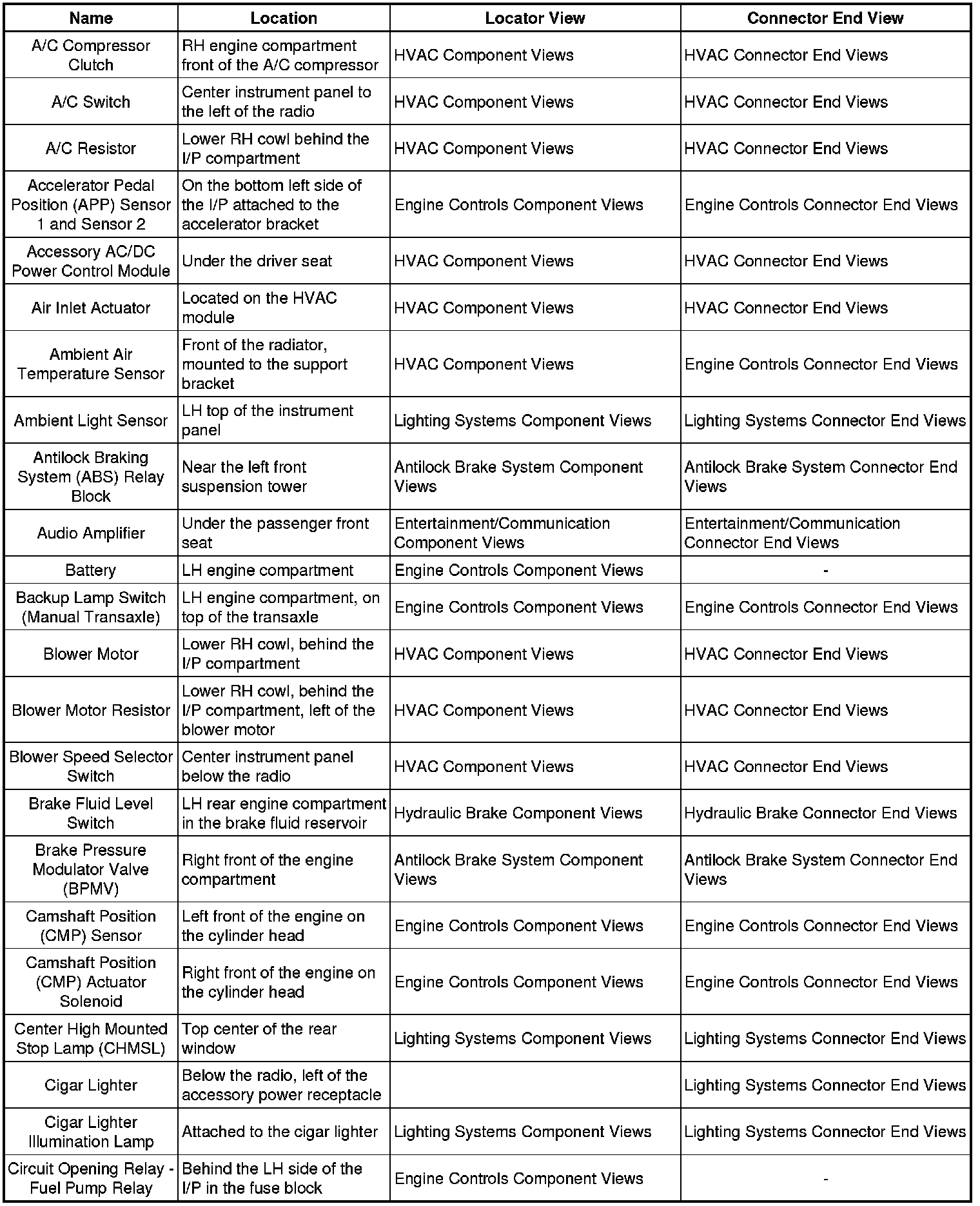

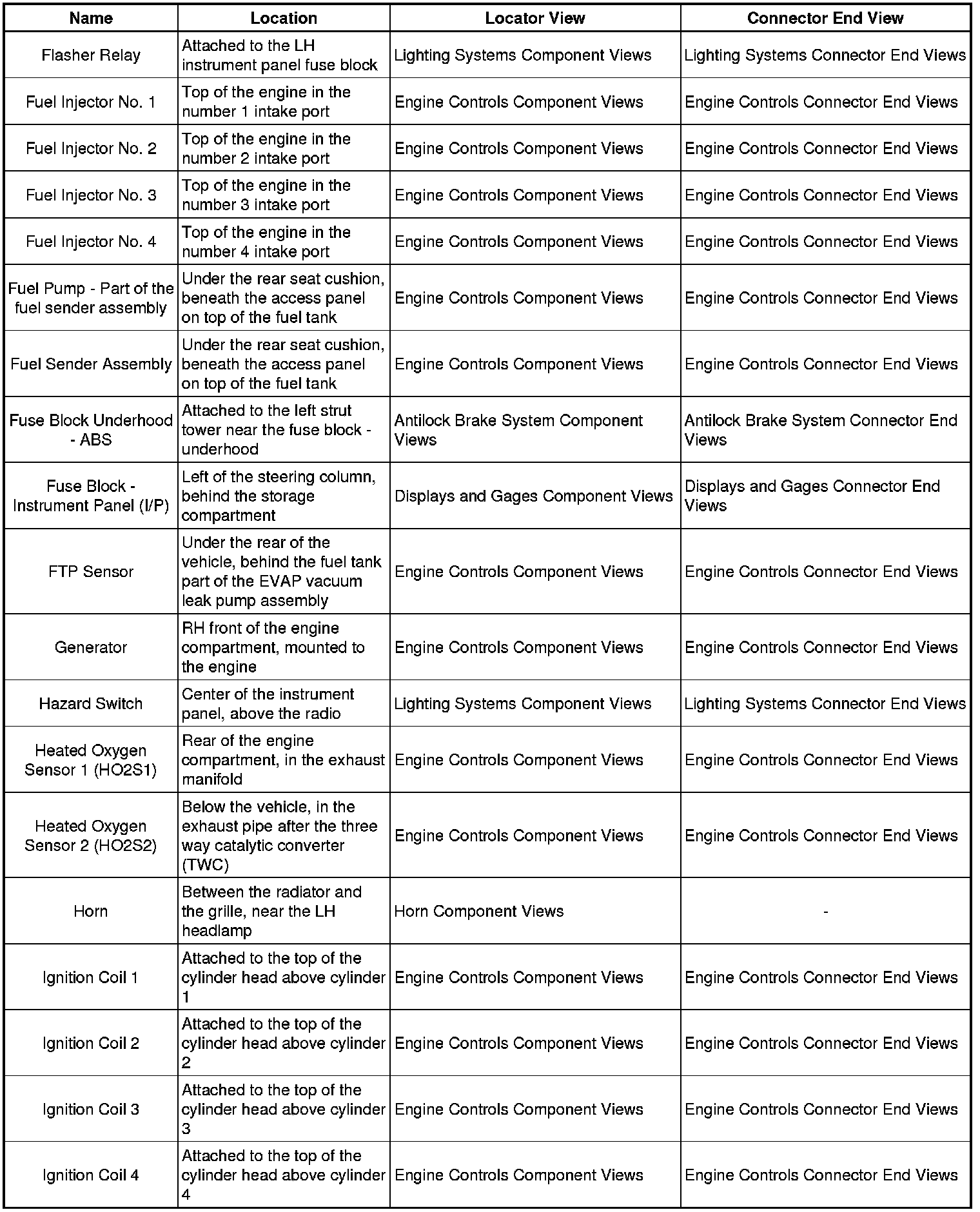

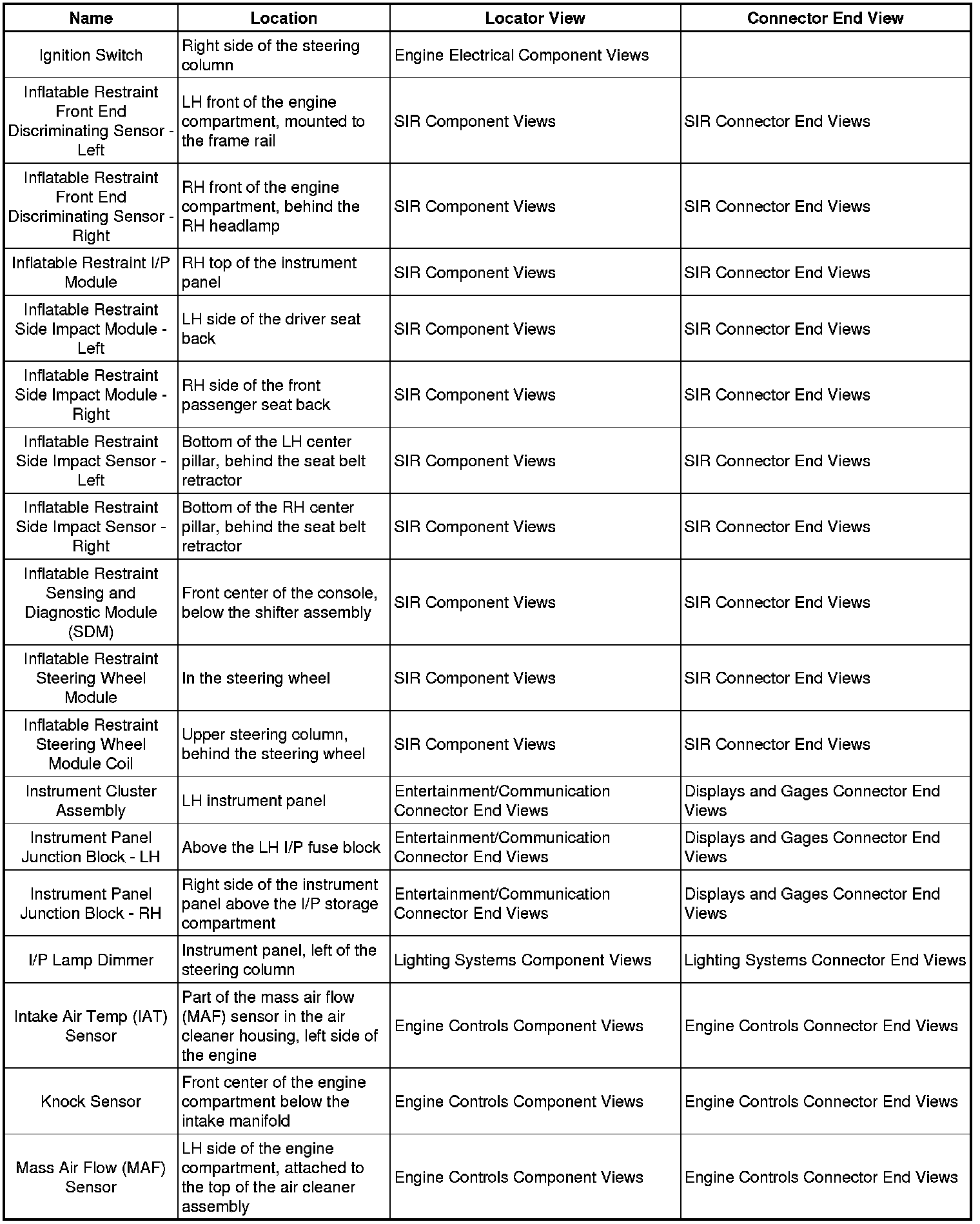

Master Electrical Component List
AC Comp - Cir:

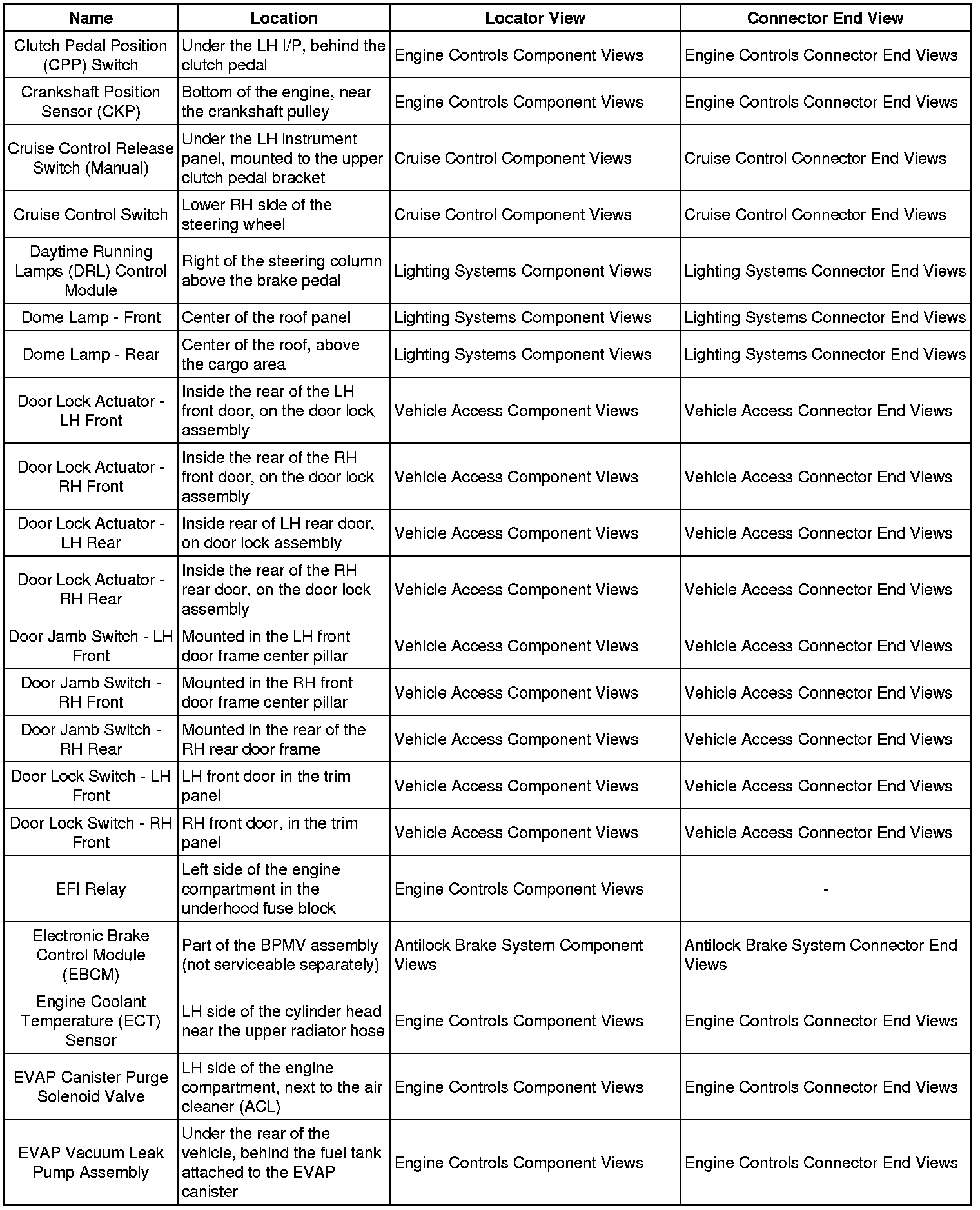

Clu - EVAP:
Fla - Ign:
Ign - Ma:

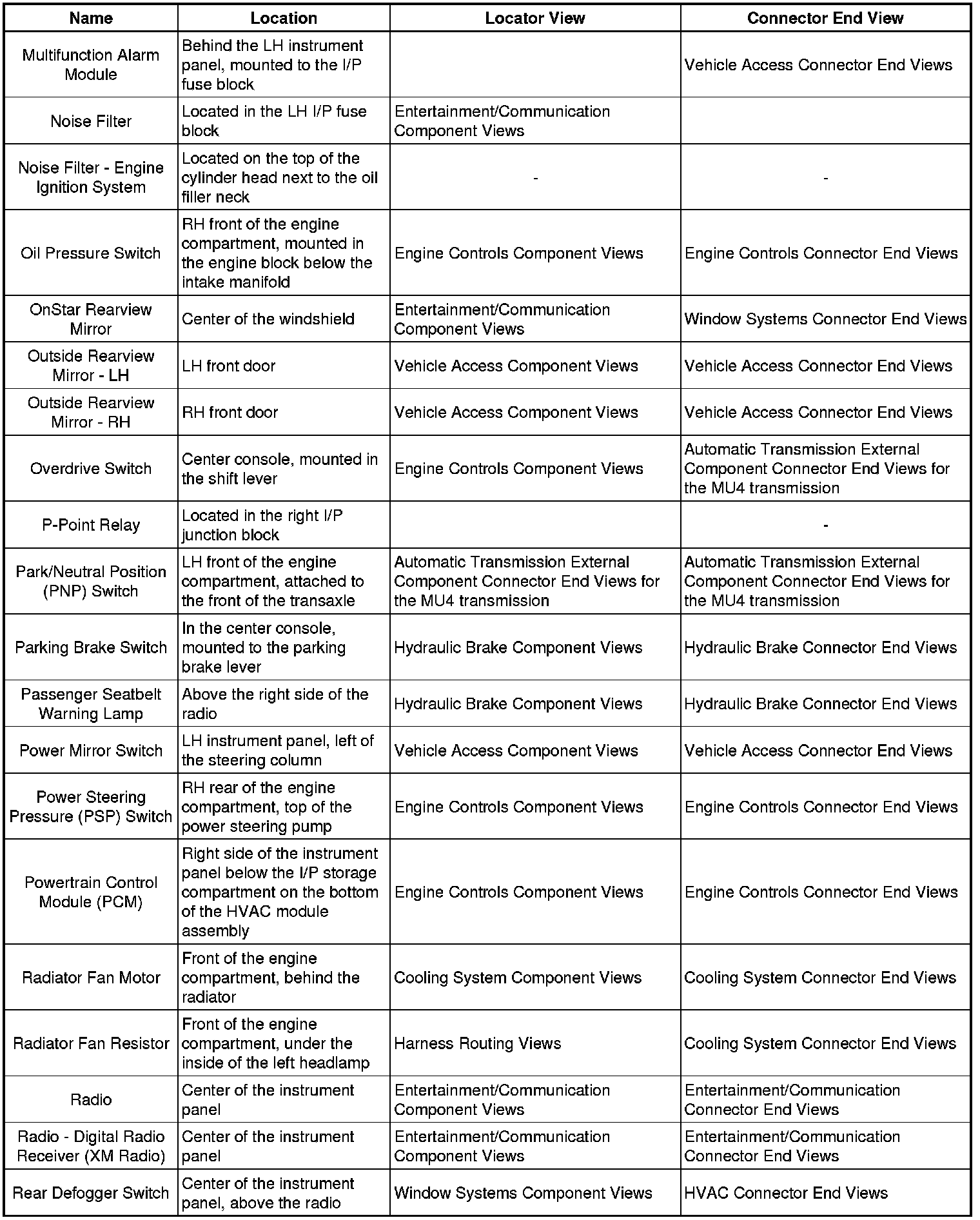

Mul - Rea:
Rea - Sun:

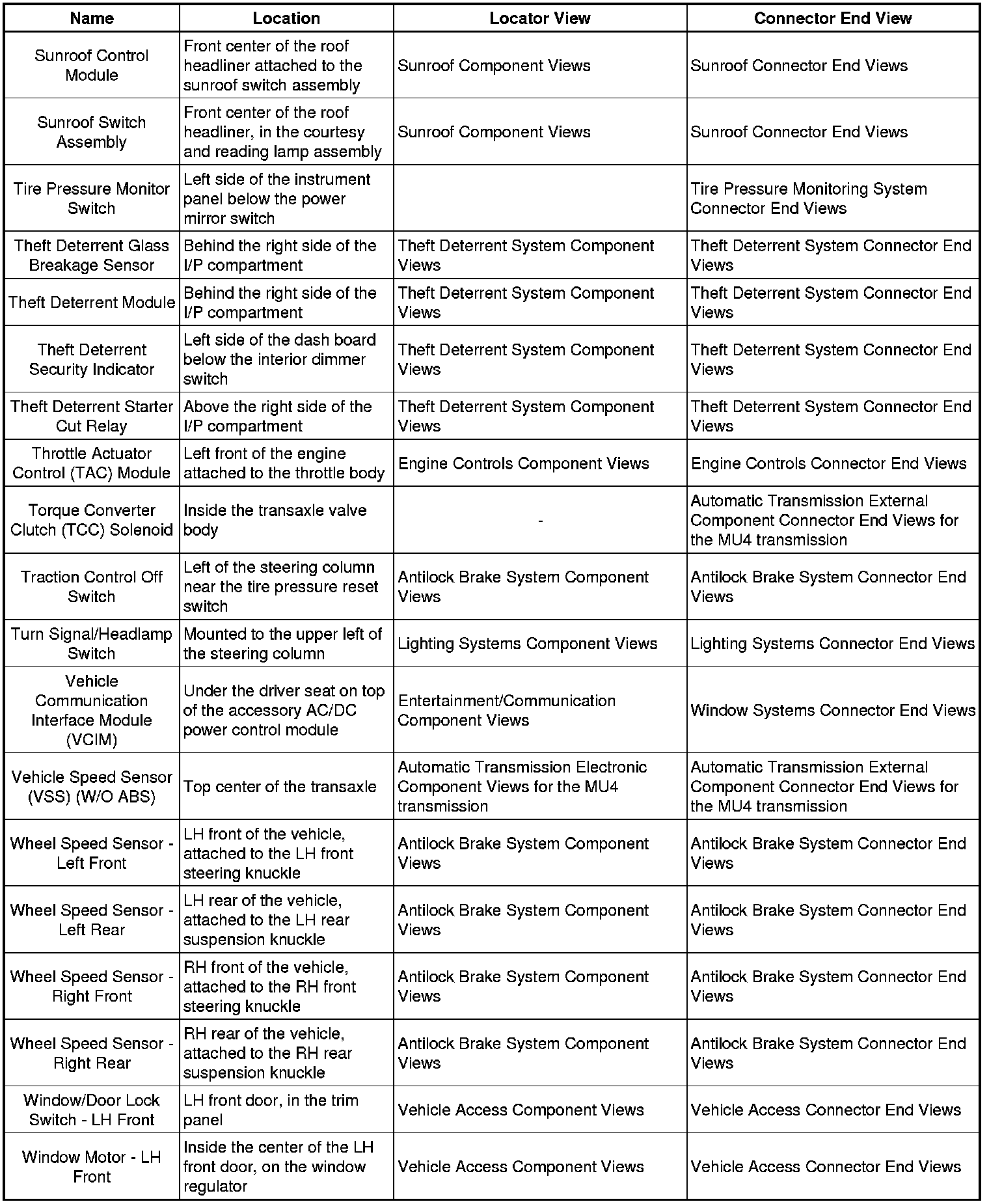

Sun - Win:

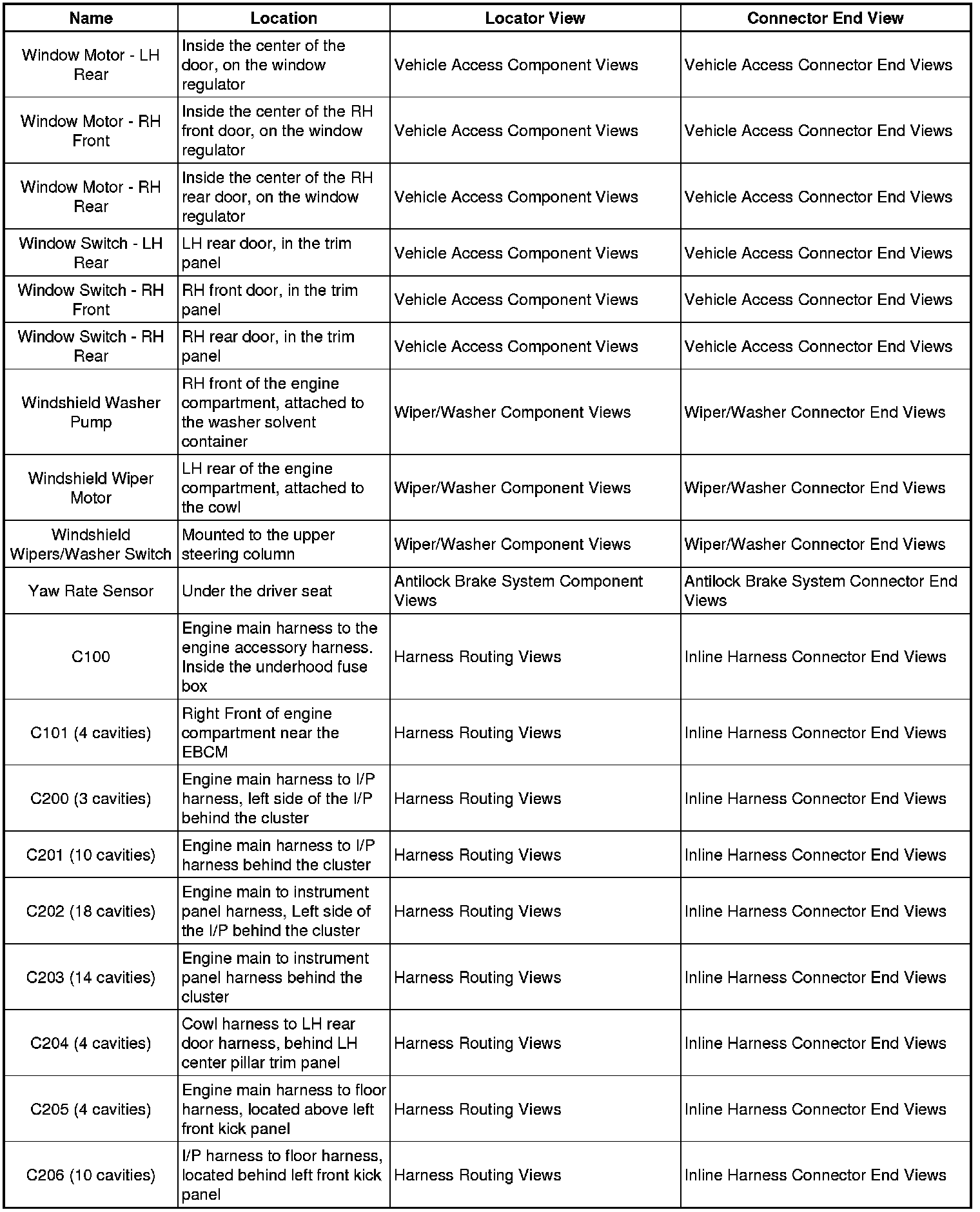

Win - C202:

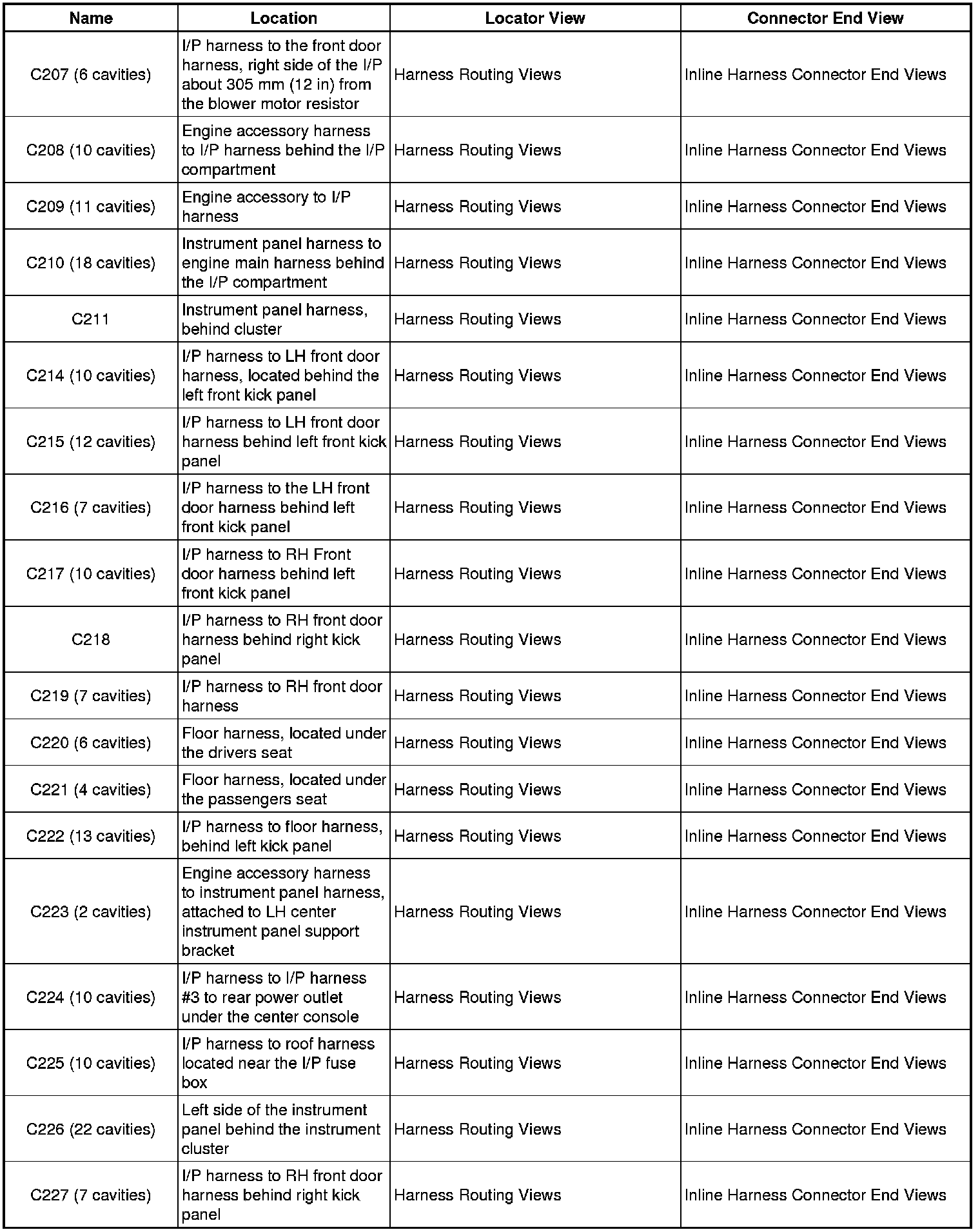

C207 - C227:

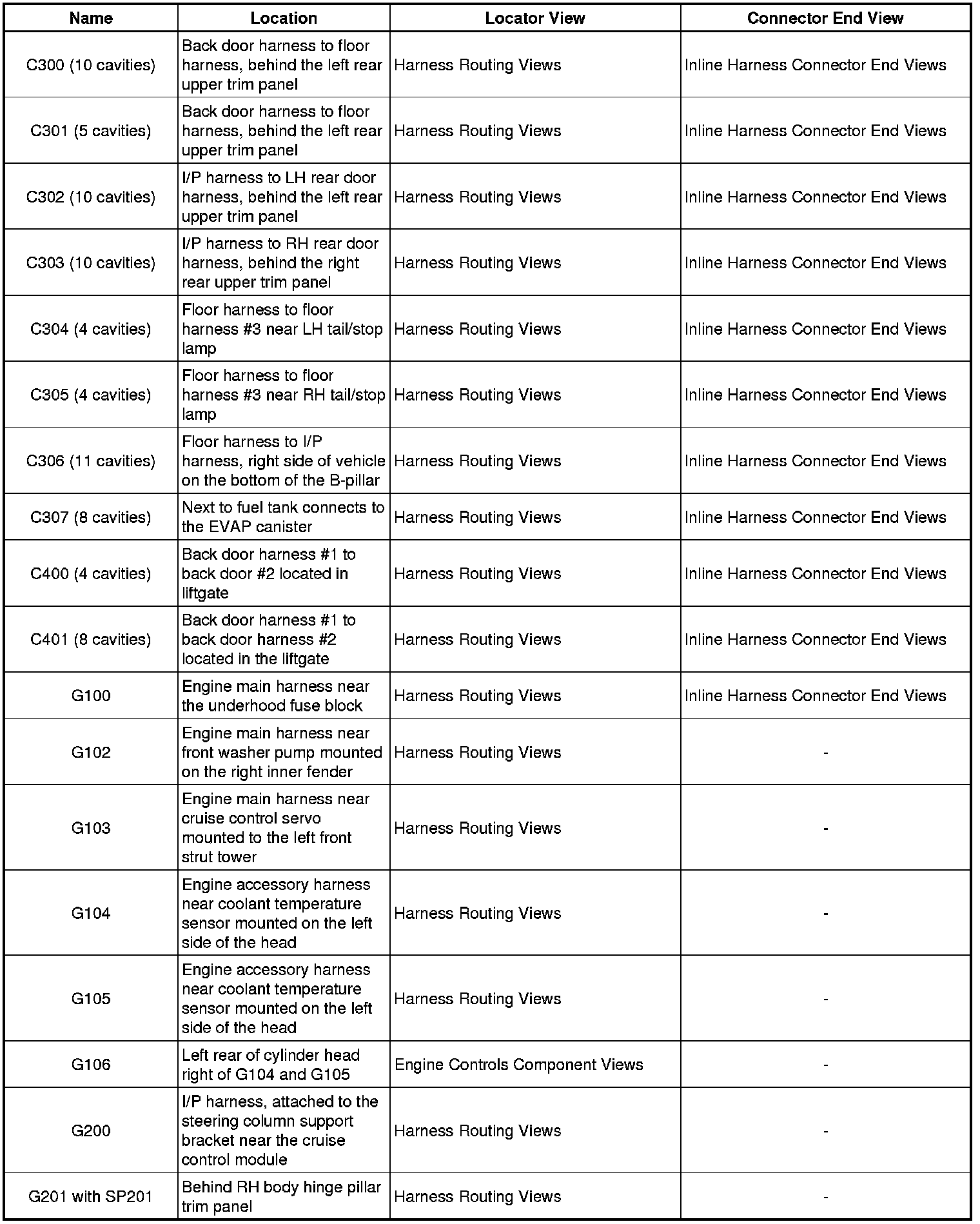

C300 - G201:

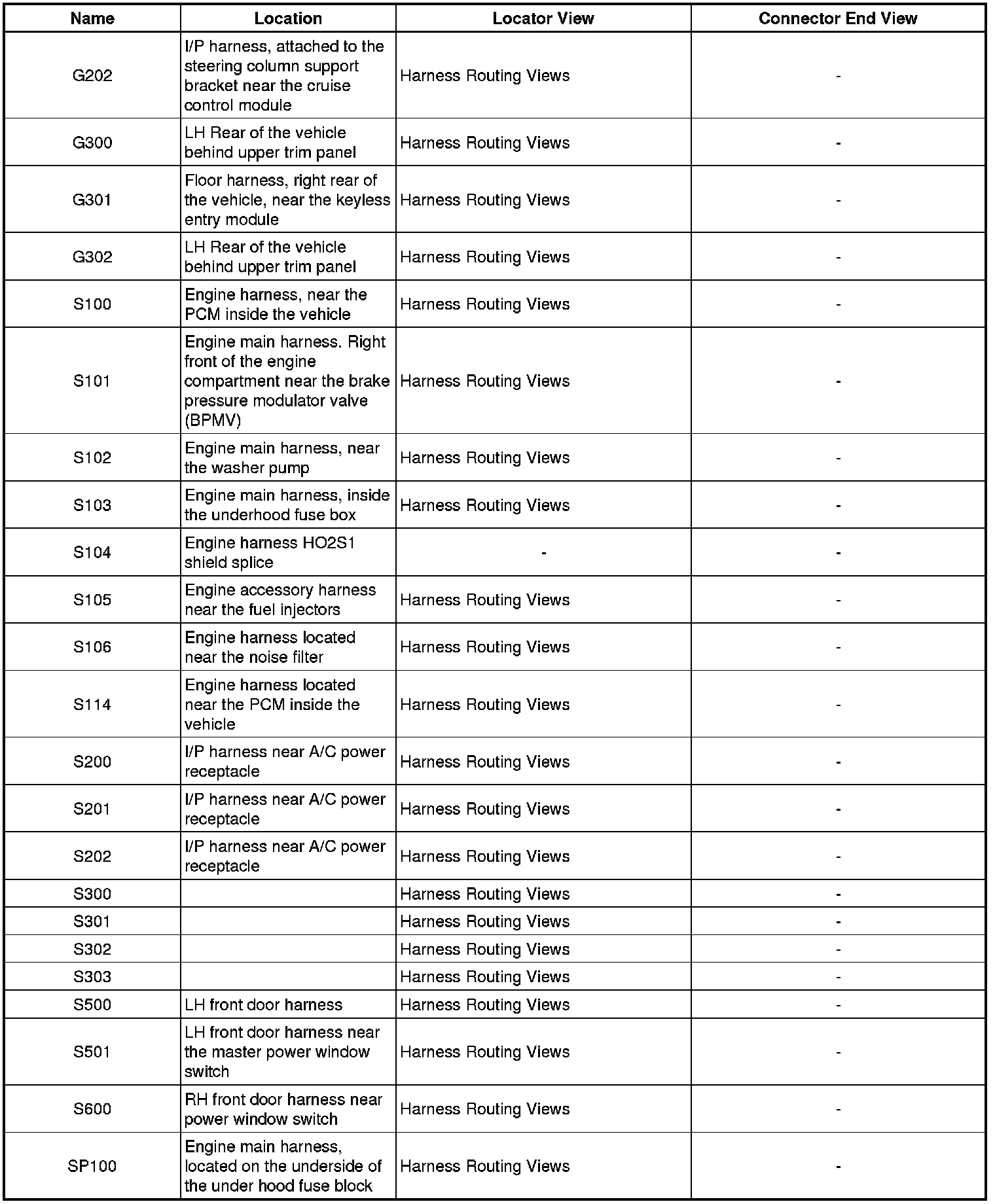

G202 - SP100:

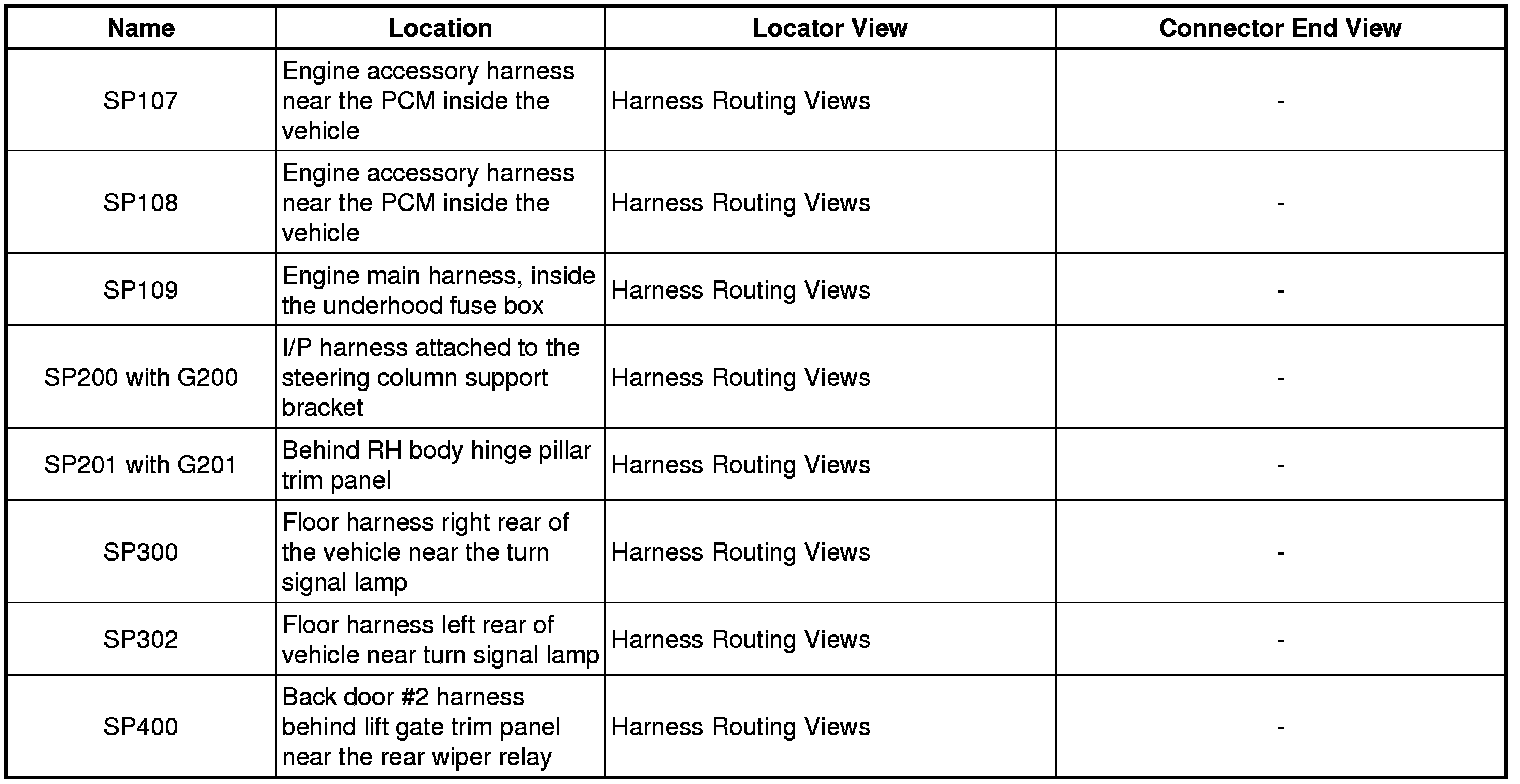

SP107 - SP400:
