Electronic Throttle Control Module: Diagrams

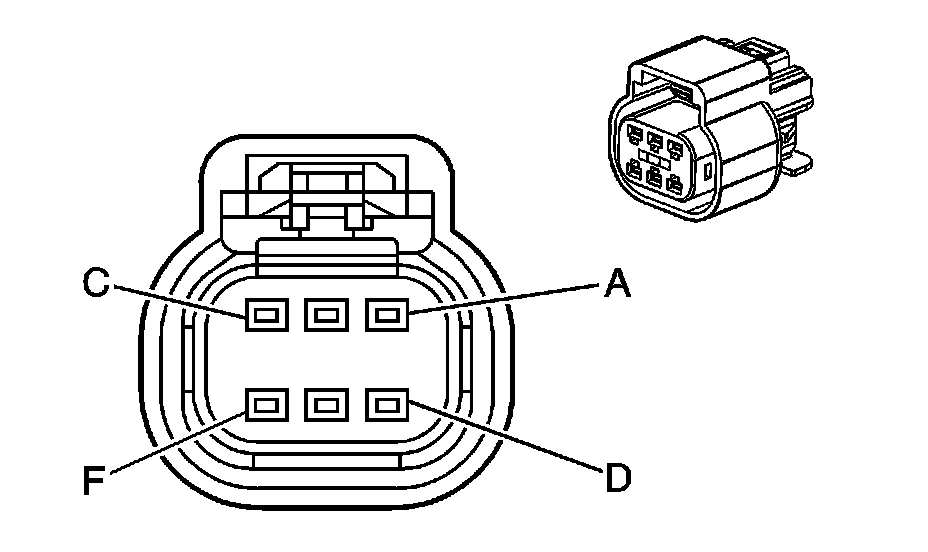

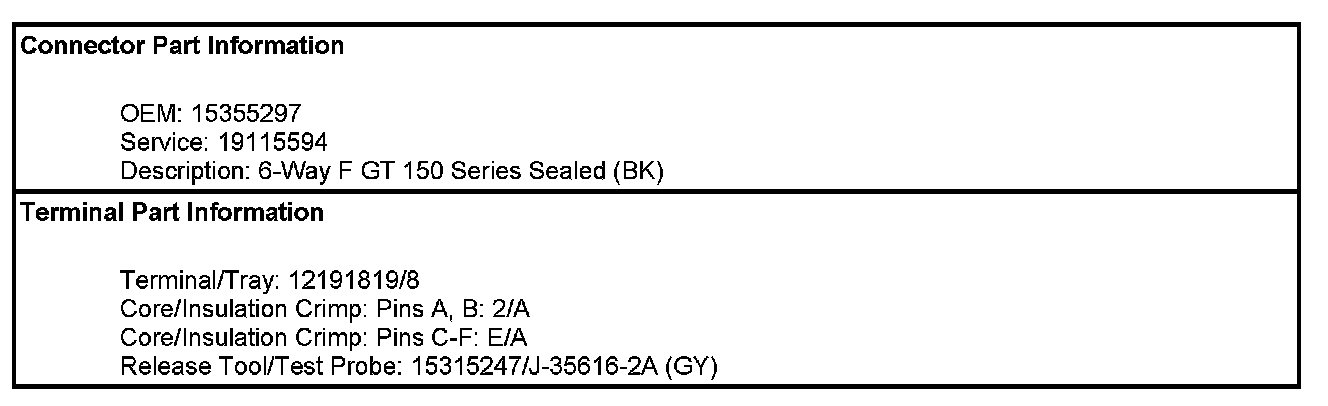

Component Connector End Views - Continued

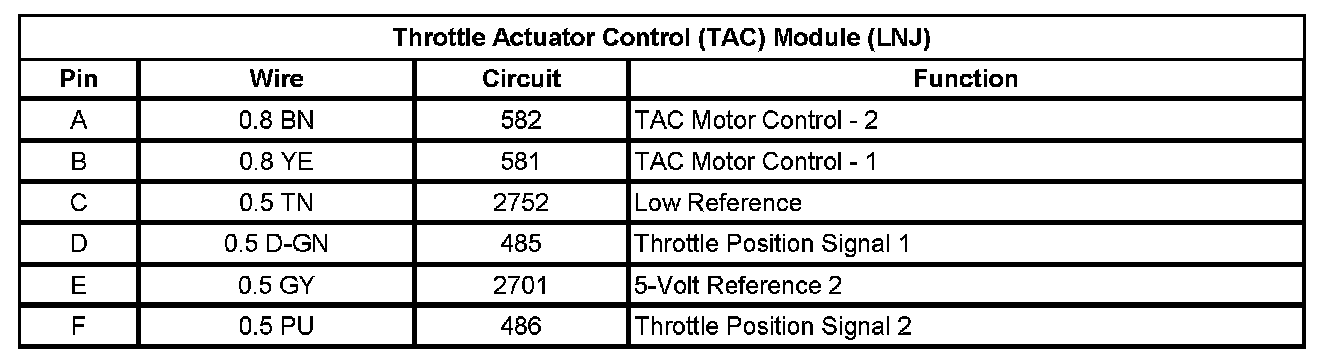

Throttle Actuator Control (TAC) Module (LNJ)
