Home >> Pontiac >> 2008 >> Grand Prix V8-5.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

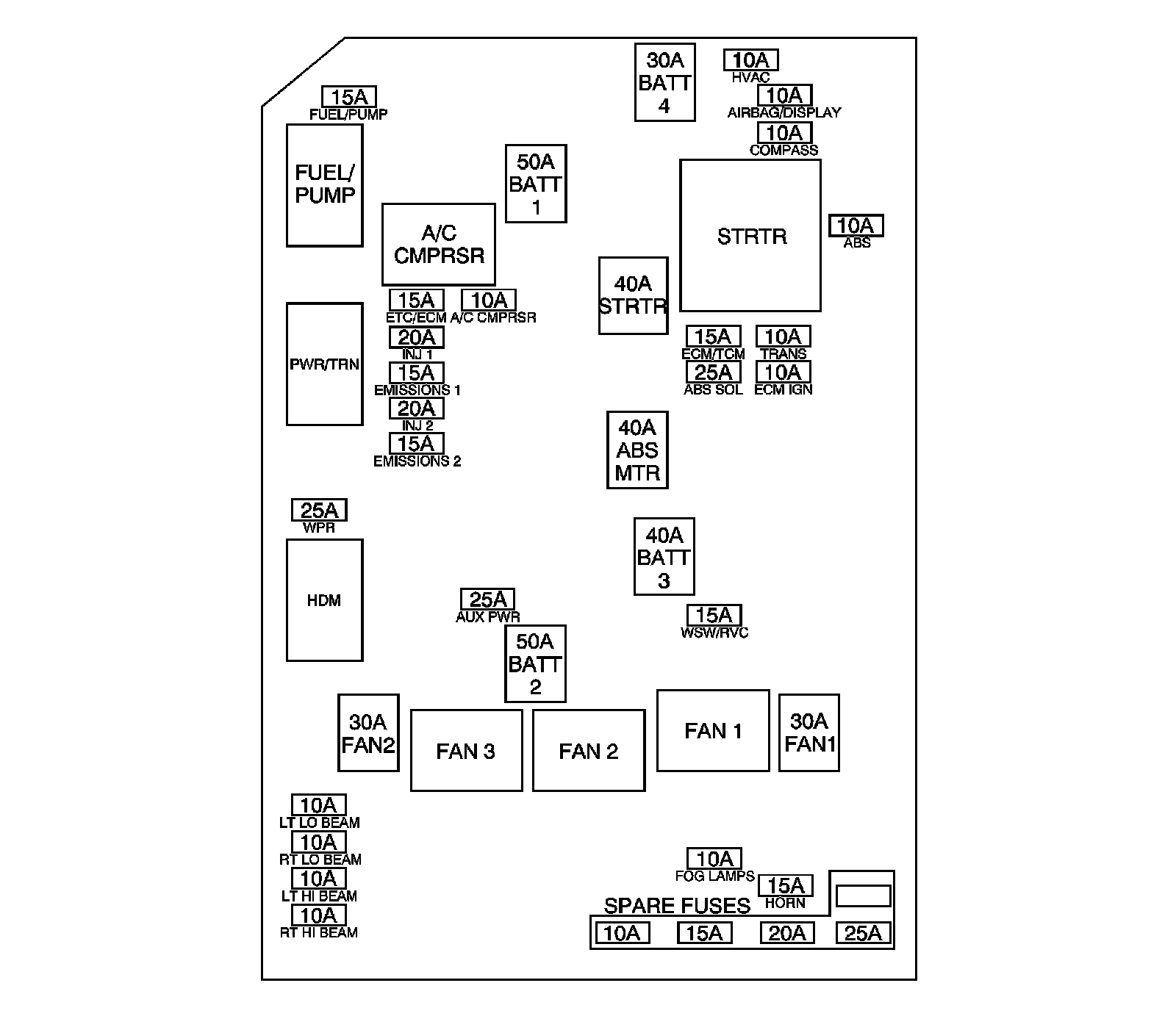

Electrical Center Identification Views

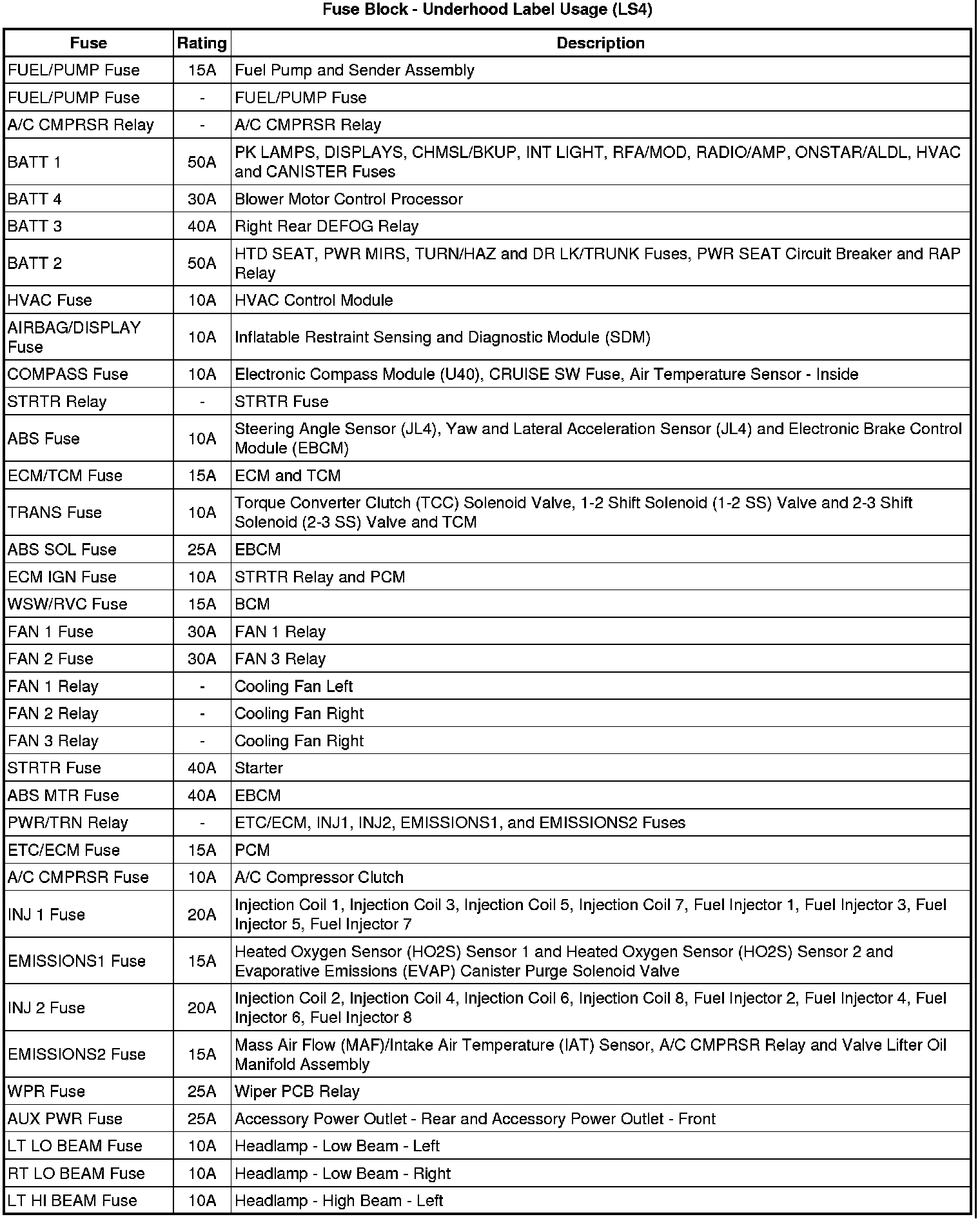

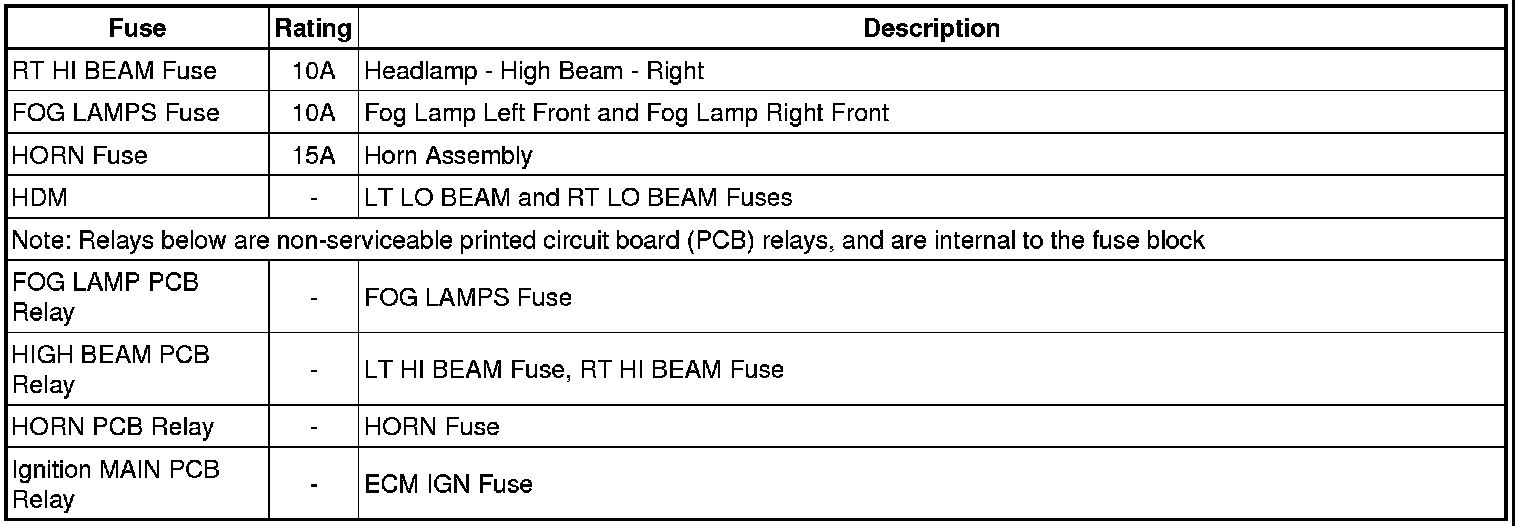

Fuse Block - Underhood - Label (LS4 - 5.3L)
