Main Relay (Computer/Fuel System): Locations

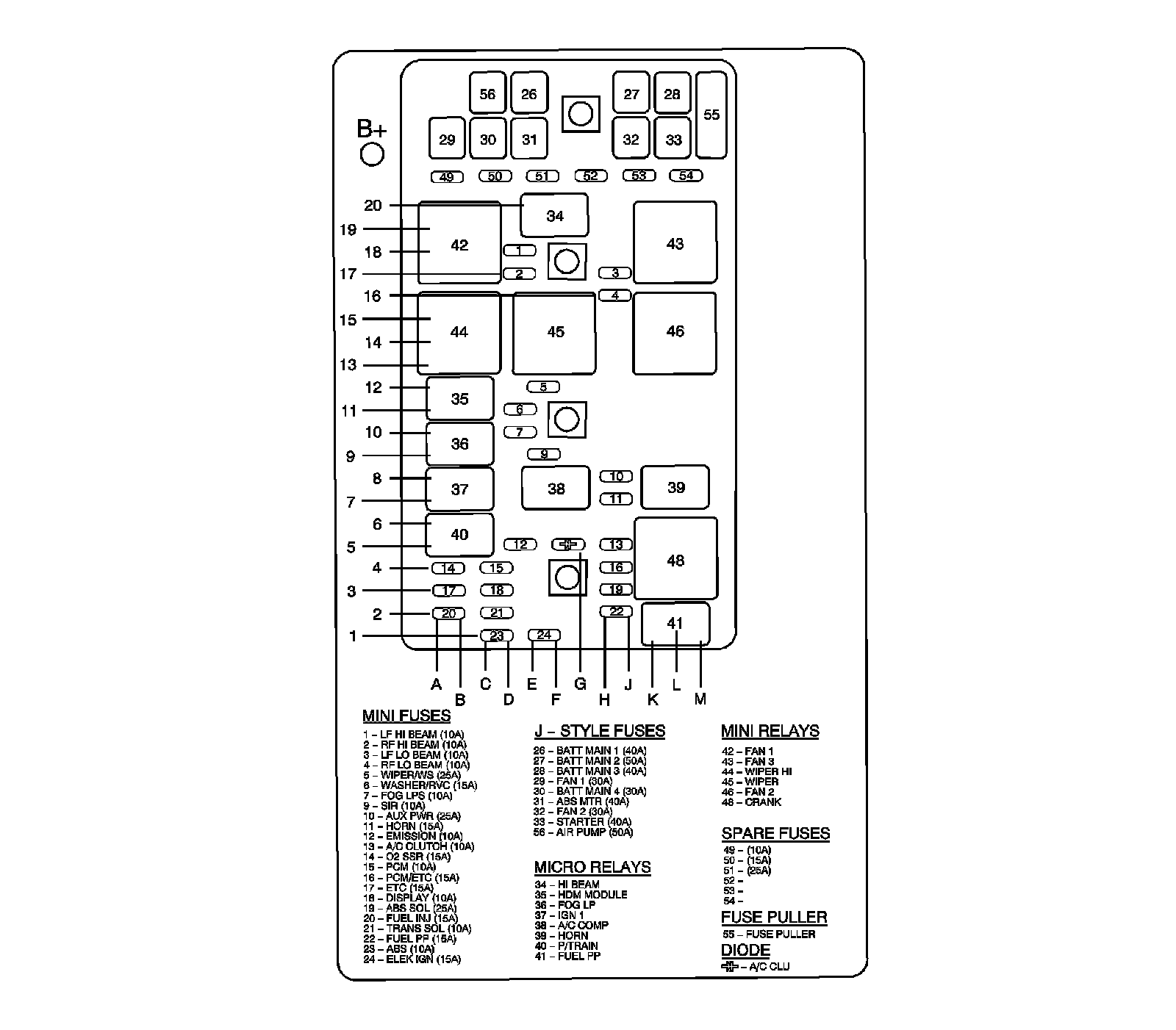

Electrical Center Identification Views

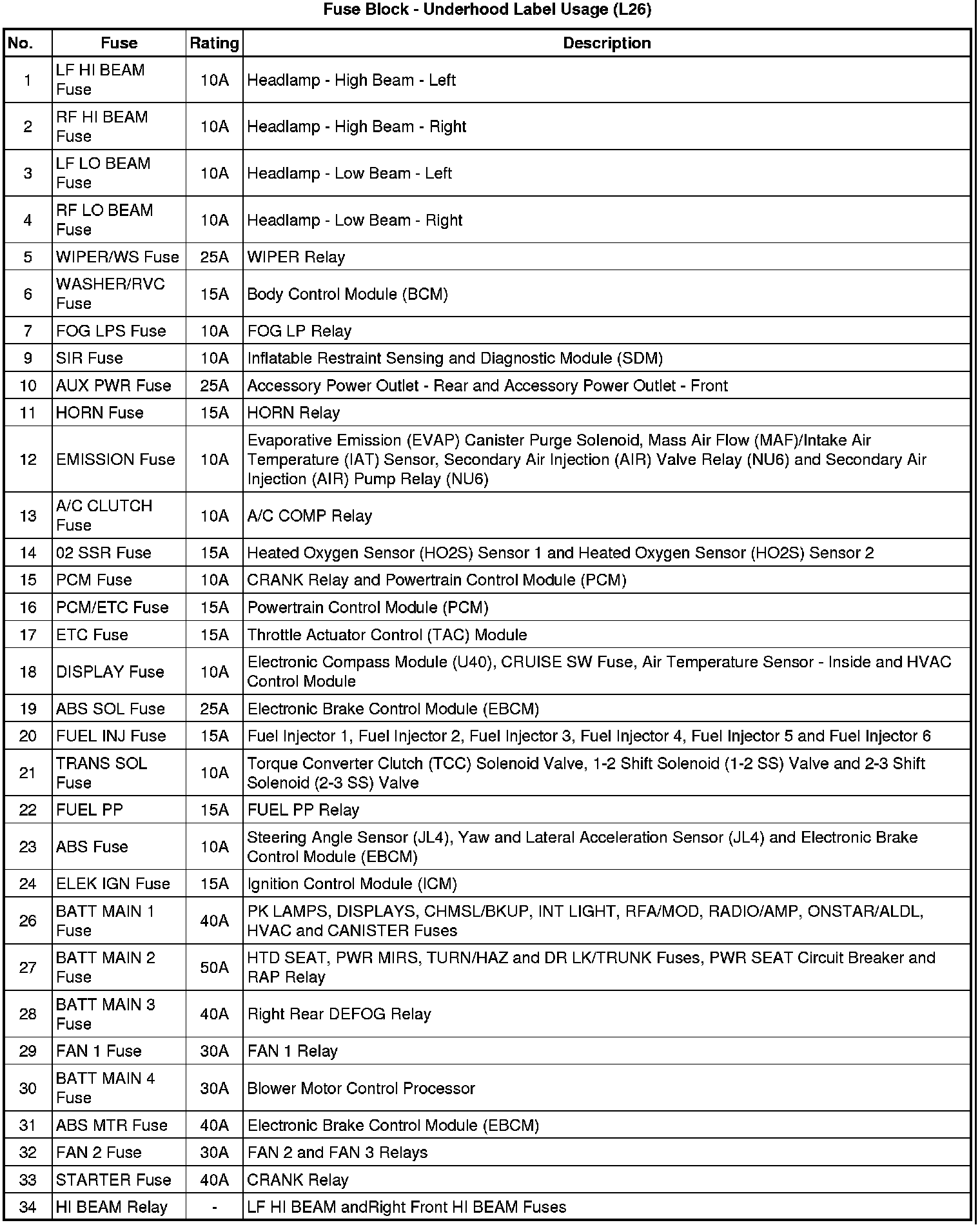

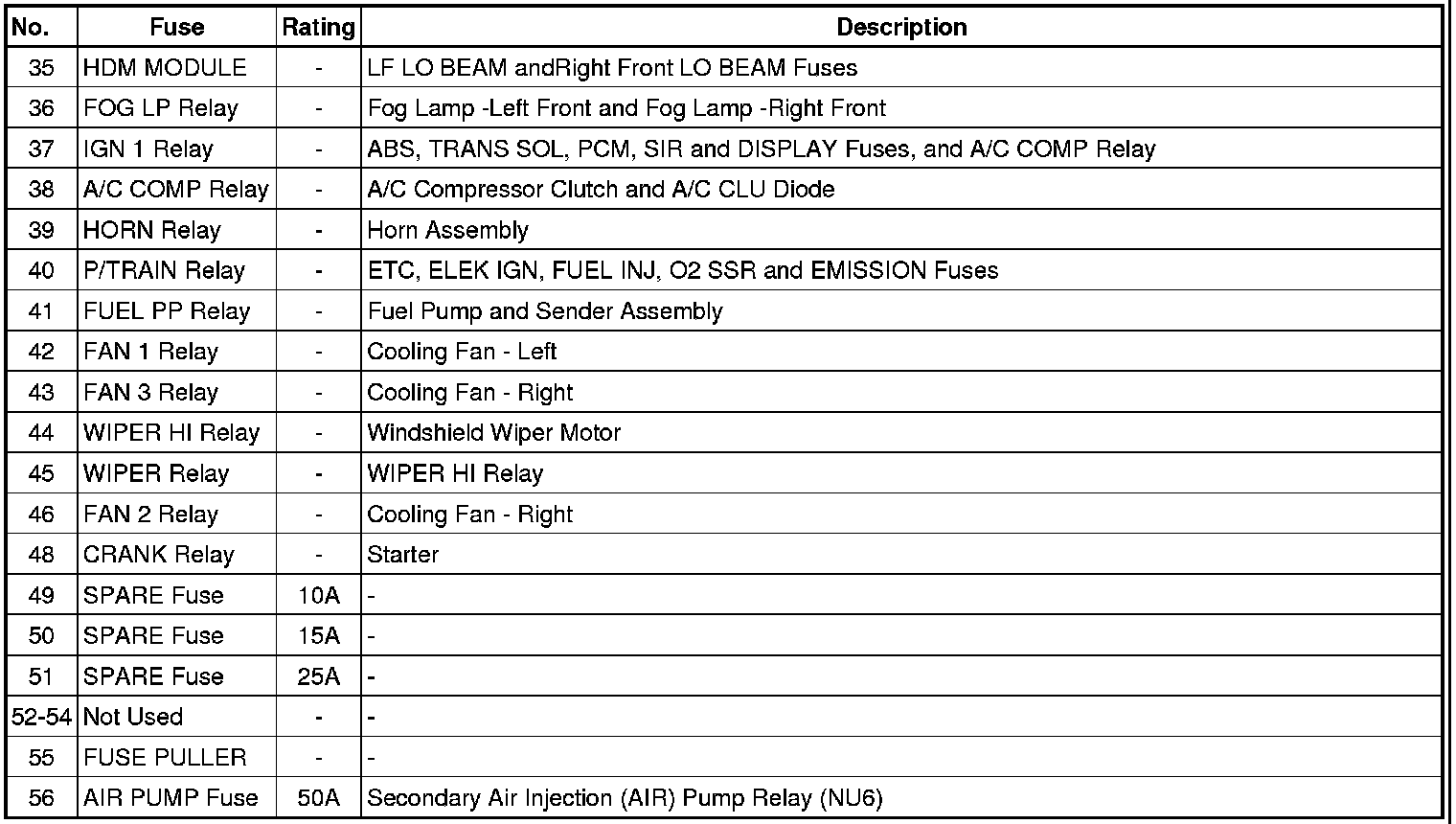

Fuse Block - Underhood - Label (L26 - 3.8L)
