Control Module HVAC

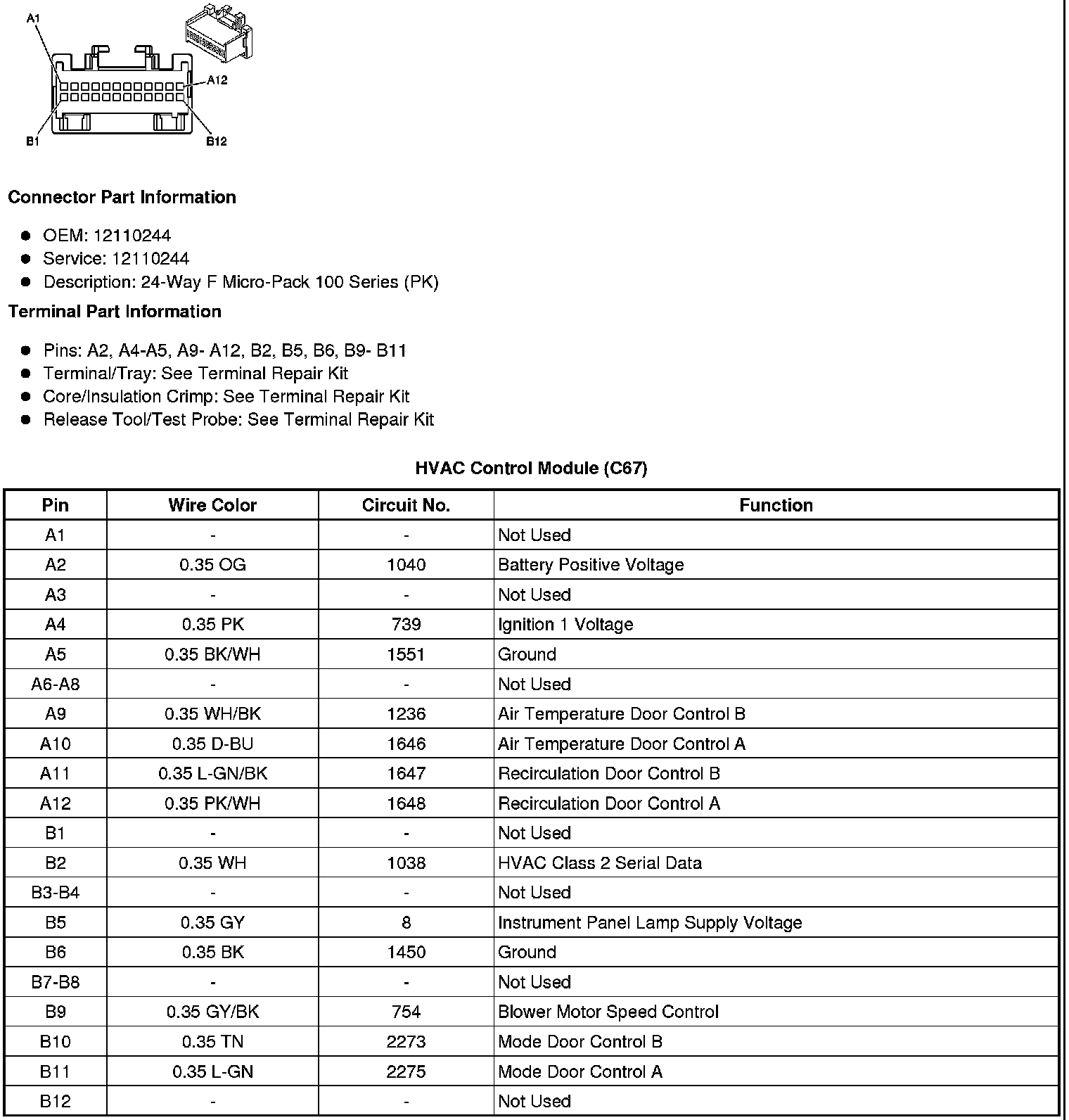

HVAC Control Module (C67)

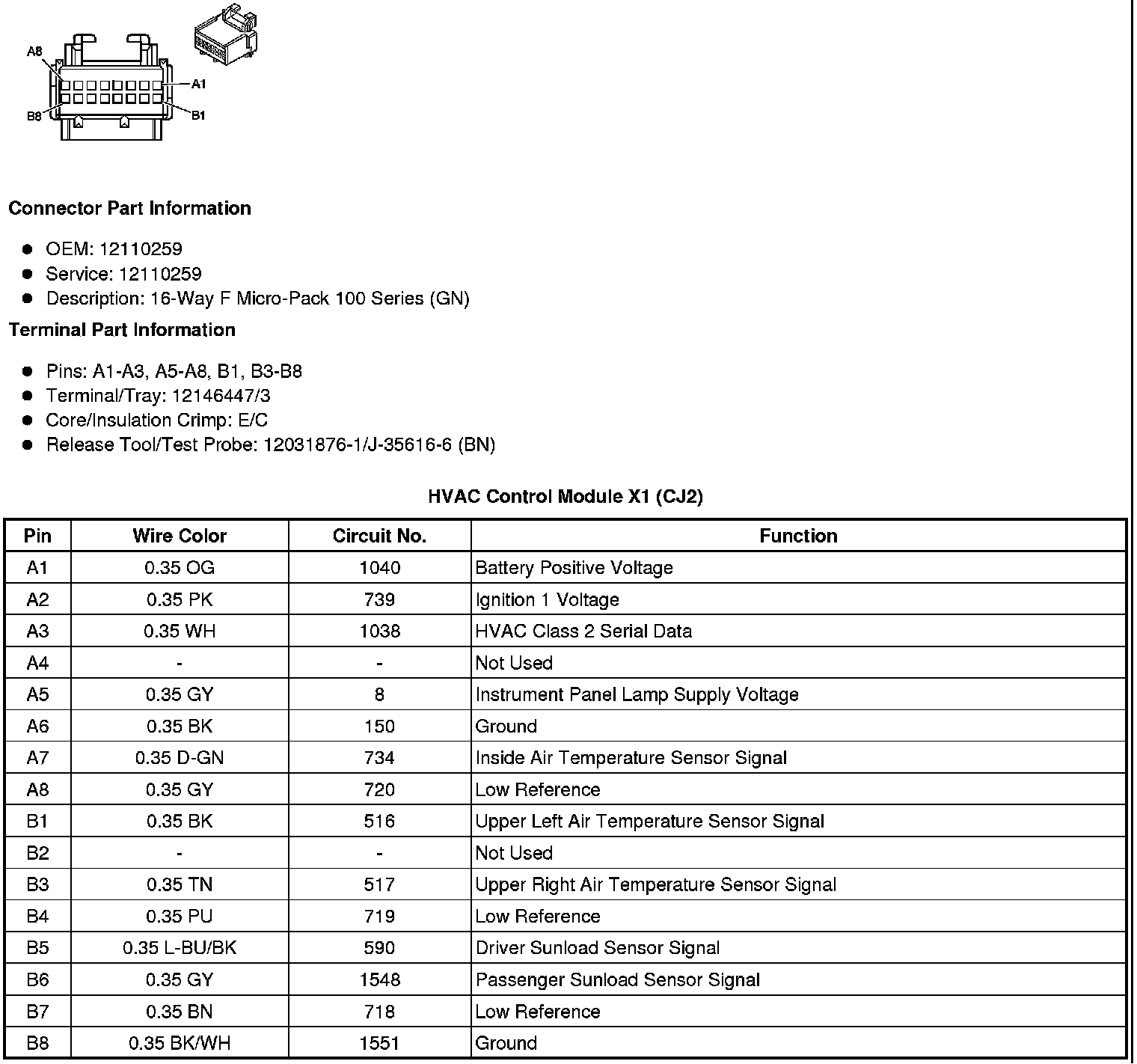

HVAC Control Module X1 (CJ2)

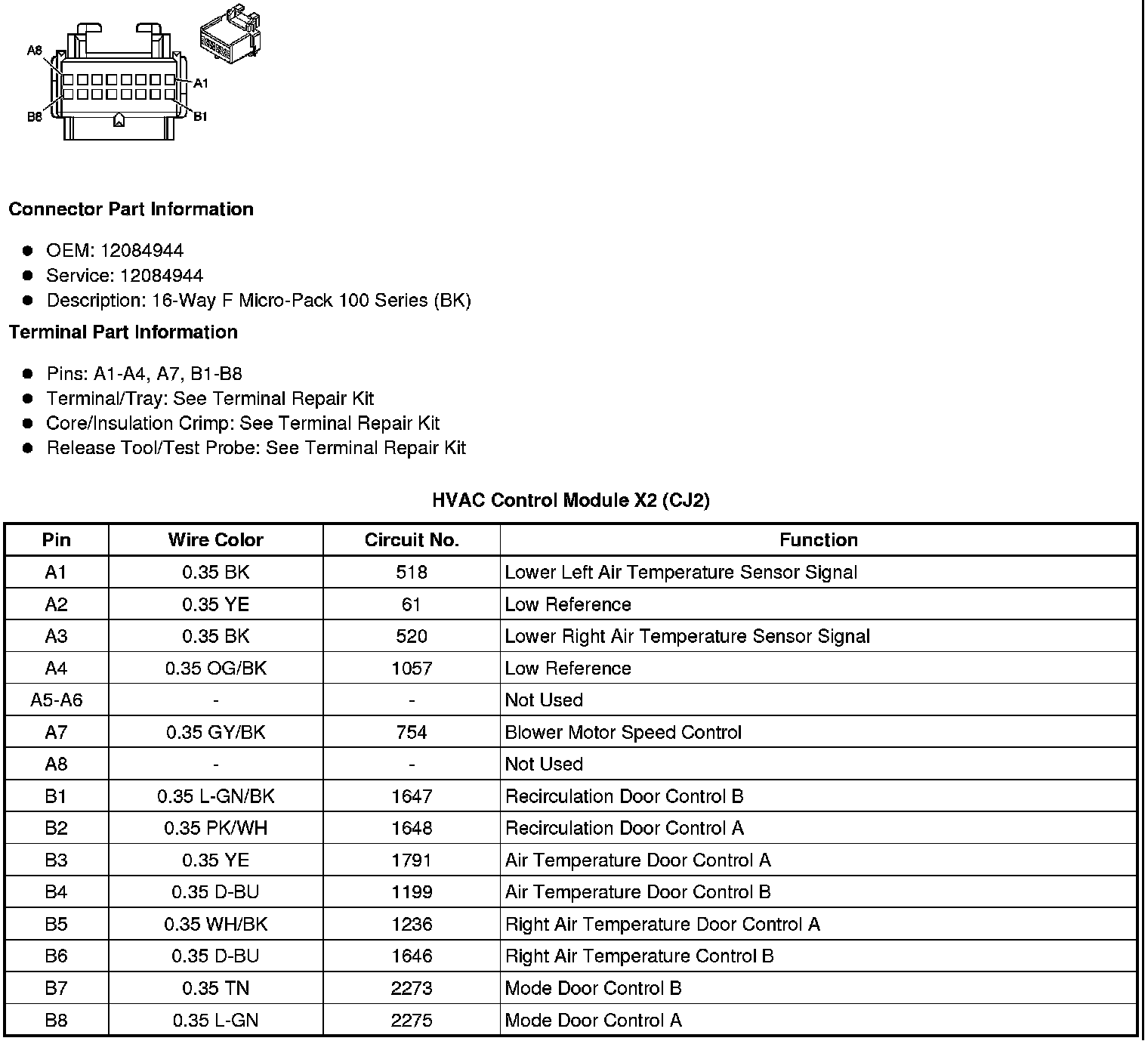

HVAC Control Module X2 (CJ2)
