Home >> Pontiac >> 2008 >> G8 V6-3.6L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Control Module >> Diagrams

Power Window Control Module: Diagrams

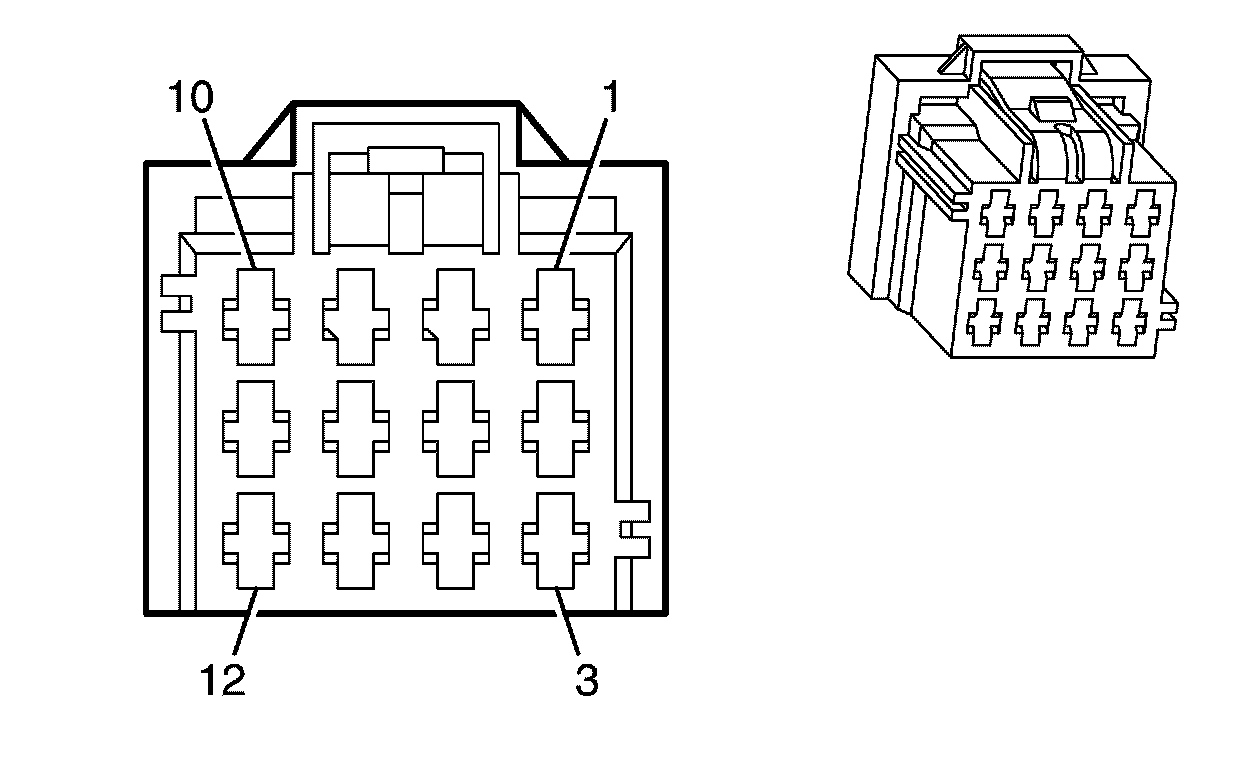

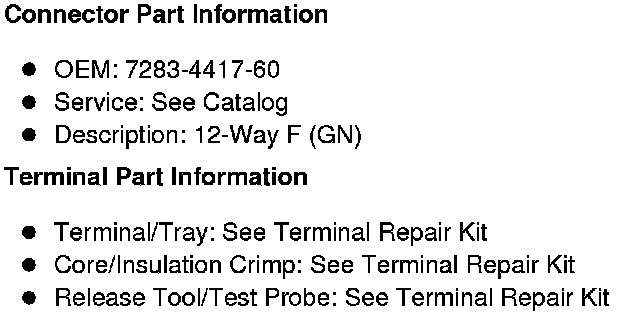

Component Connector End Views

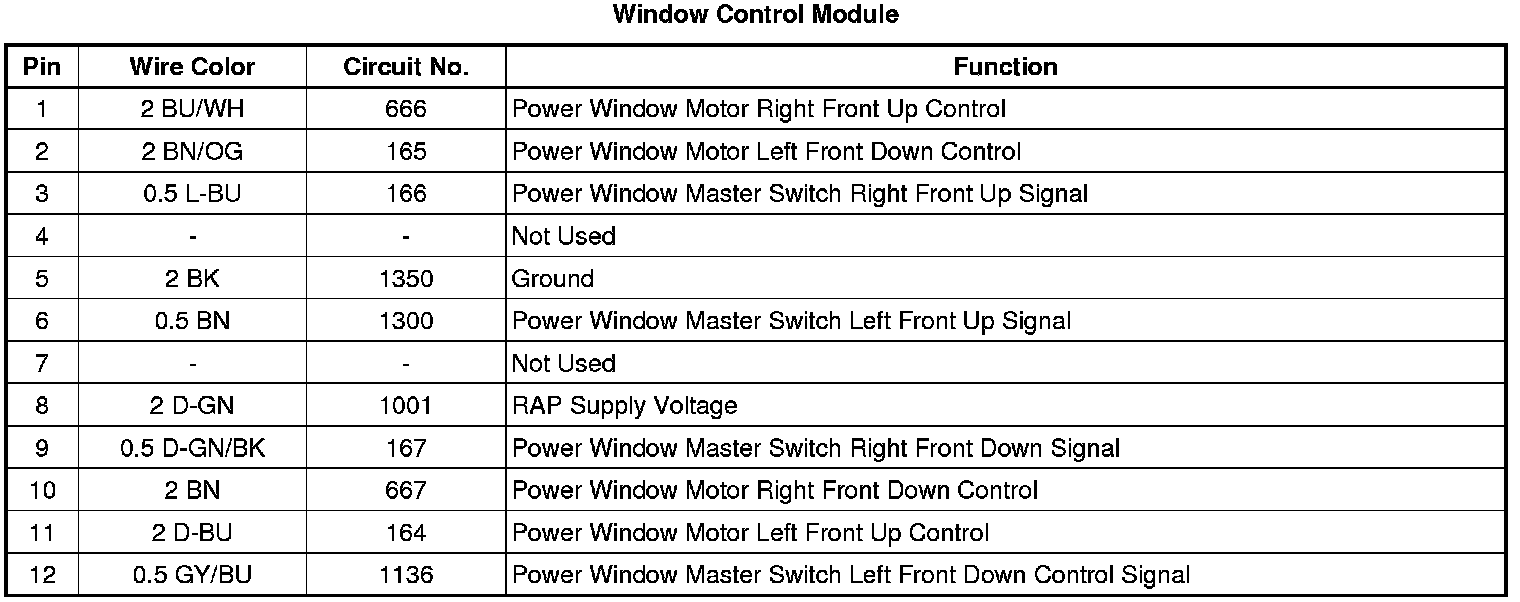

Window Control Module
