Transmission Position Sensor/Switch: Diagrams

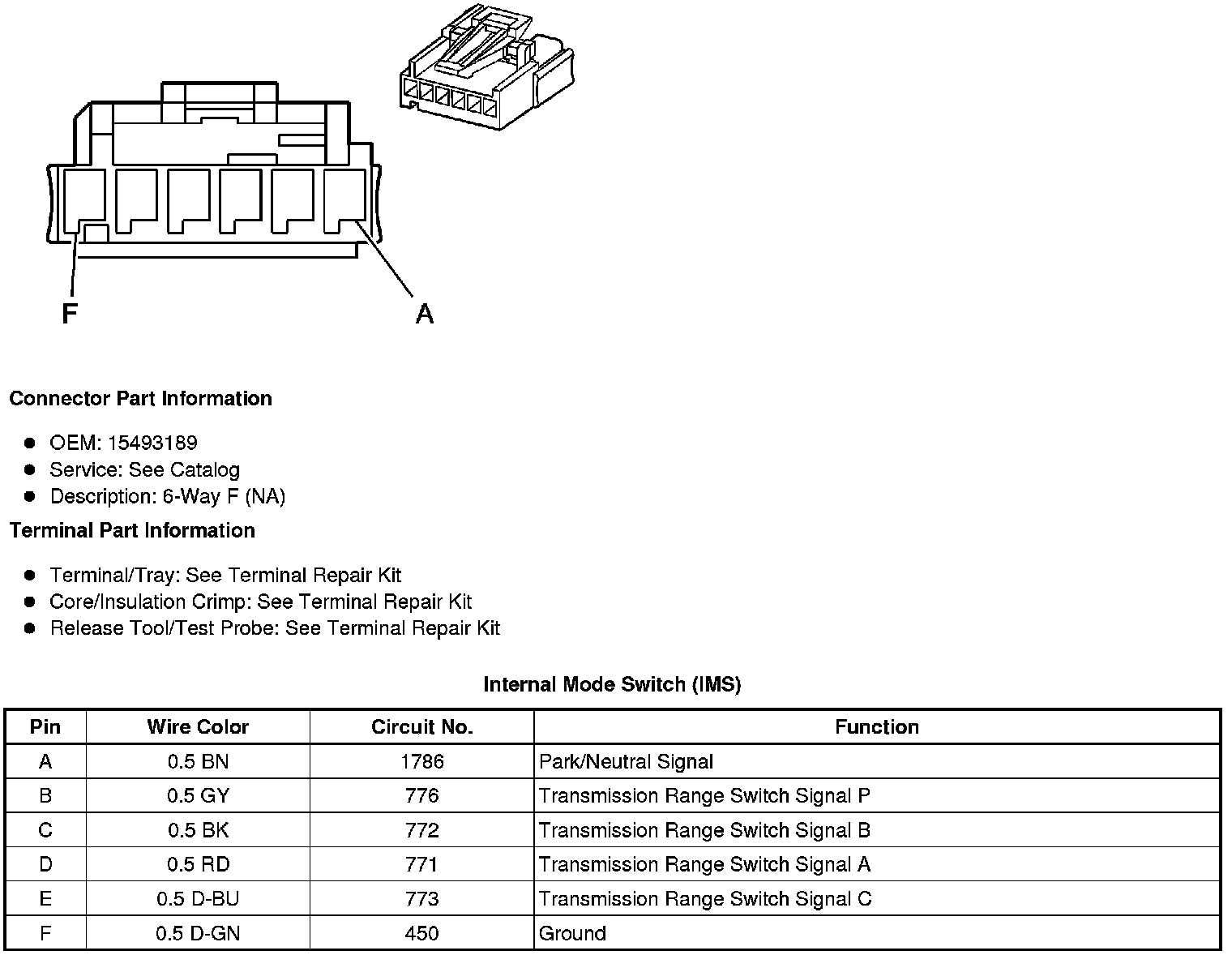

Component Connector End Views

Internal Mode Switch (IMS)
