Variable Induction System



Component Connector End Views

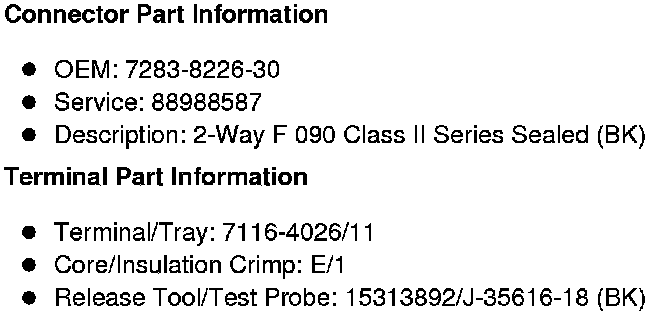

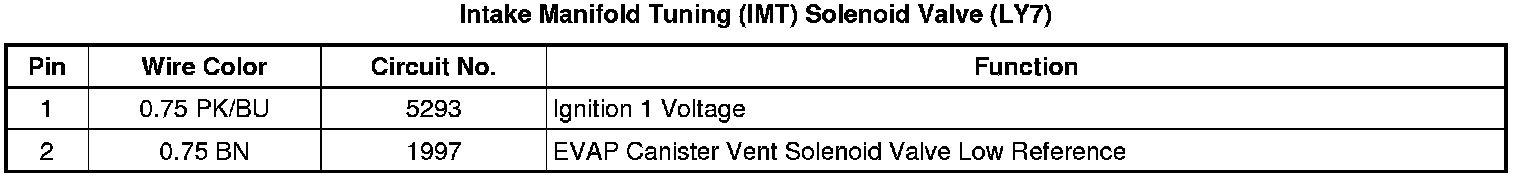

Intake Manifold Tuning (IMT) Solenoid Valve (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
