Seat Temperature Control Module



Component Connector End Views

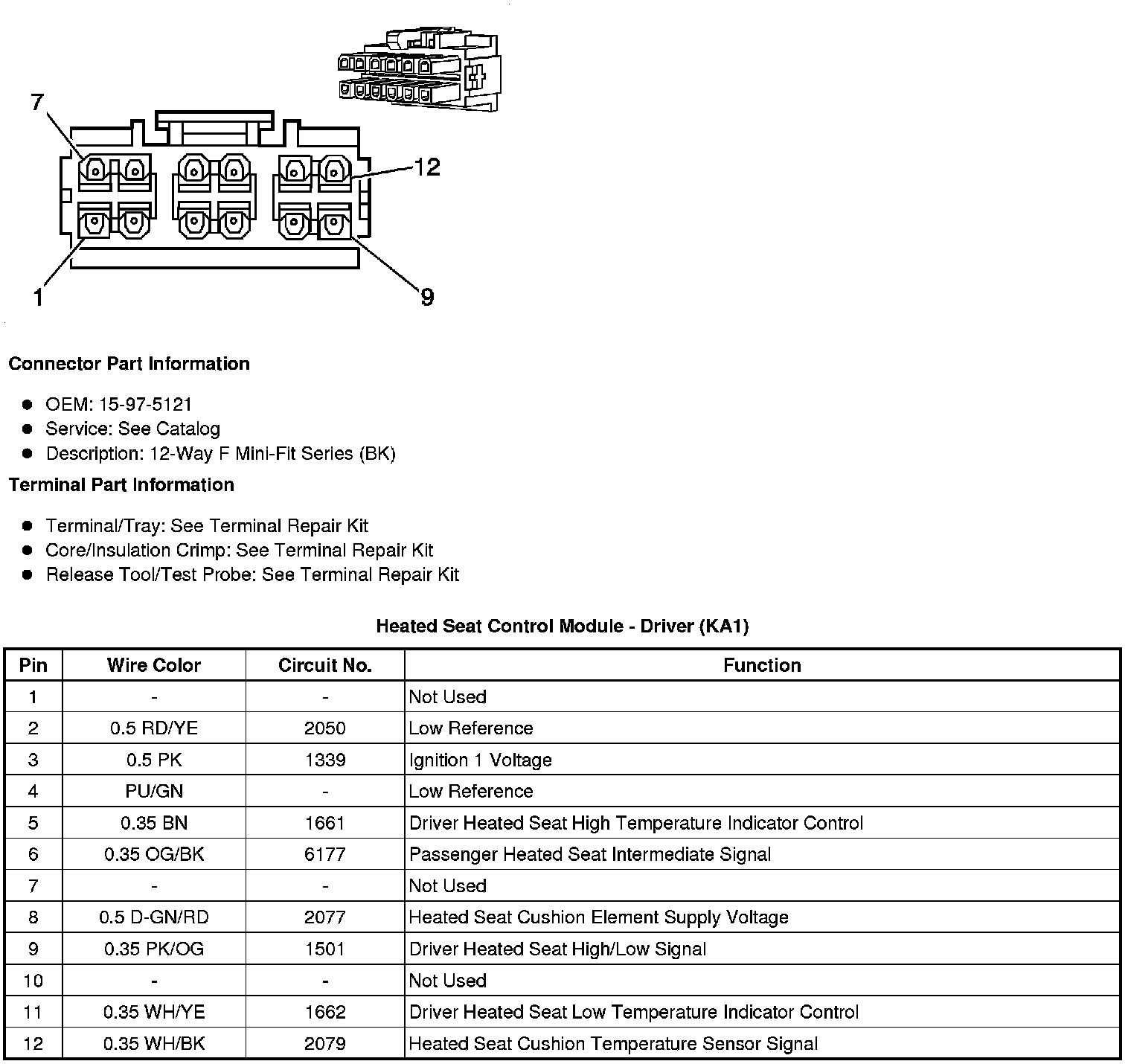

Heated Seat Control Module - Driver (KA1)






Heated Seat Control Module - Passenger (KA1)
