Home >> Pontiac >> 2008 >> G8 V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module

Parking Assist Control Module



Component Connector End Views

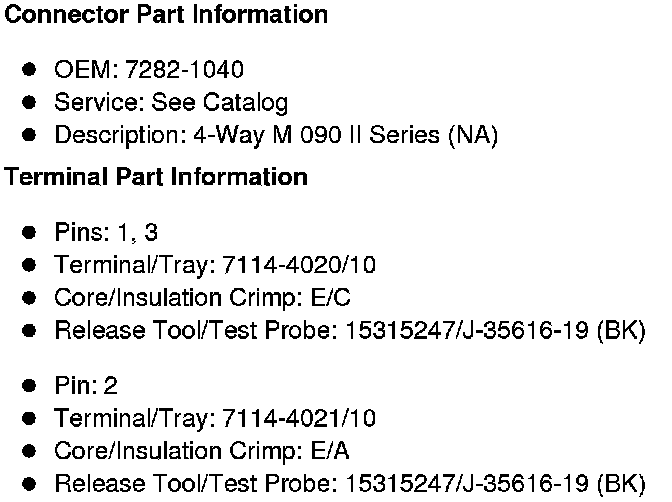

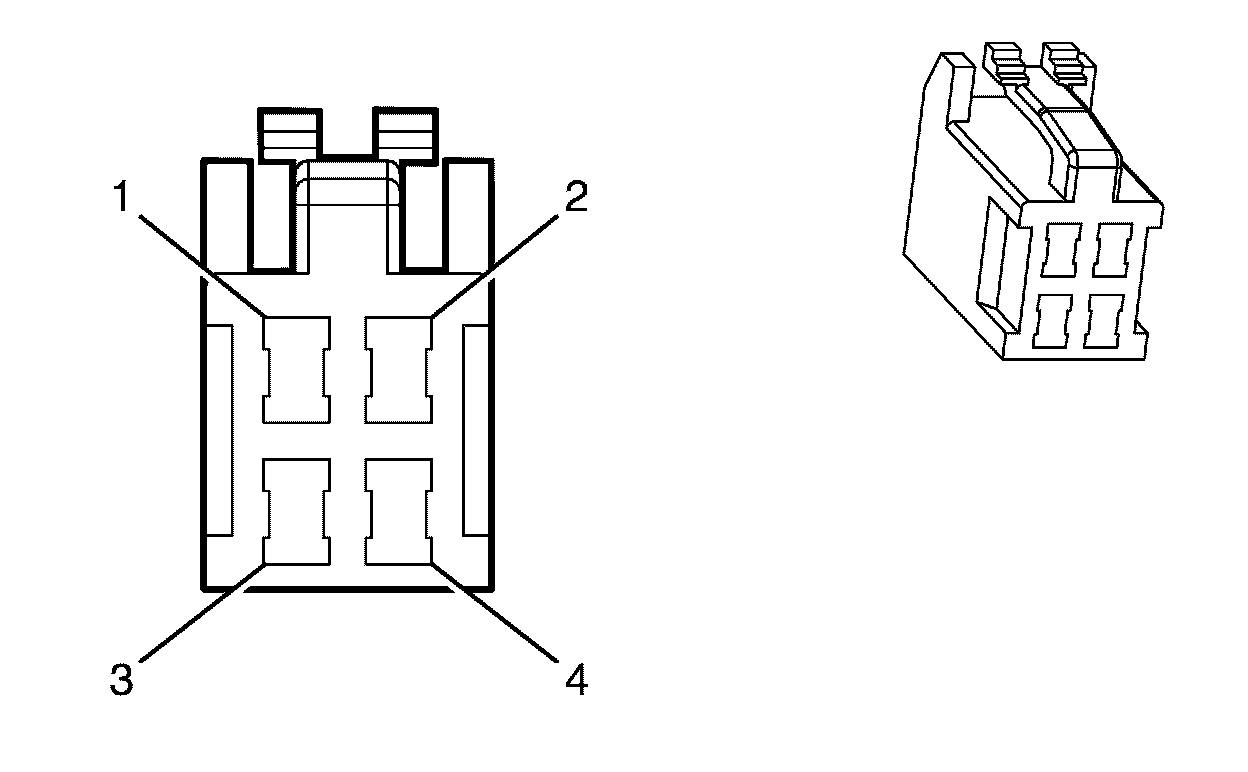

Rear Object Sensor Control Module Connector
