Ignition Control Module
Ignition Control Module
Component Connector End Views - Continued

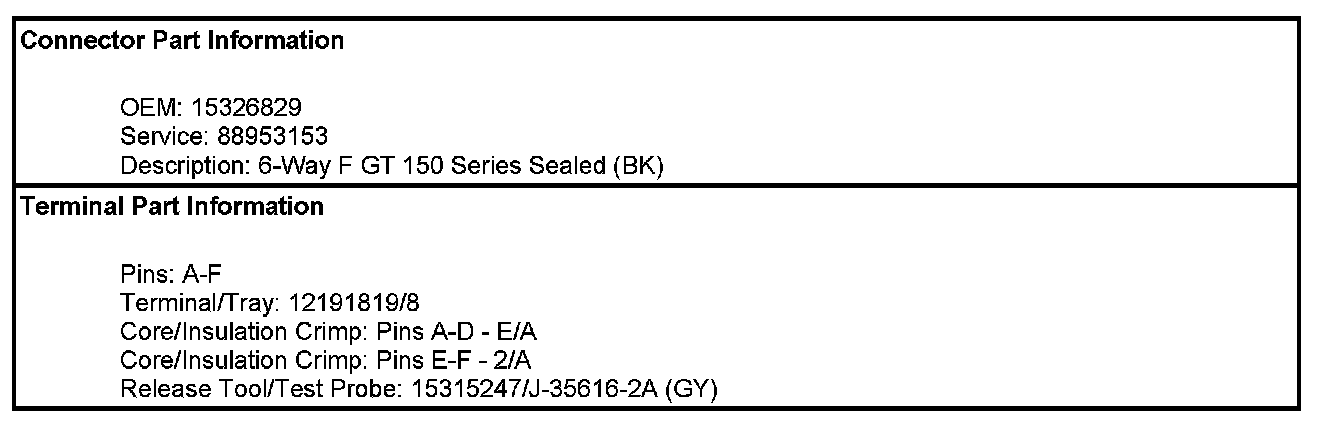

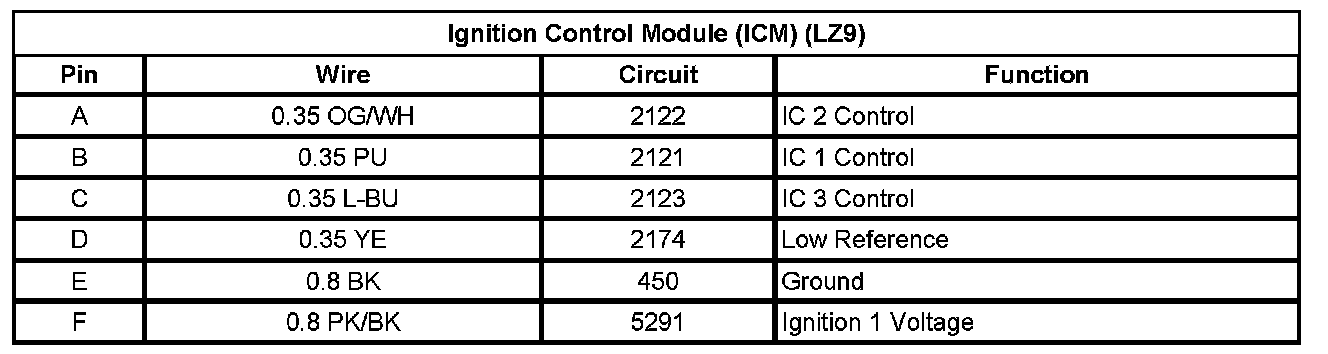

Ignition Control Module (ICM) (LZ9)
