Engine Control Module
Component Connector End Views

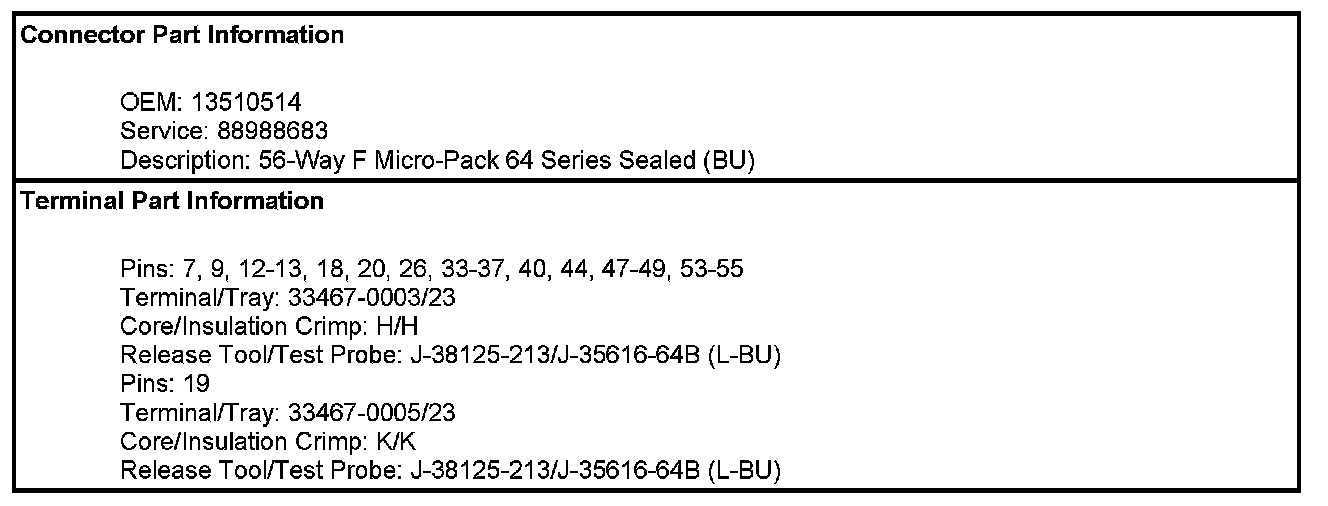

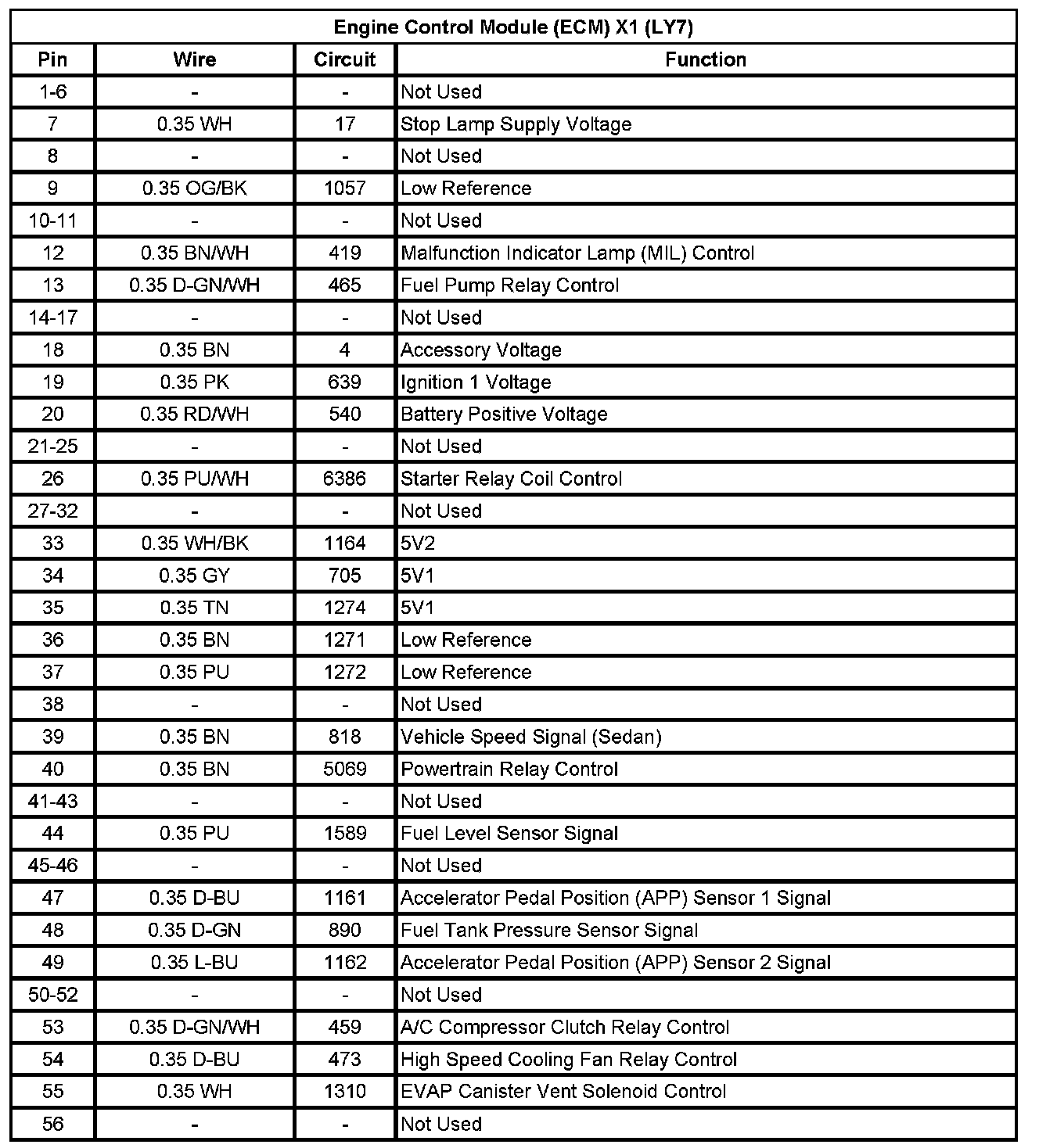

Engine Control Module (ECM) X1 (LY7)

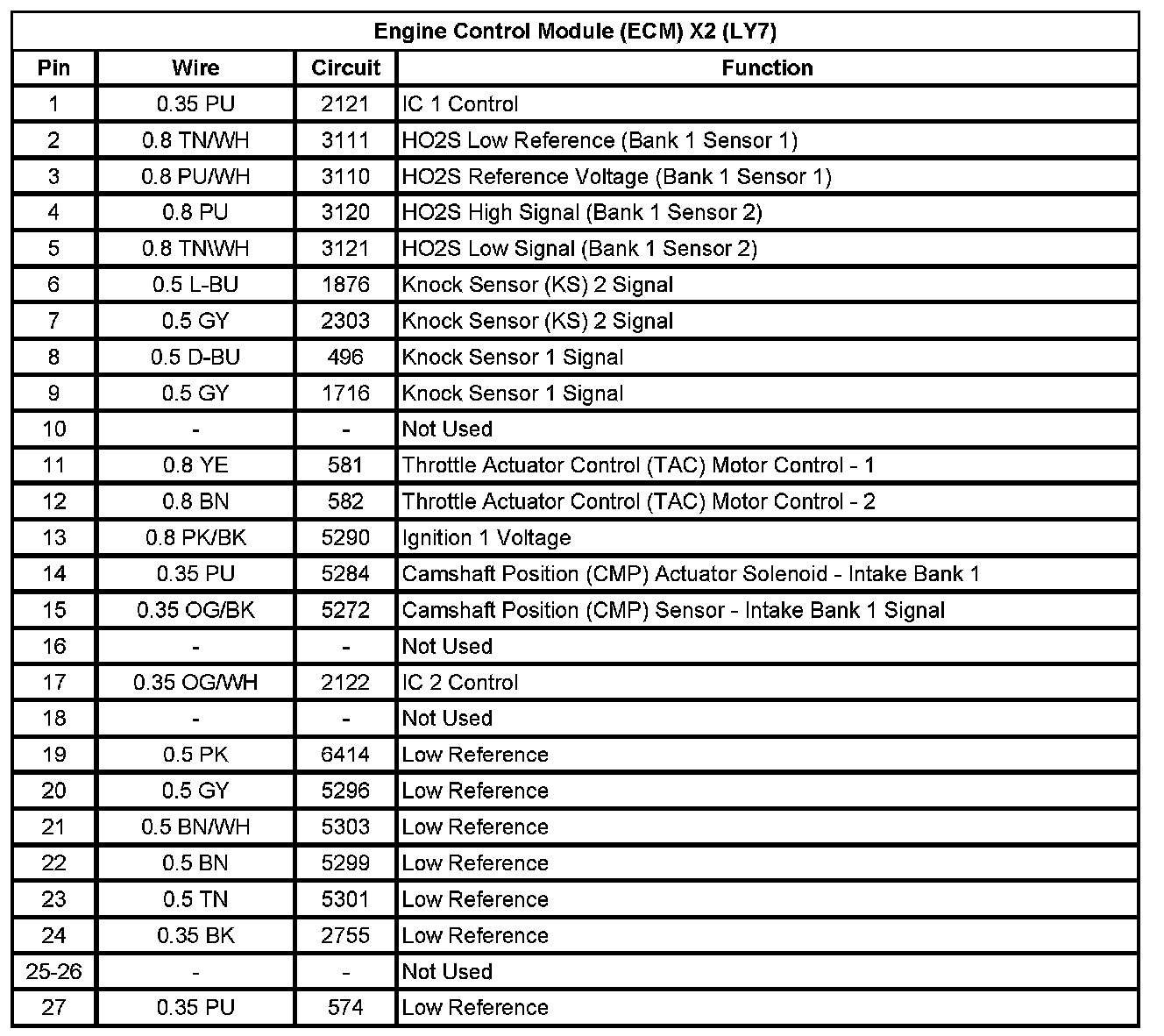

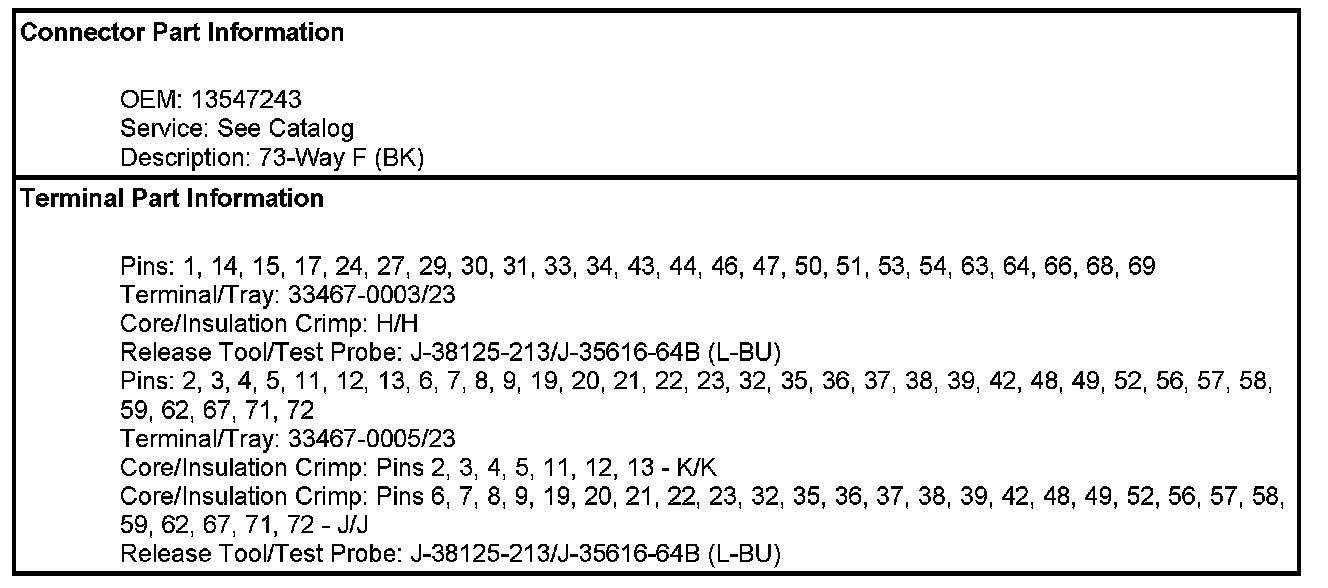

Engine Control Module (ECM) X2 (LY7)
Engine Control Module (ECM) X2 (LY7) (Pin 1 To 27):
Engine Control Module (ECM) X2 (LY7) (Pin 28 To 73):

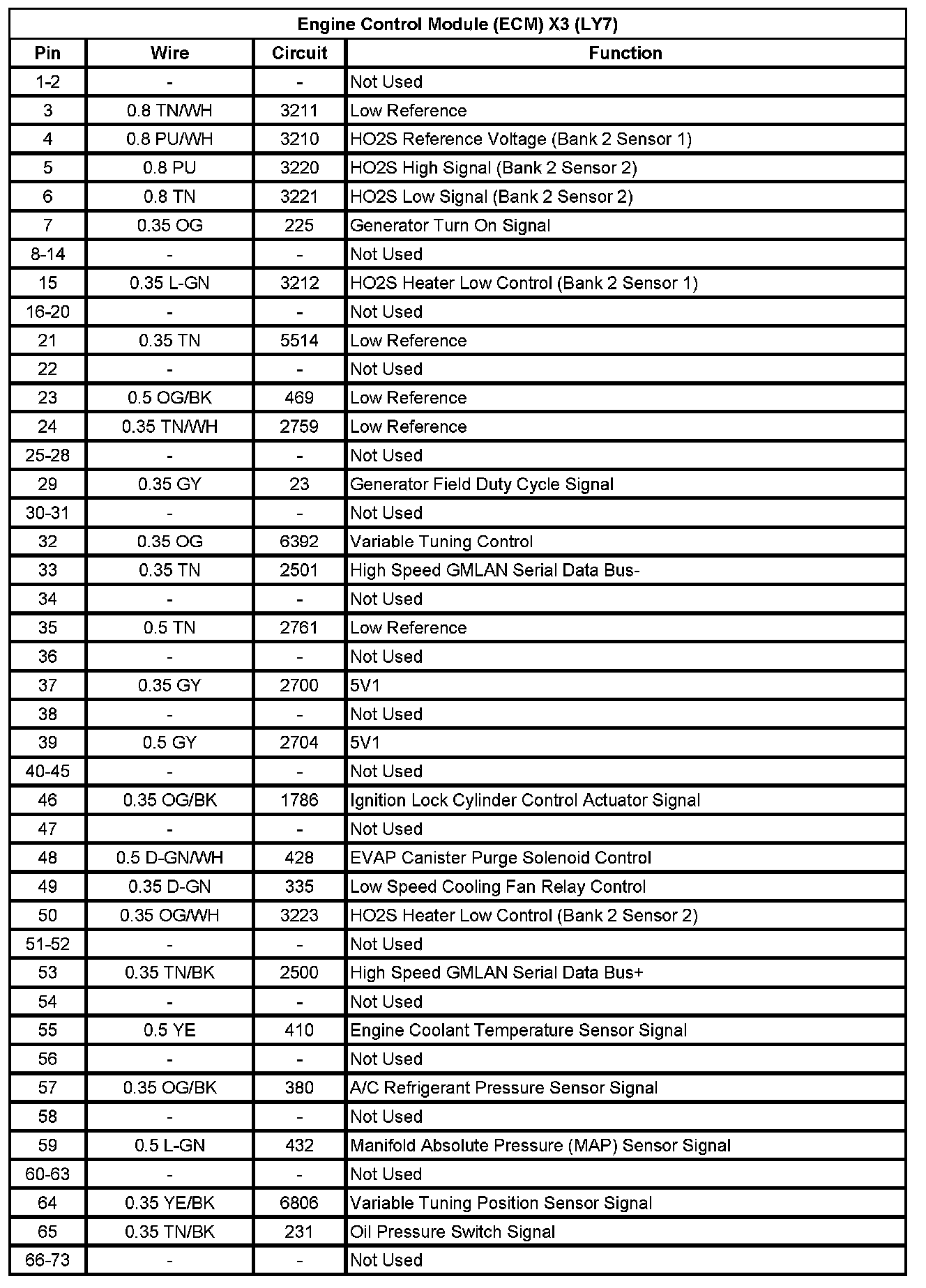

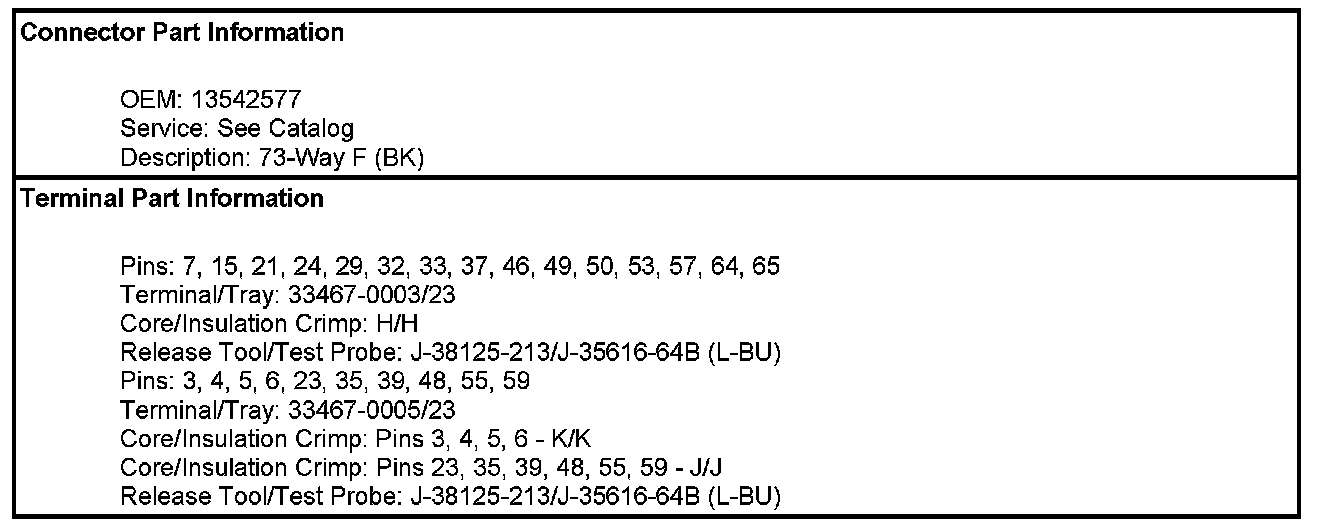

Engine Control Module (ECM) X3 (LY7)
