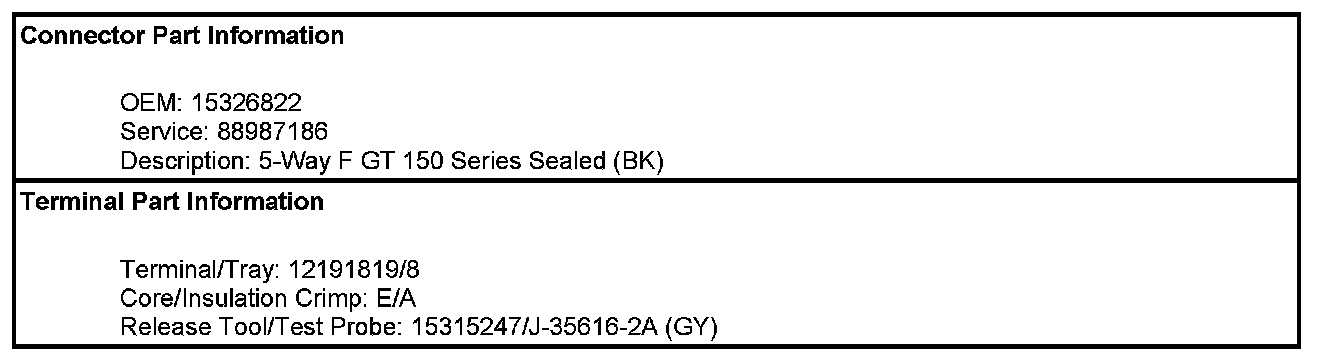

Component Connector End Views - Continued

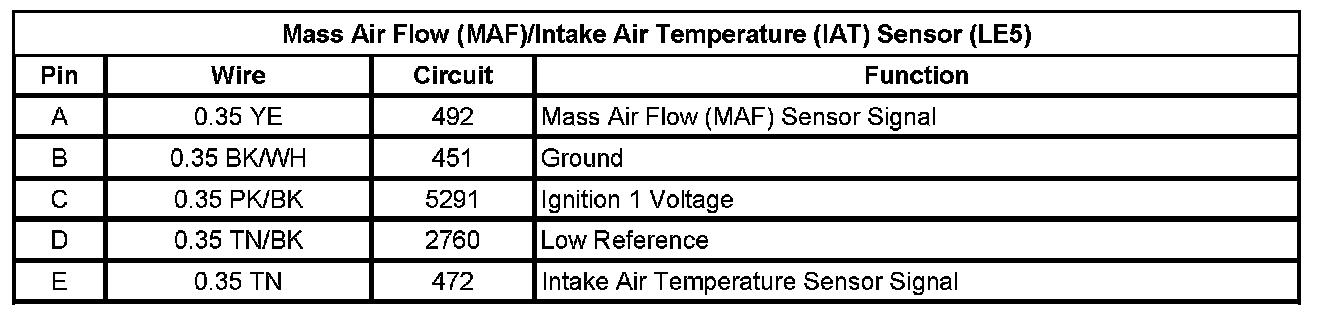

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LE5)
