Wheel Speed Sensor



Component Connector End Views - Continued

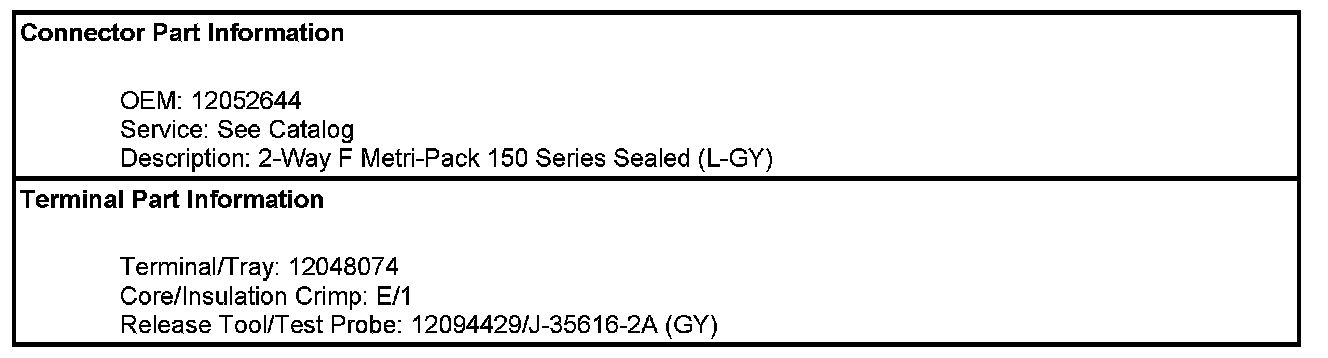

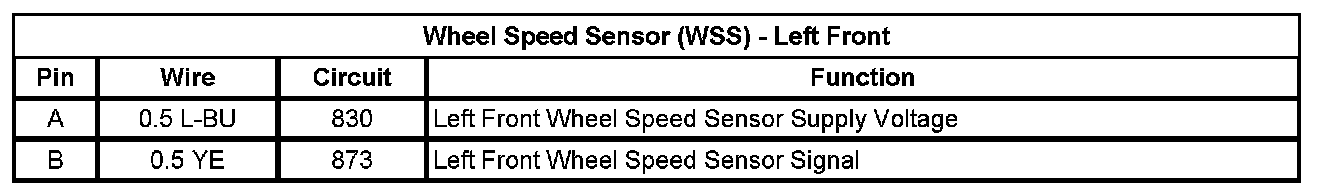

Wheel Speed Sensor (WSS) - Left Front

Reverse Lockout Solenoid:

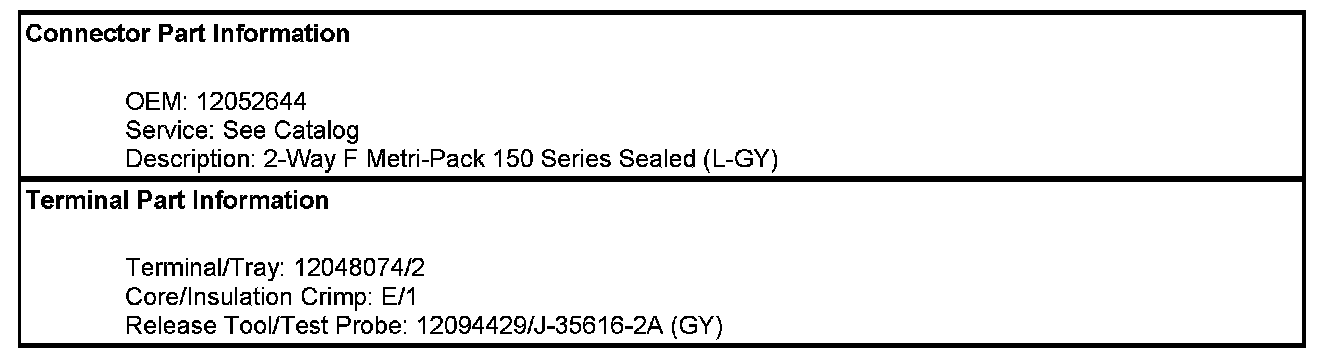

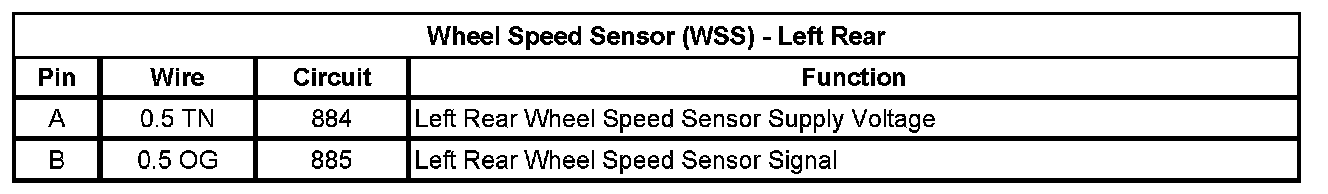

Wheel Speed Sensor (WSS) - Left Rear

Reverse Lockout Solenoid:

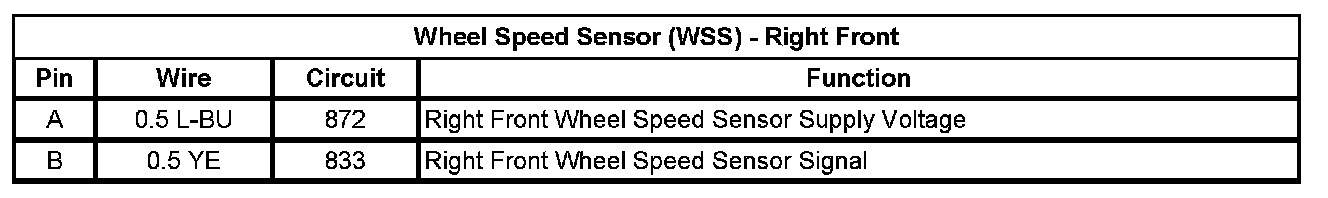

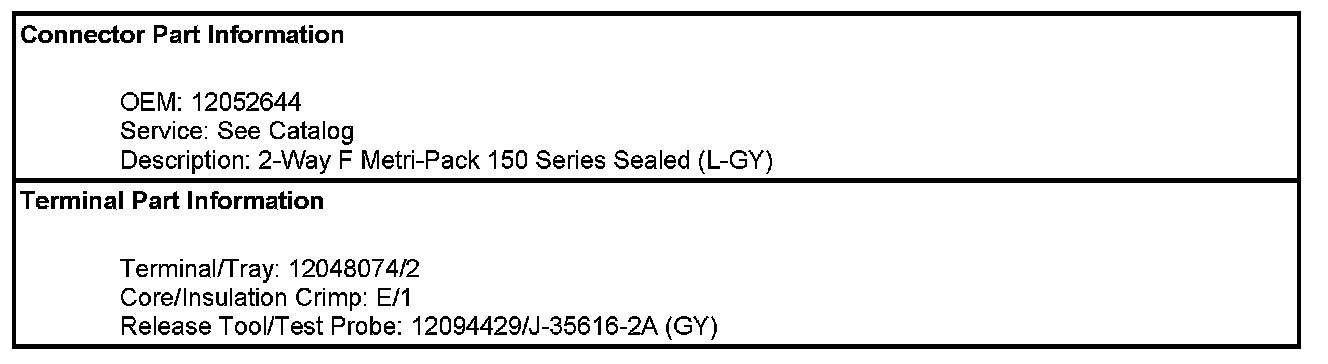

Wheel Speed Sensor (WSS) - Right Front

Reverse Lockout Solenoid:

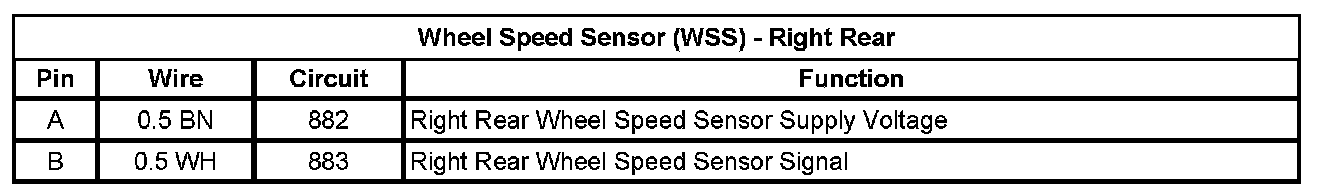

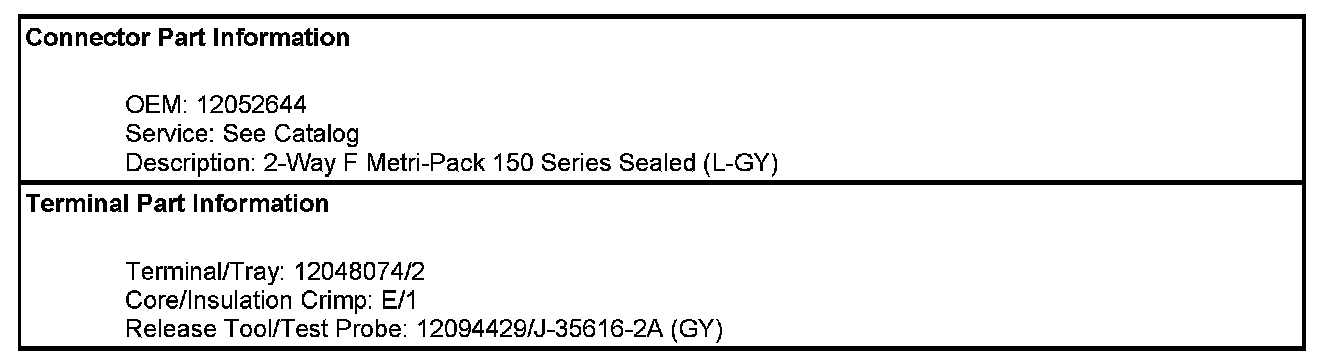

Wheel Speed Sensor (WSS) - Right Rear

Reverse Lockout Solenoid:
