Sunroof / Moonroof Module



Component Connector End Views - Continued

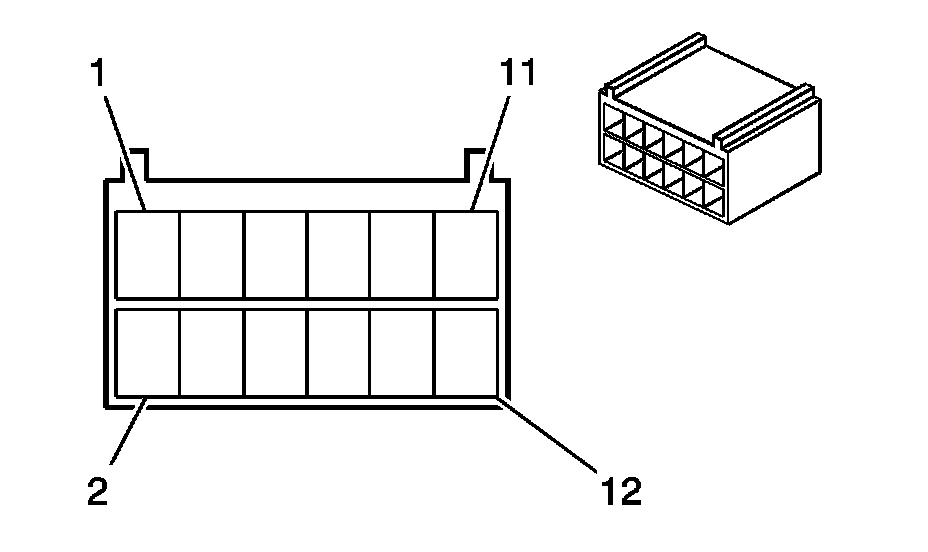

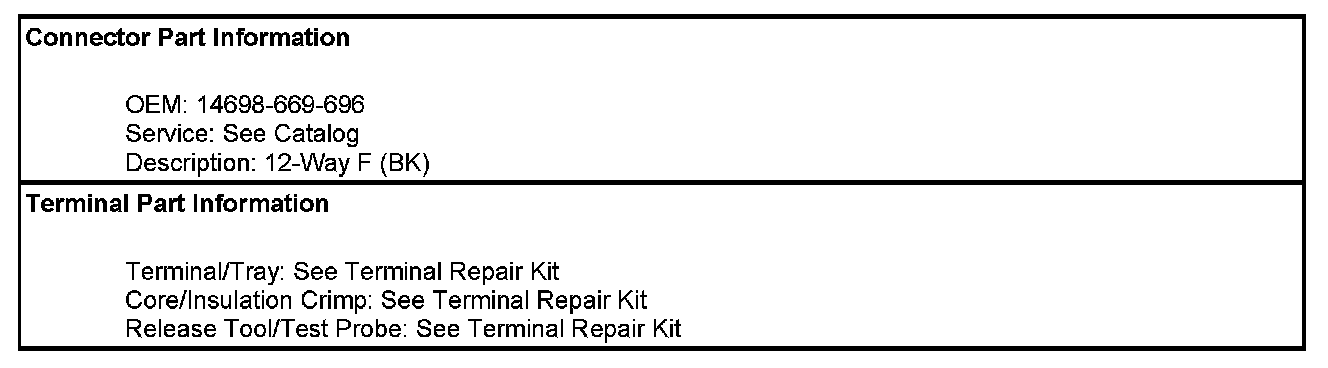

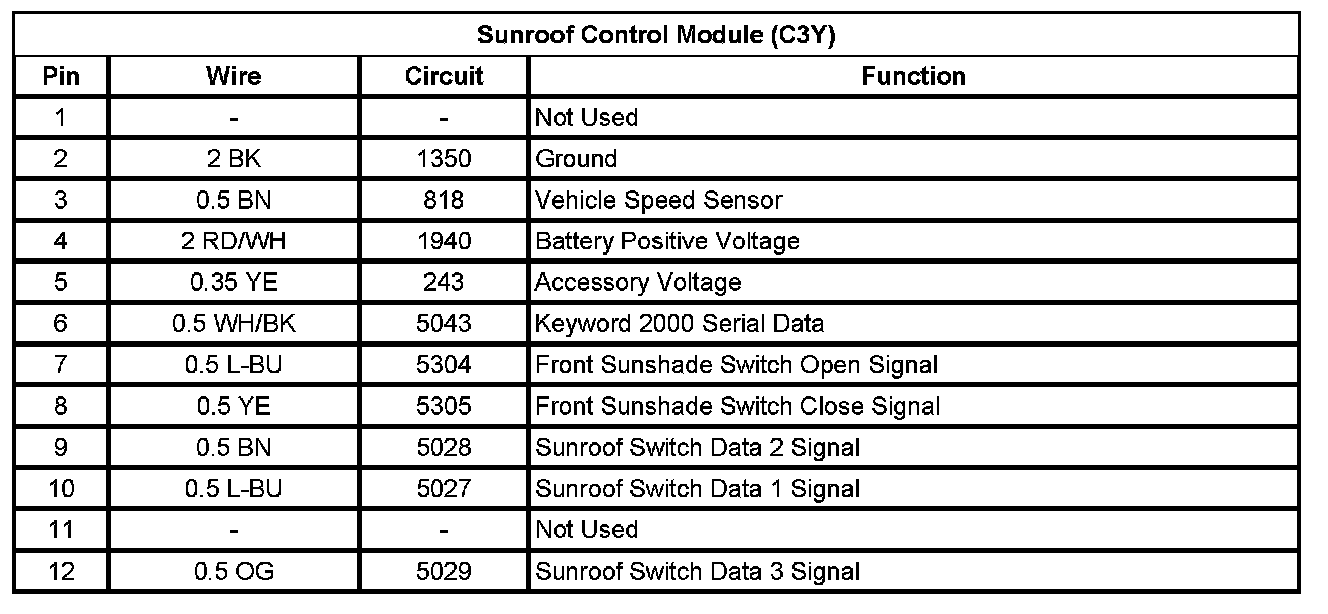

Sunroof Control Module (C3Y)

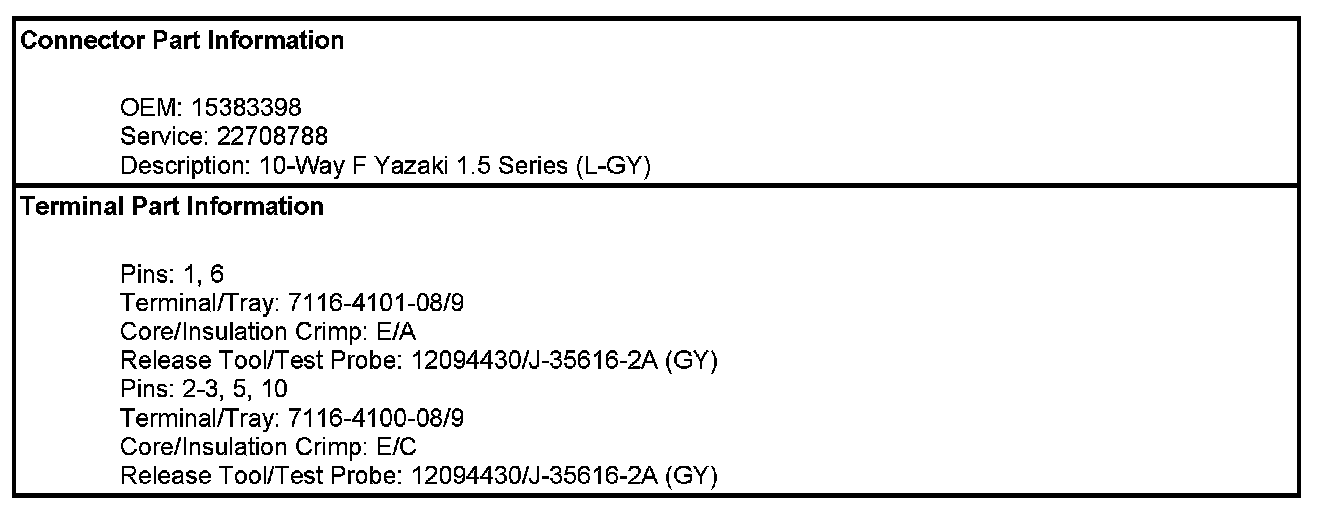

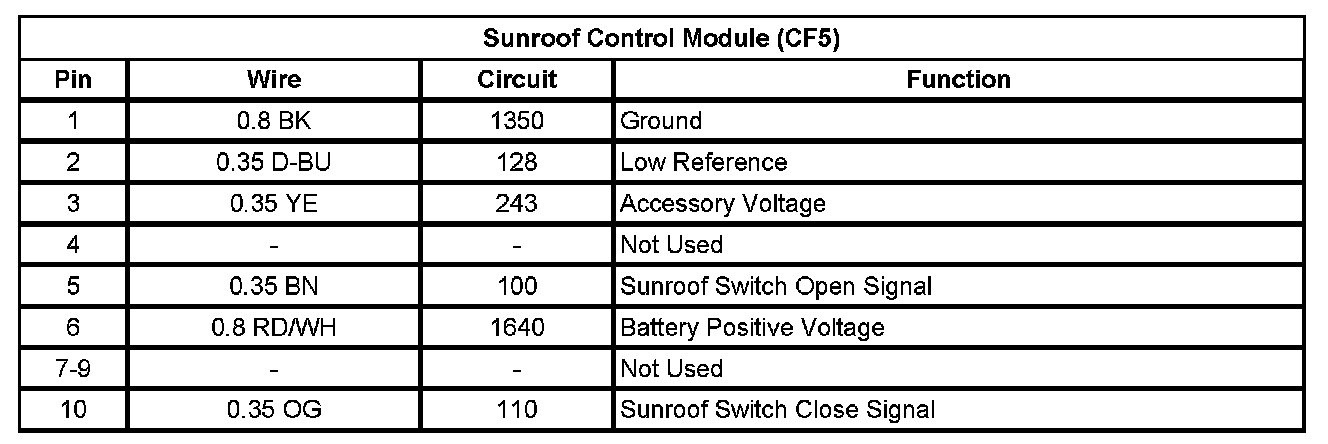

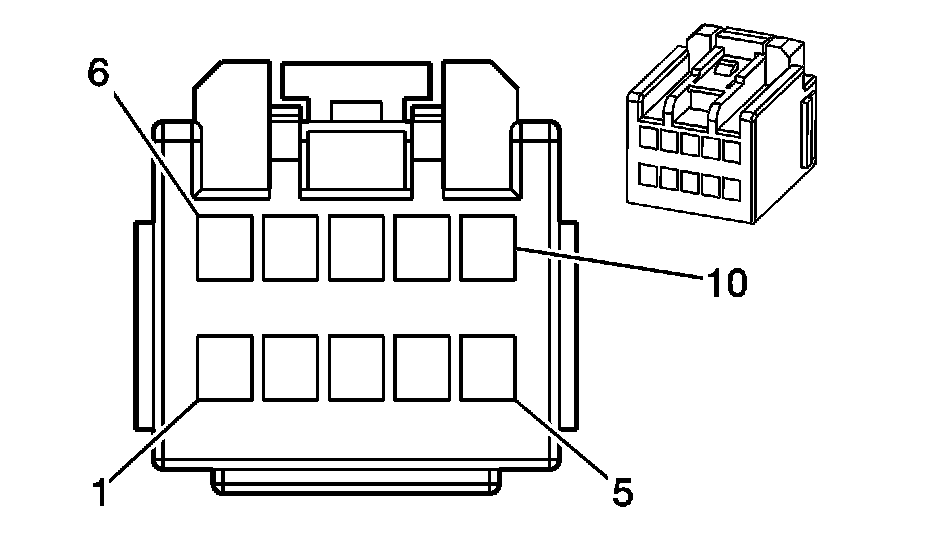

Sunroof Control Module (CF5)

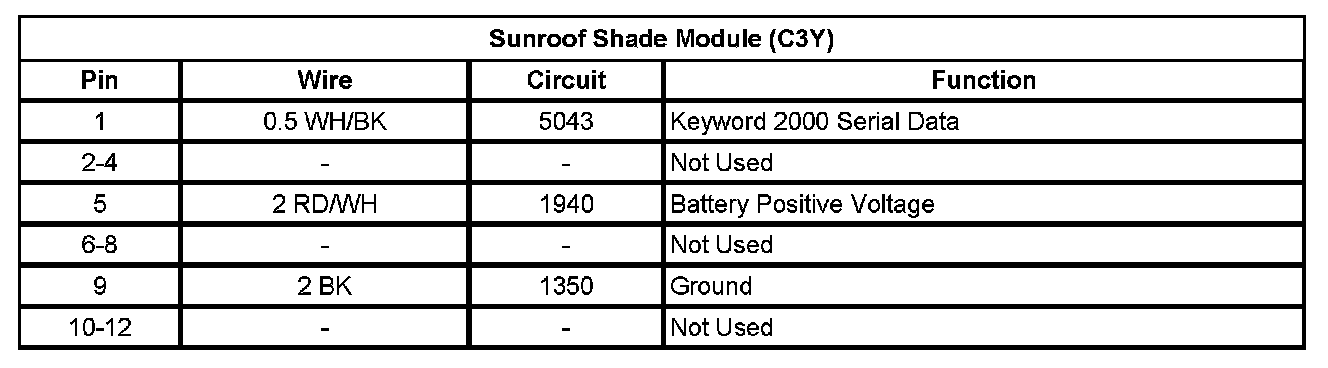

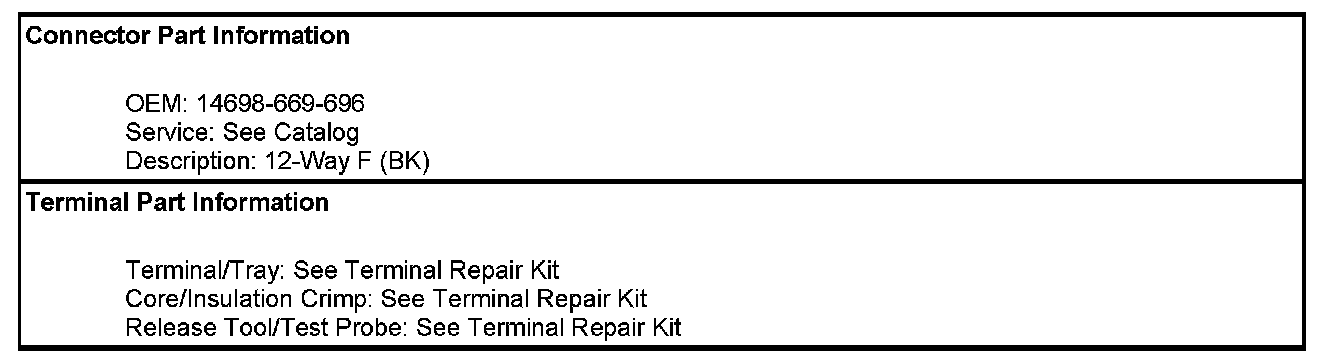

Sunroof Shade Module (C3Y)
