Steering Control Module



Component Connector End Views - Continued

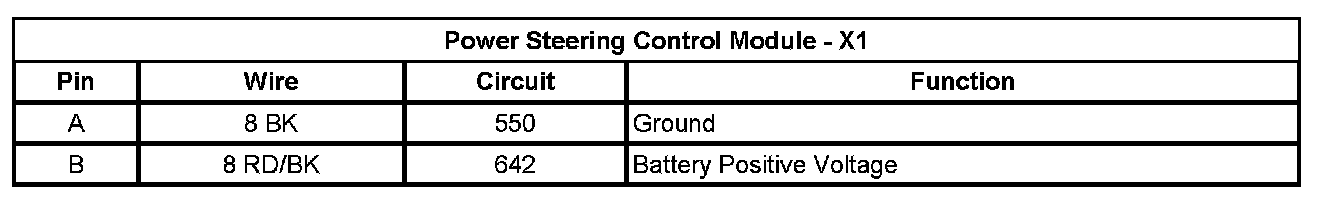

Power Steering Control Module - X1

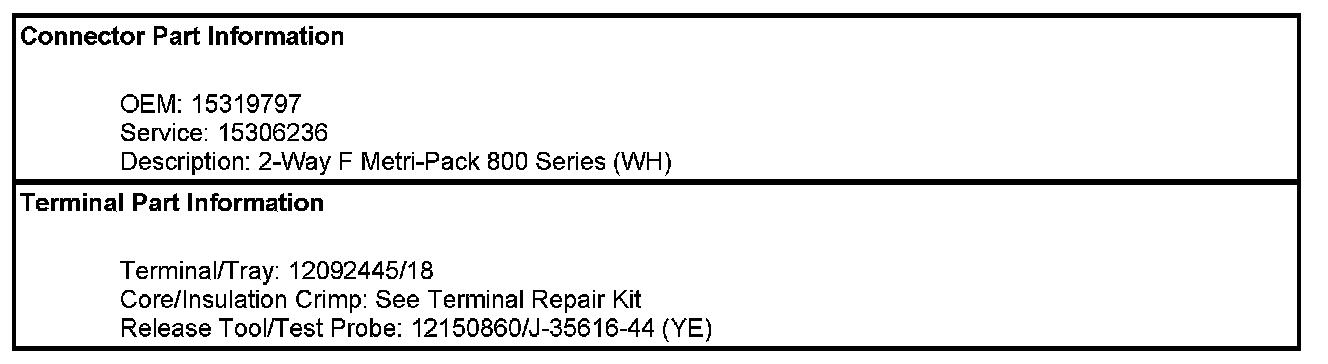

Power Steering Control Module - C1:

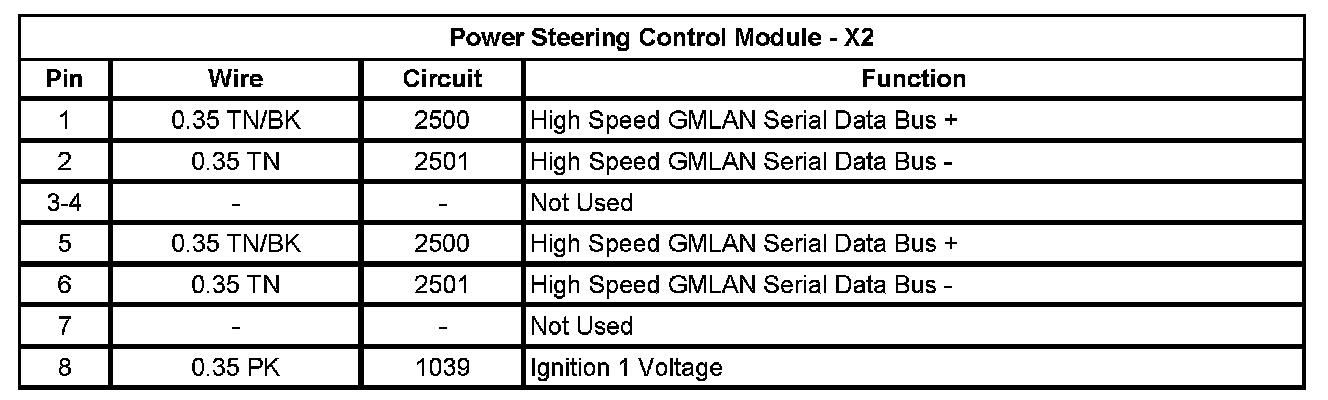

Power Steering Control Module - X2

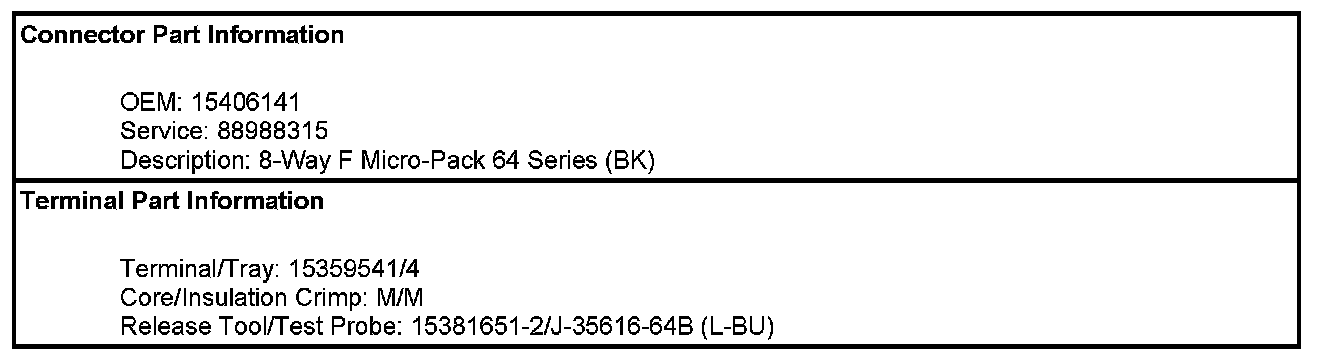

Power Steering Control Module - C2:

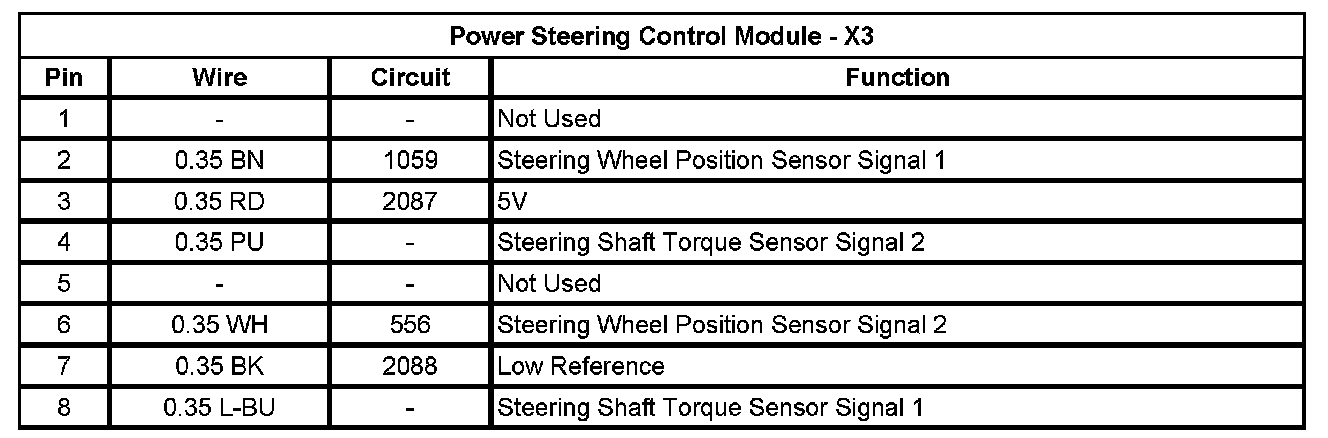

Power Steering Control Module - X3

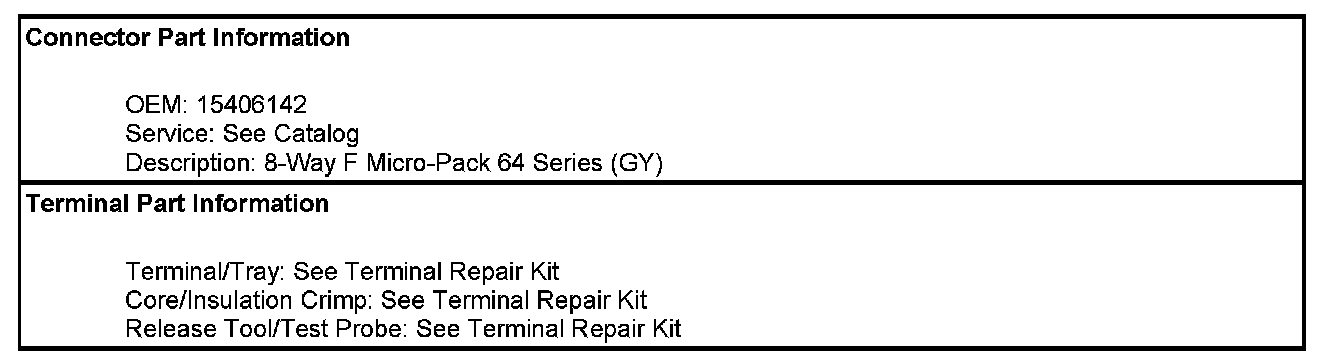

Power Steering Control Module - C2:
