Ignition Control Module



Component Connector End Views - Continued

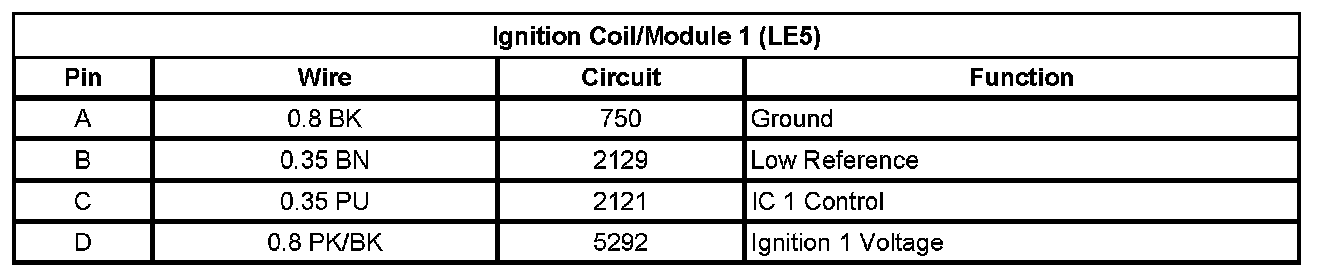

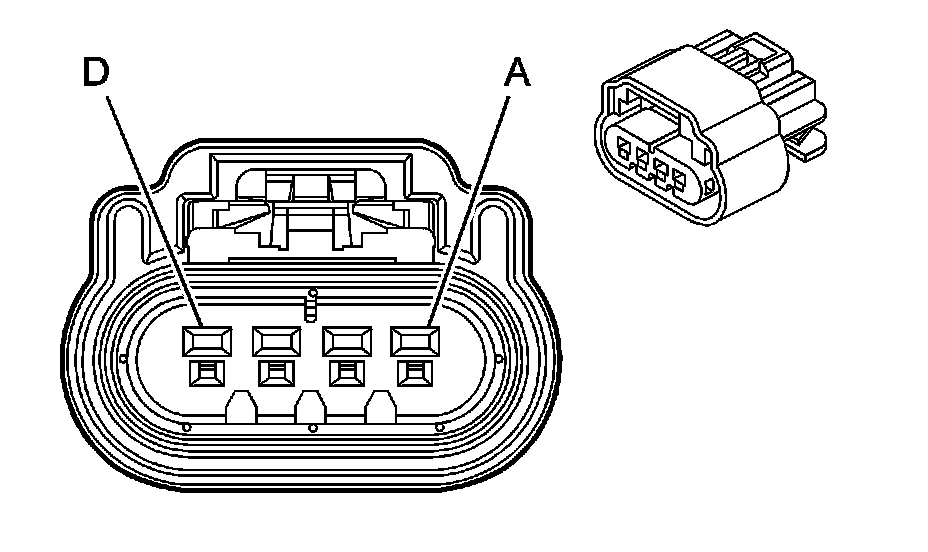

Ignition Coil/Module 1 (LE5)

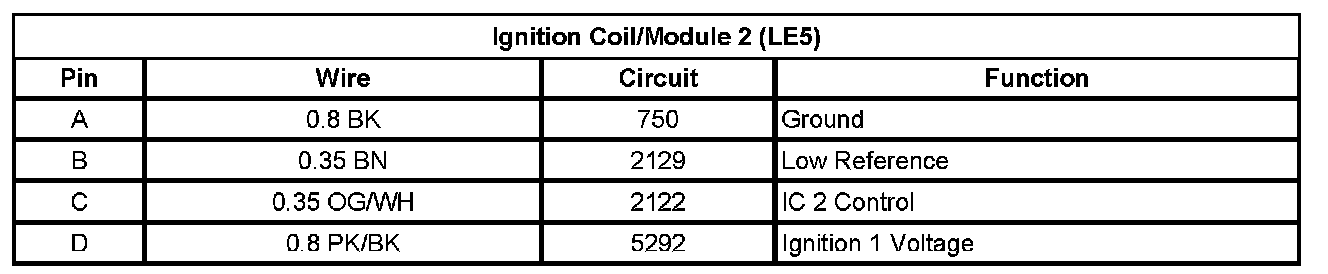

Ignition Coil/Module 2 (LE5)

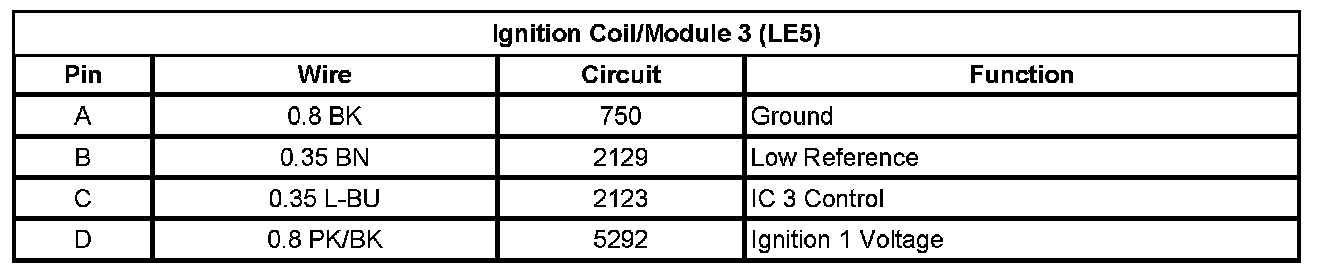

Ignition Coil/Module 3 (LE5)

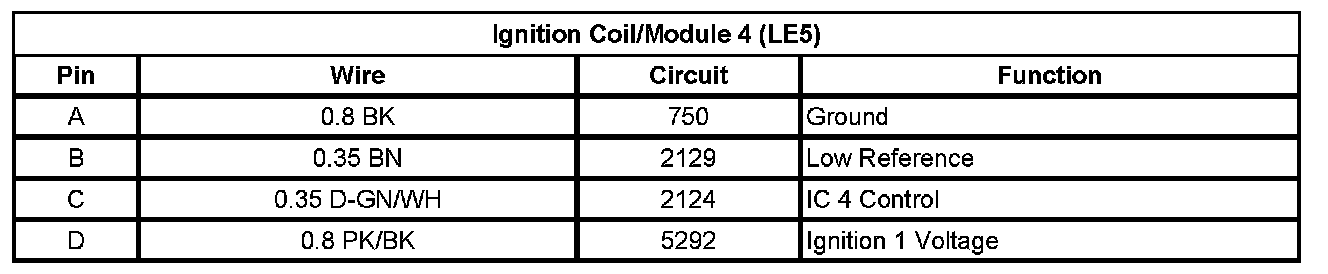

Ignition Coil/Module 4 (LE5)
