Engine Control Module



Component Connector End Views

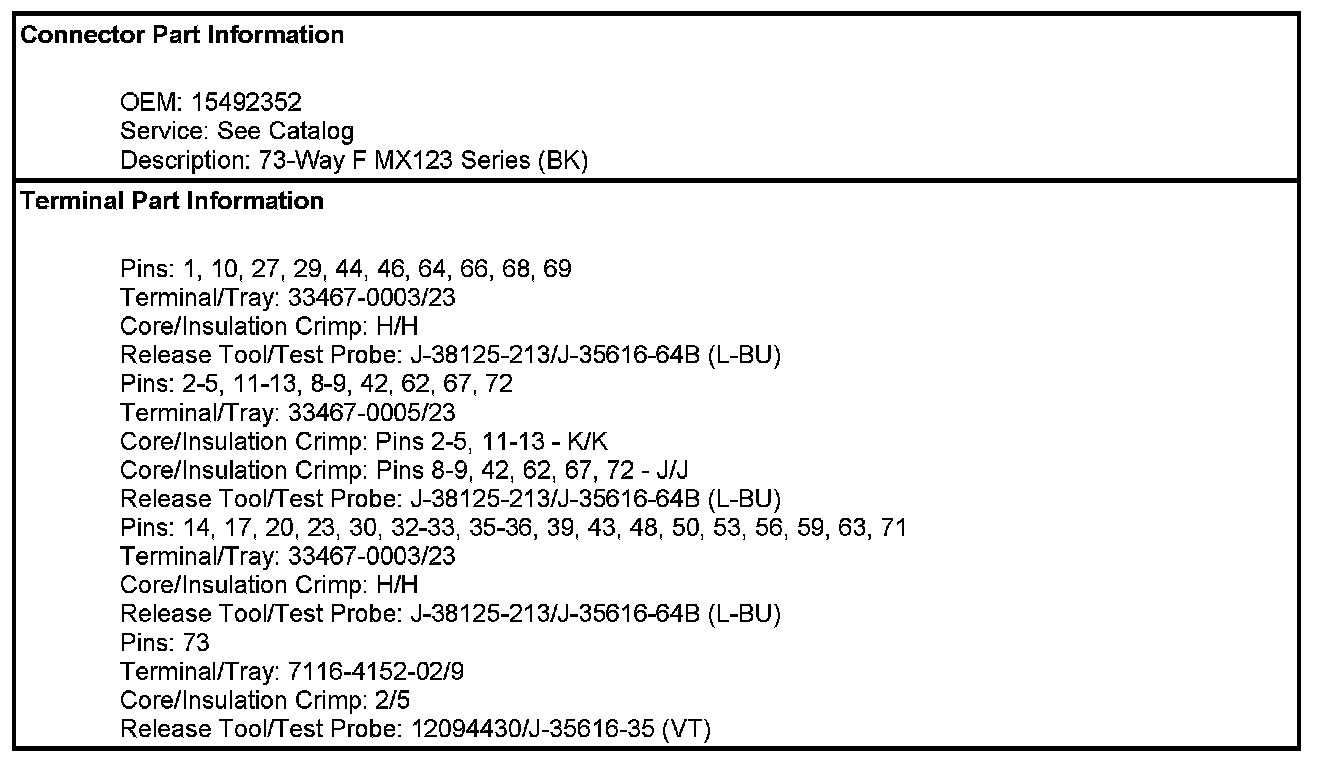

Engine Control Module (ECM) X1 (LE5)

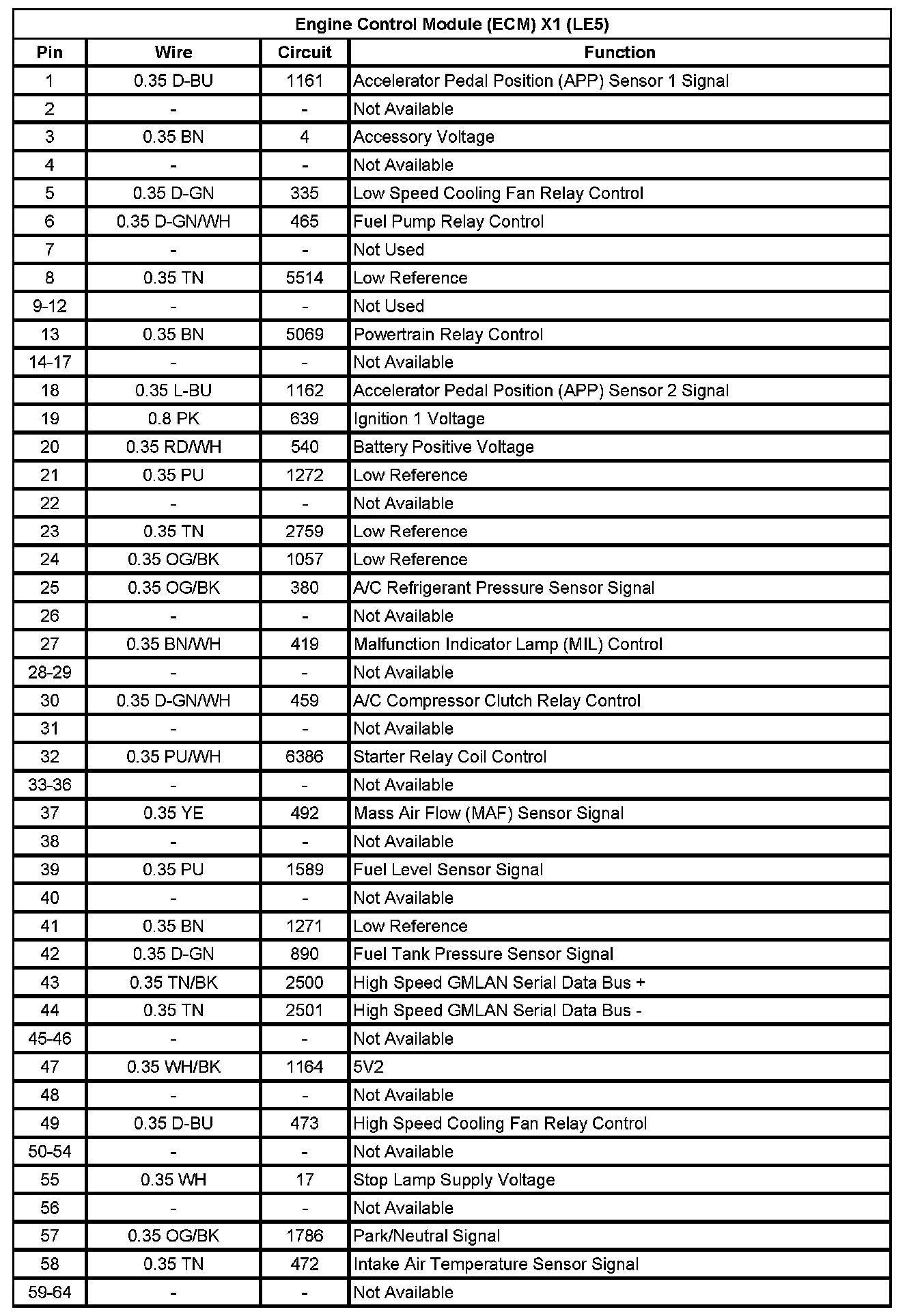

Engine Control Module (ECM) X1 (LE5) ( Pin 1 To 64):

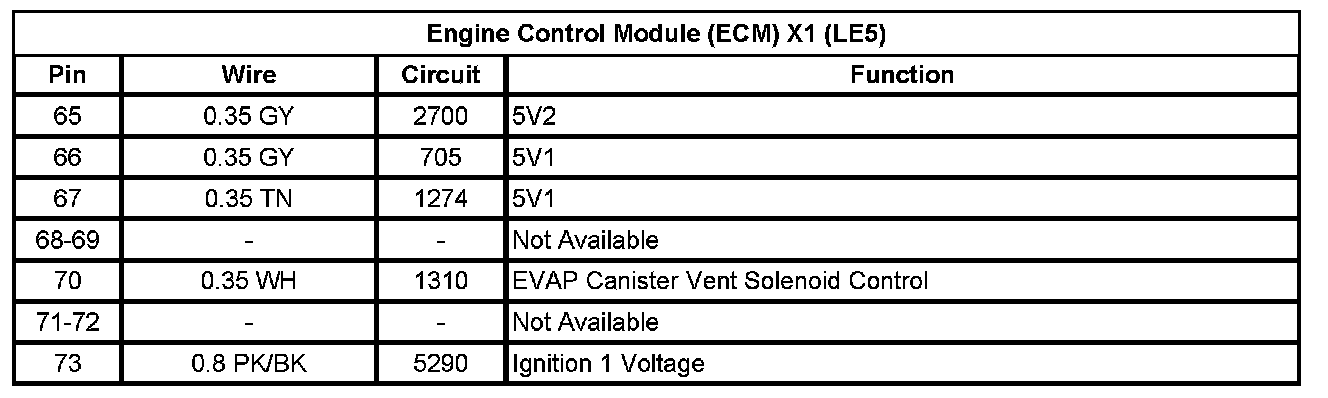

Engine Control Module (ECM) X1 (LE5) ( Pin 65 To 73):

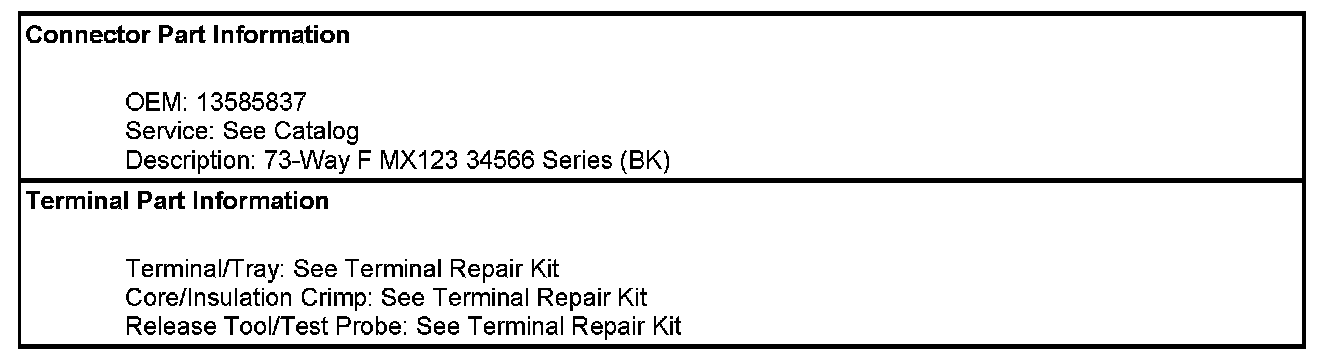

Engine Control Module (ECM) X2 (LE5)

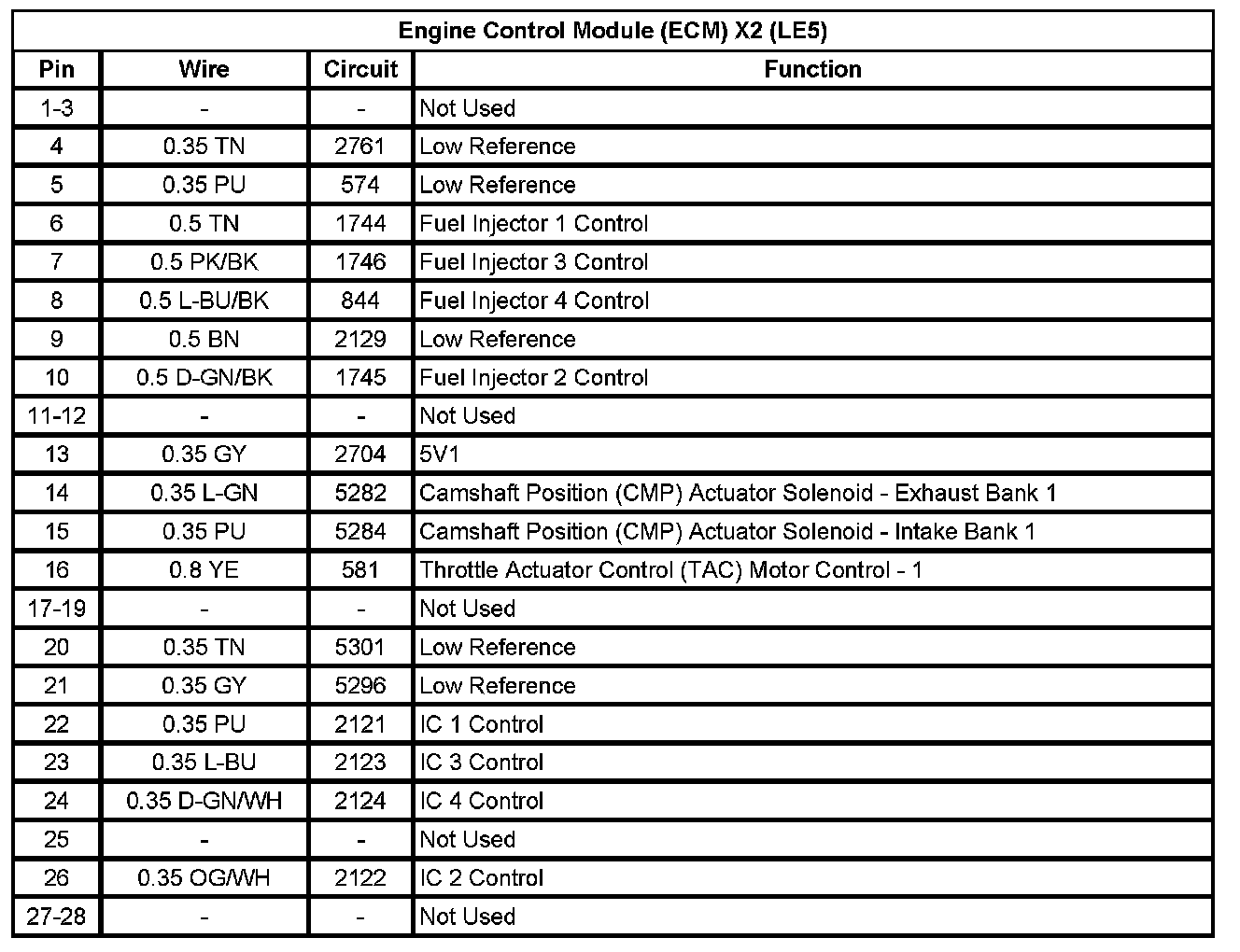

Engine Control Module (ECM) X2 (LE5) (Pin 1 To 28):

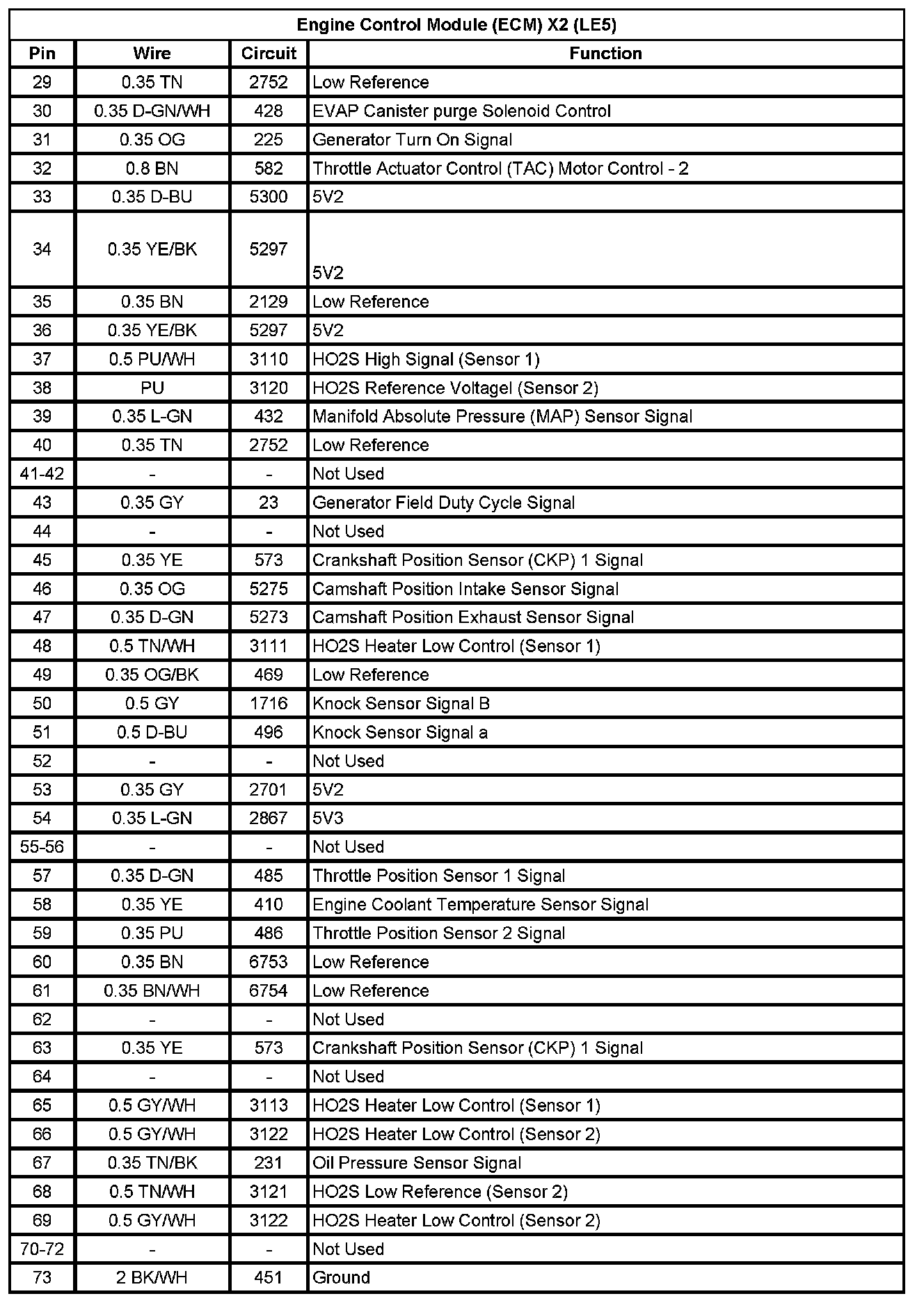

Engine Control Module (ECM) X2 (LE5) (Pin 29 To 73):
