Central Control Module
Component Connector End Views - Continued

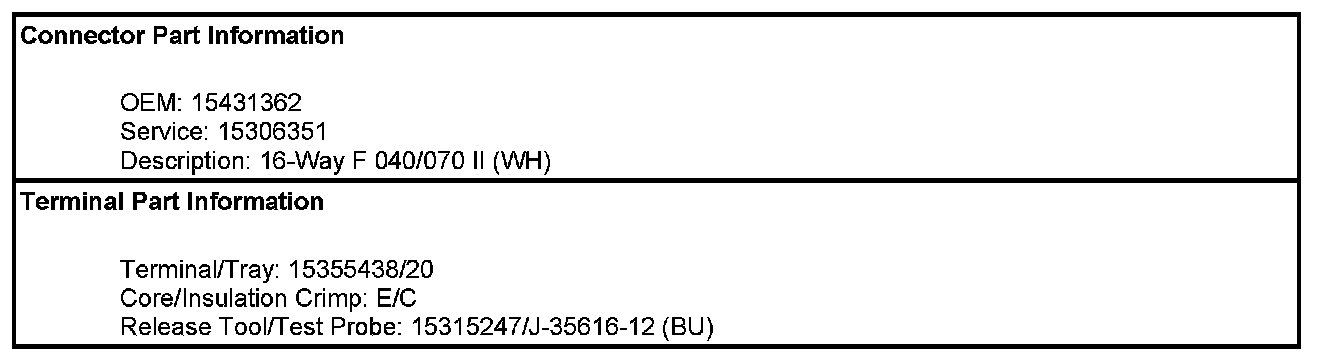

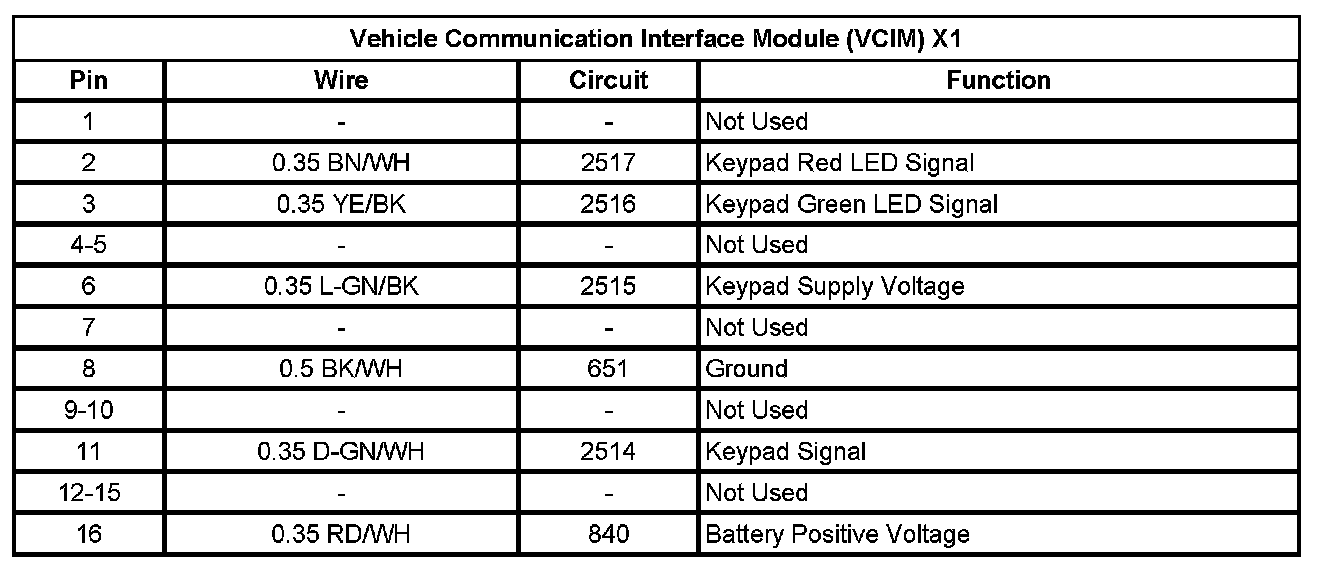

Vehicle Communication Interface Module (VCIM) X1

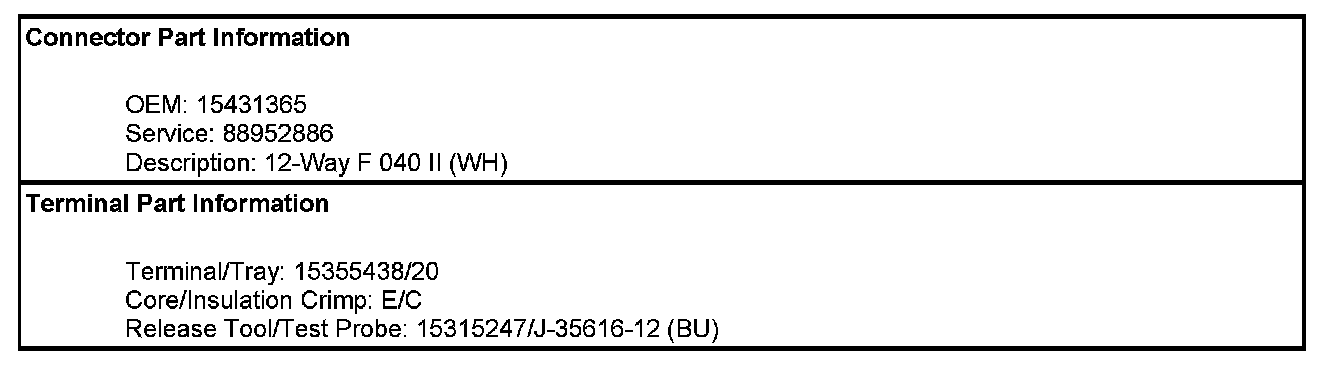

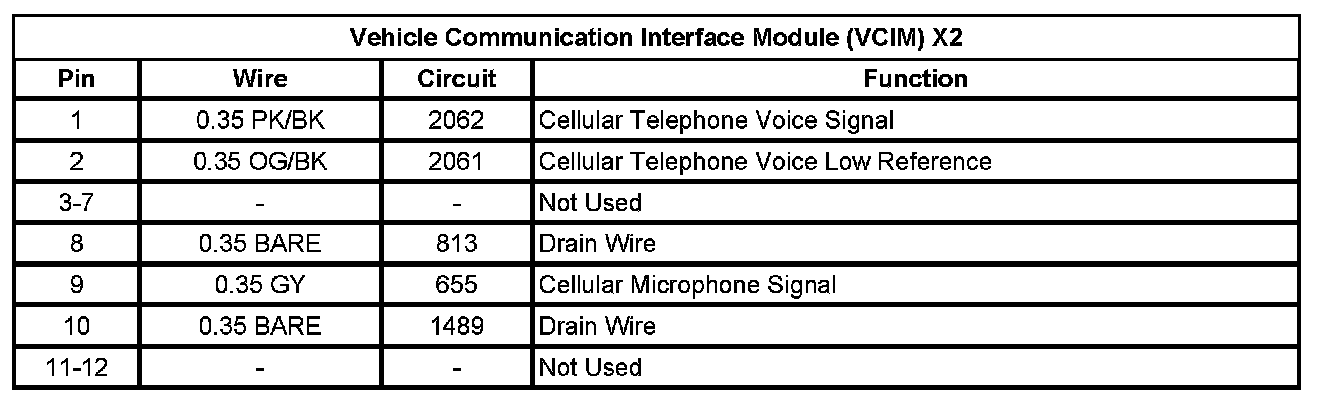

Vehicle Communication Interface Module (VCIM) X2

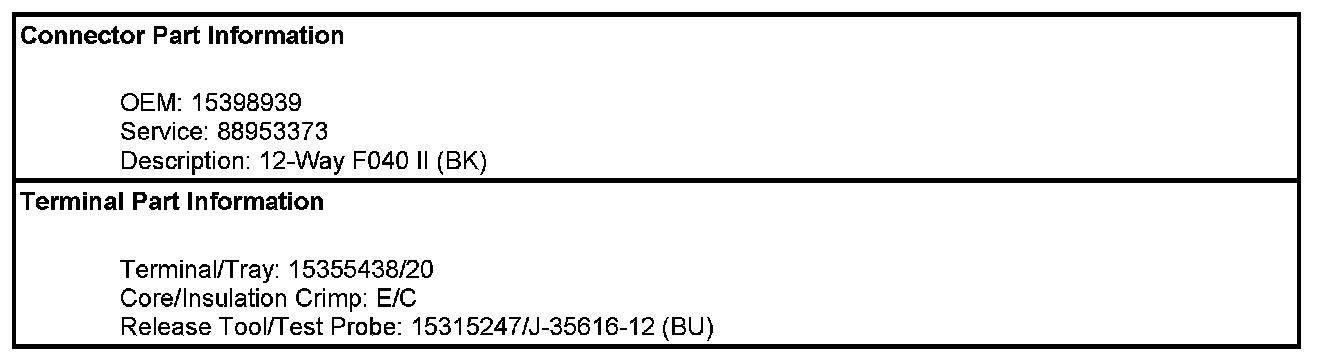

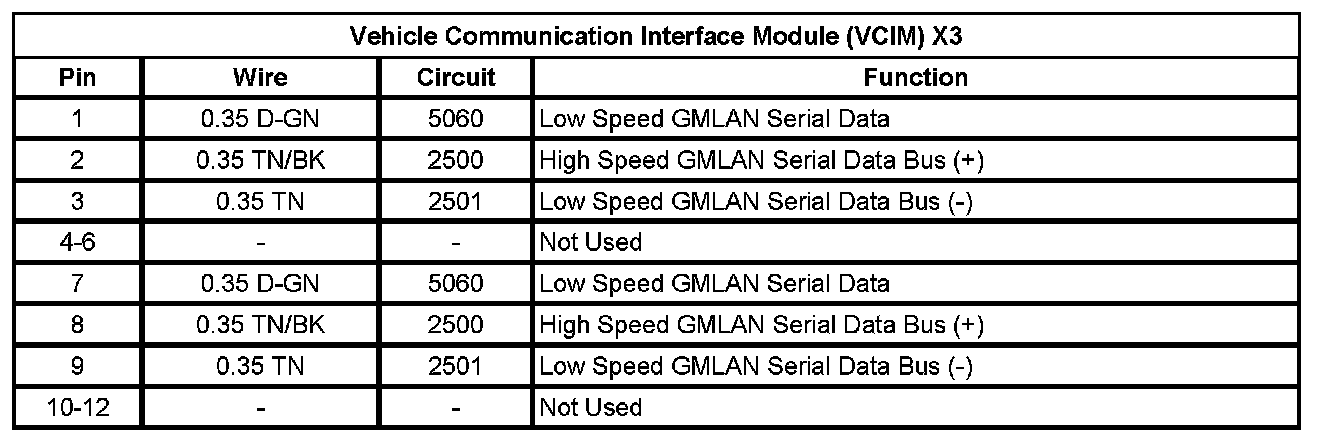

Vehicle Communication Interface Module (VCIM) X3
Component Connector End Views - Continued
Vehicle Communication Interface Module (VCIM) X1
Vehicle Communication Interface Module (VCIM) X2
Vehicle Communication Interface Module (VCIM) X3
