Home >> Pontiac >> 2008 >> G5 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

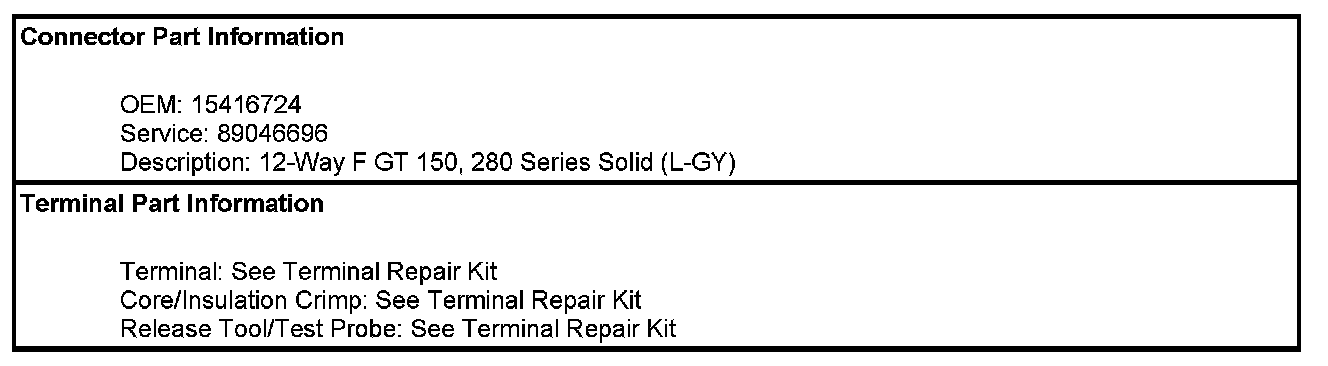

Component Connector End Views - Continued

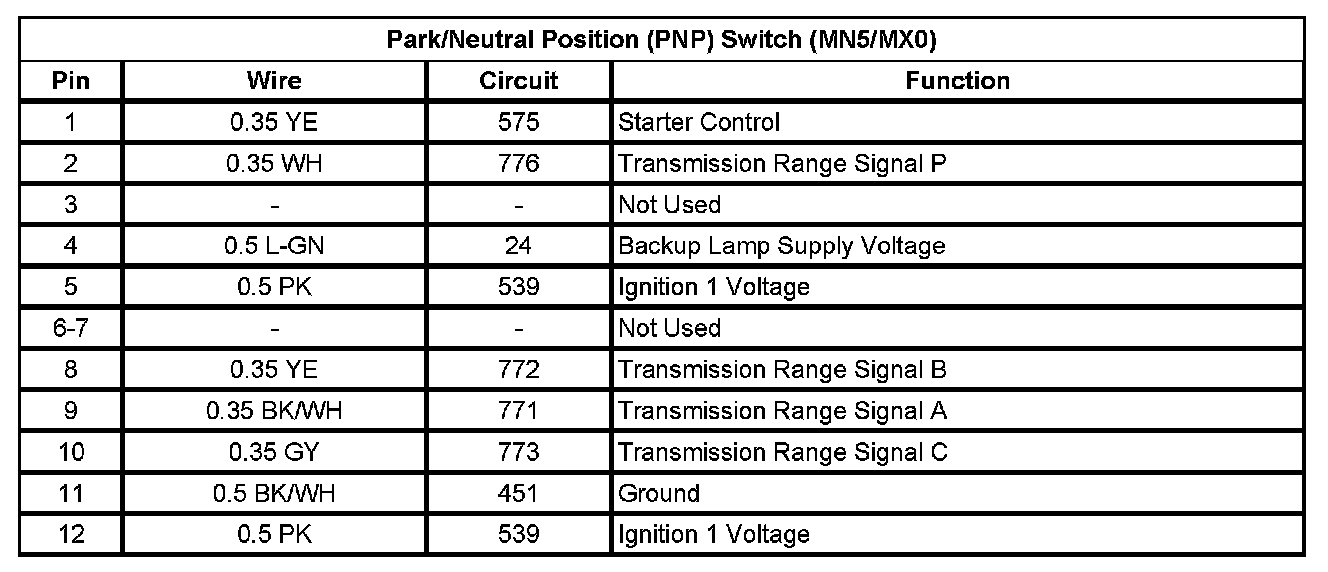

Park/Neutral Position (PNP) Switch (MN5/MX0)
