Transmission Position Sensor/Switch: Diagrams

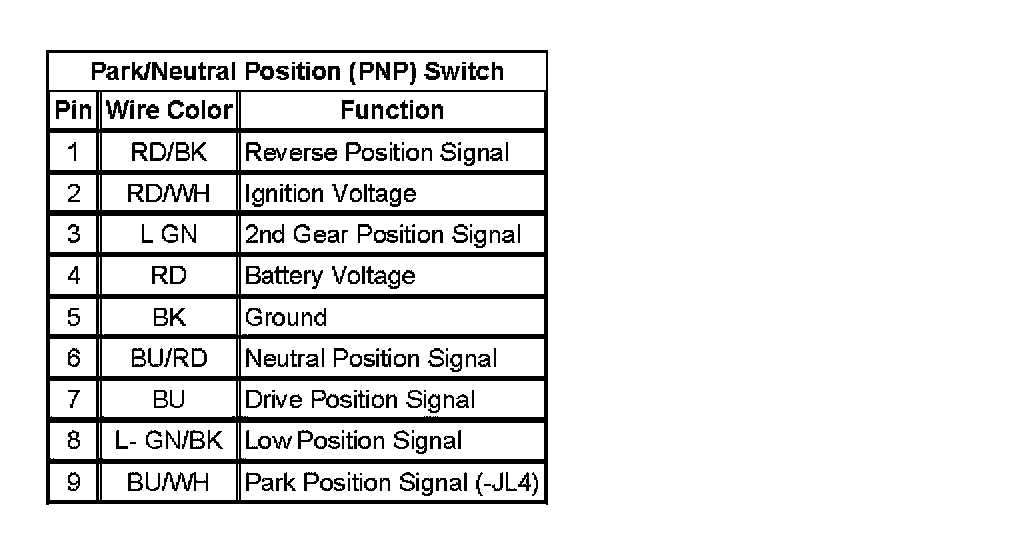

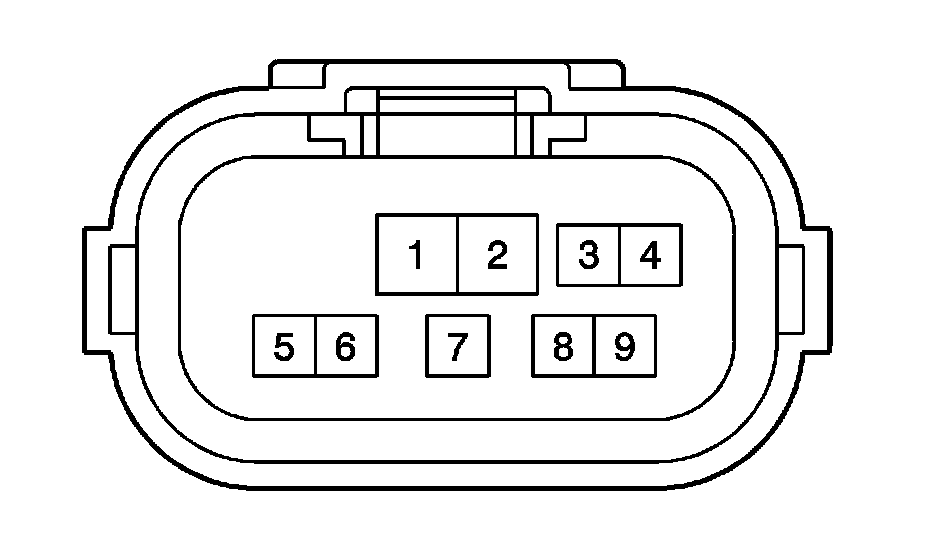

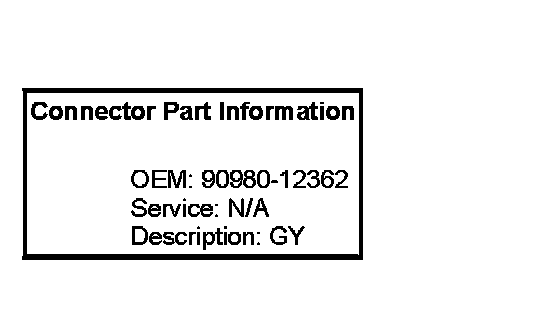

Park/Neutral Position (PNP) Switch







Park/Neutral Position (PNP) Switch:
