Home >> Pontiac >> 2007 >> Vibe L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Diagrams

Electronic Throttle Control Module: Diagrams

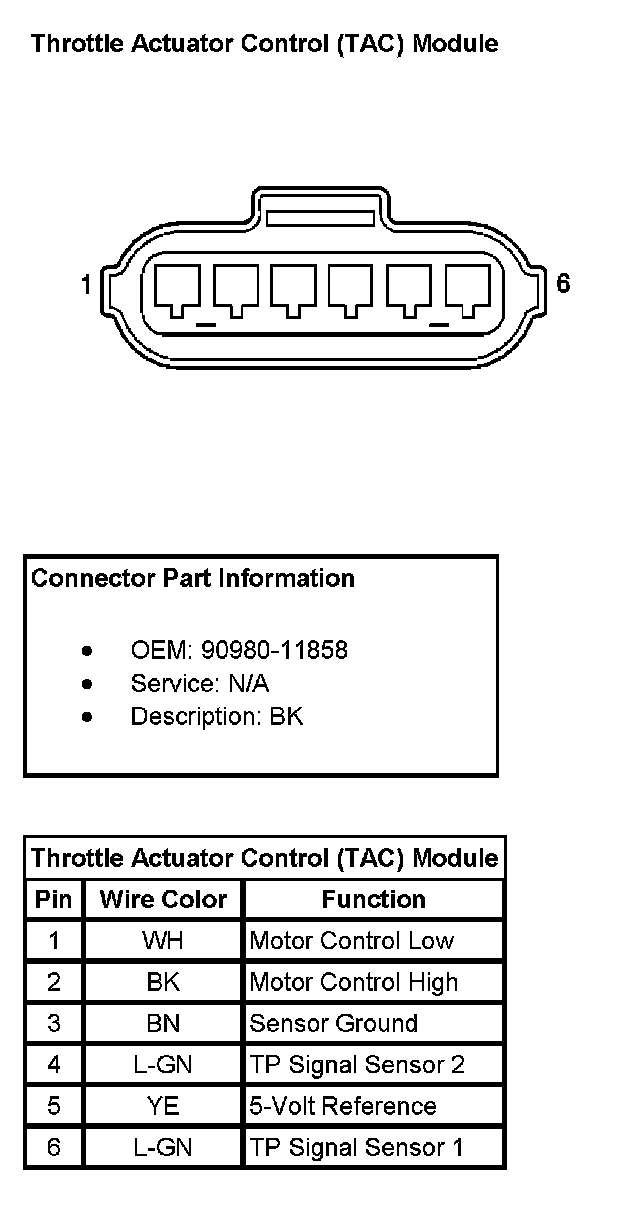

Throttle Actuator Control (TAC) Module:
