Back View of PCM Connector - C2

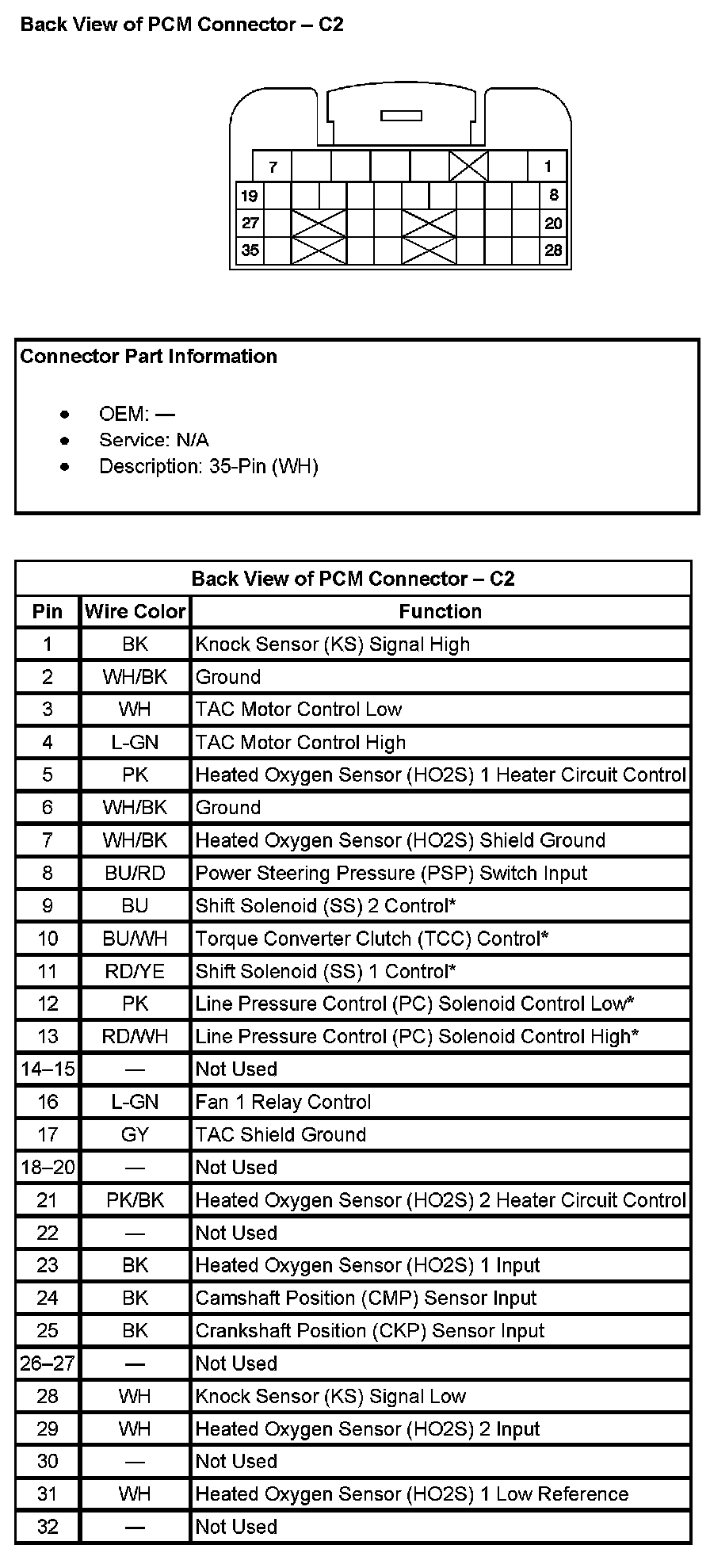

Back View Of PCM Connector - C2 (Part 1):

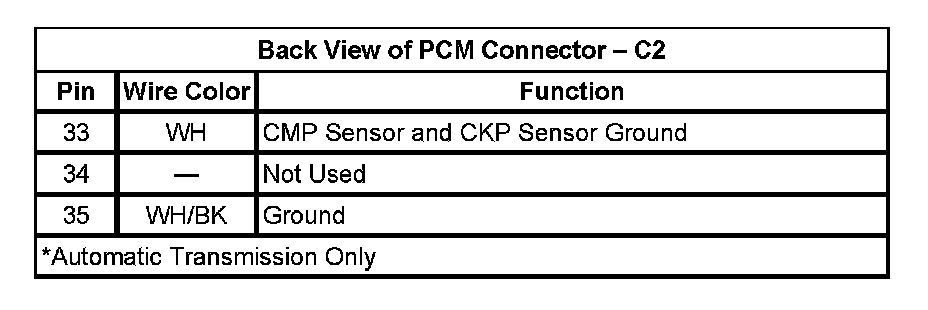

Back View Of PCM Connector - C2 (Part 2):
