Air Bag Control Module



SIR Connector End Views

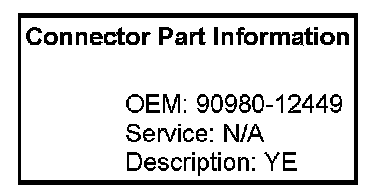

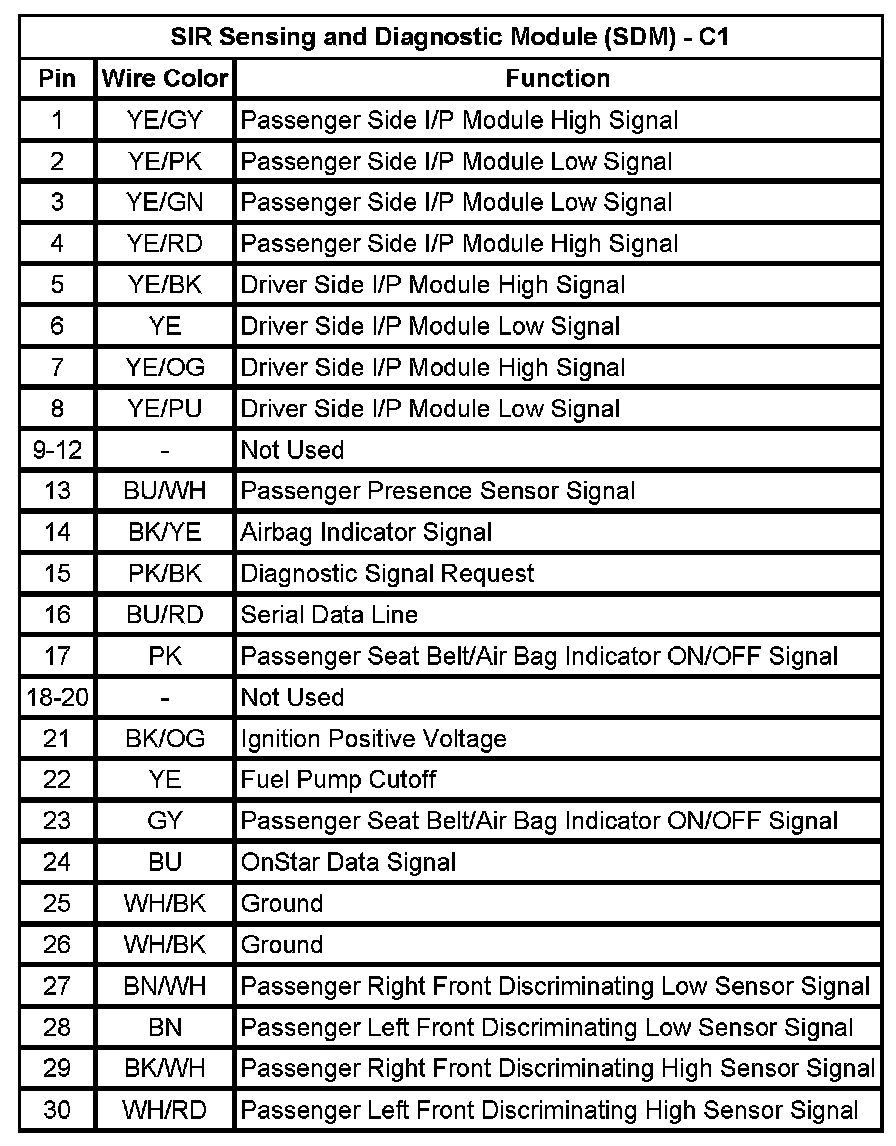

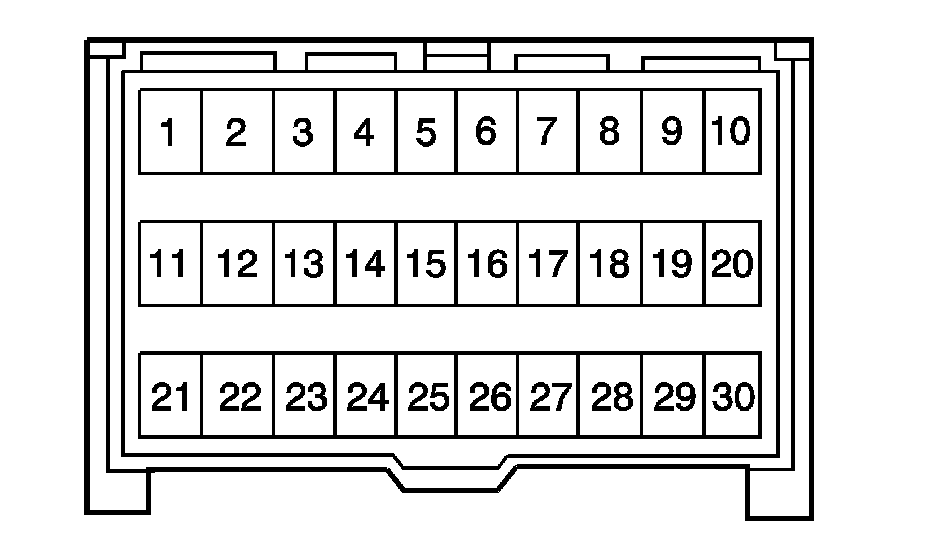

SIR Sensing and Diagnostic Module (SDM) - C1

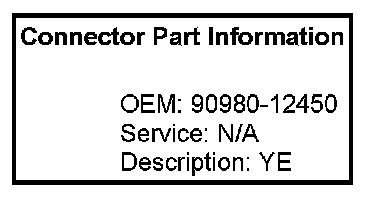

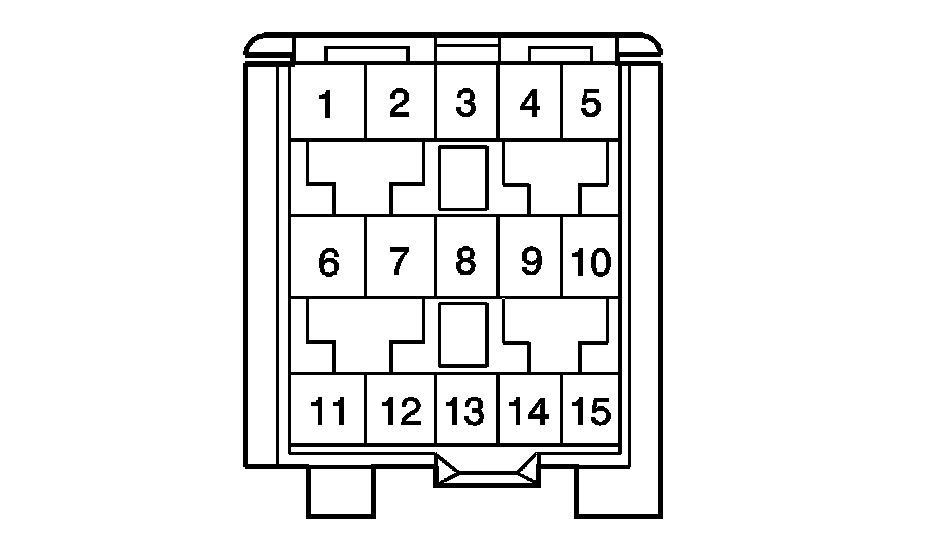

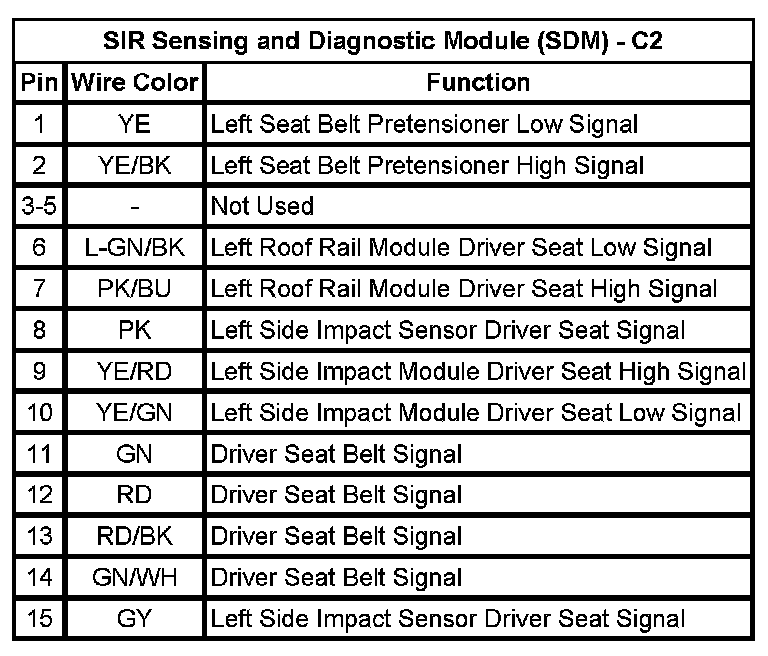

SIR Sensing and Diagnostic Module (SDM) - C2

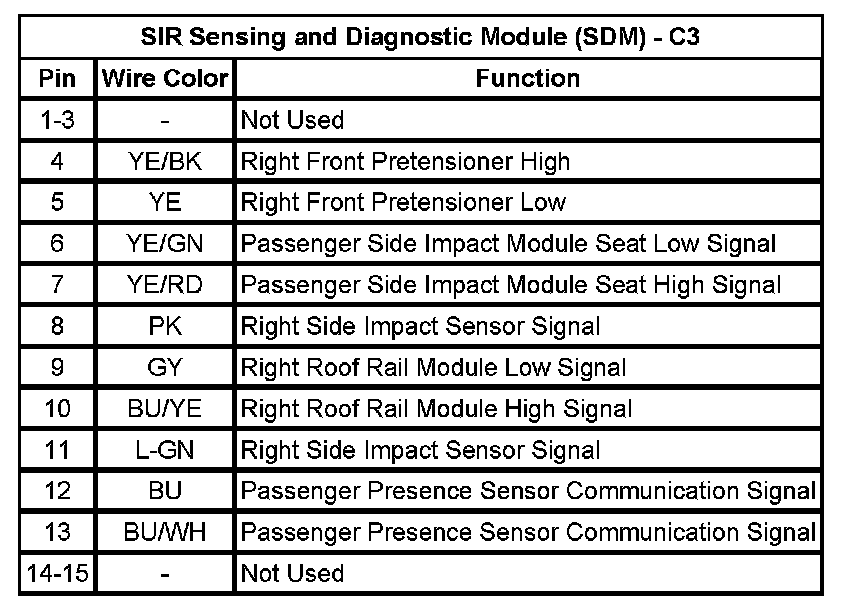

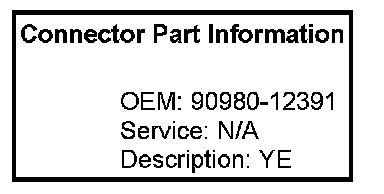

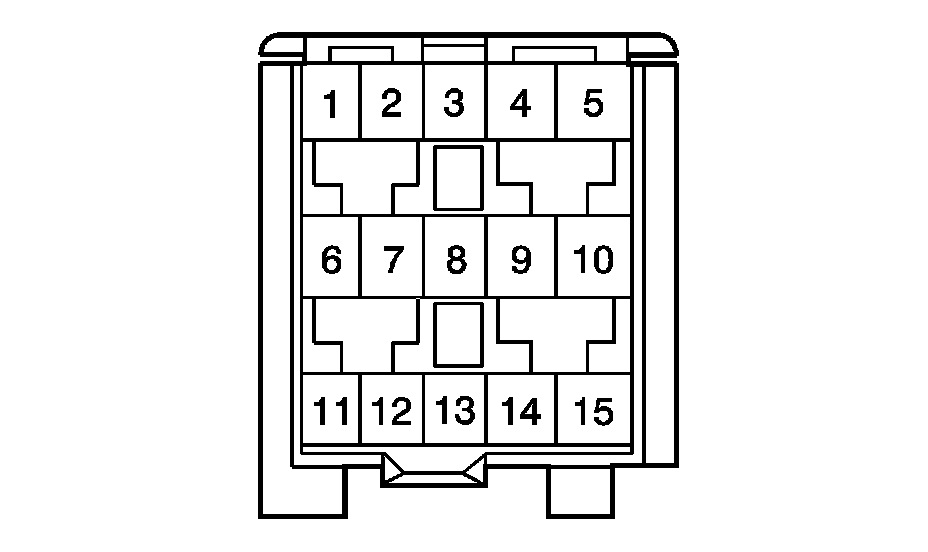

SIR Sensing and Diagnostic Module (SDM) - C3
