Intake Manifold

Upper Intake Manifold Bolt/Stud 25 N.m 18 lb ft

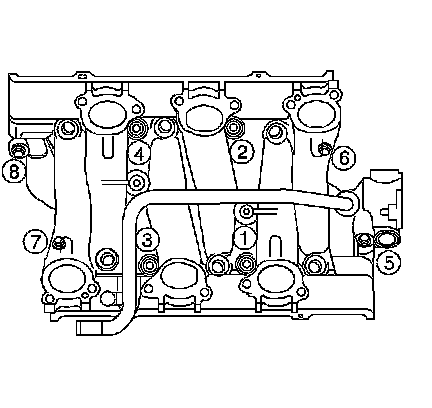

Lower Intake Manifold Bolt - Center
First Pass 7 N.m 62 lb in
Final Pass 13 N.m 115 lb in

Lower Intake Manifold Bolt - Corner
First Pass 13 N.m 115 lb in
Final Pass 25 N.m 18 lb ft

Throttle Body Bolt/Stud 10 N.m 89 lb in
