Connector Views



Automatic Transmission Inline Harness Connector End View

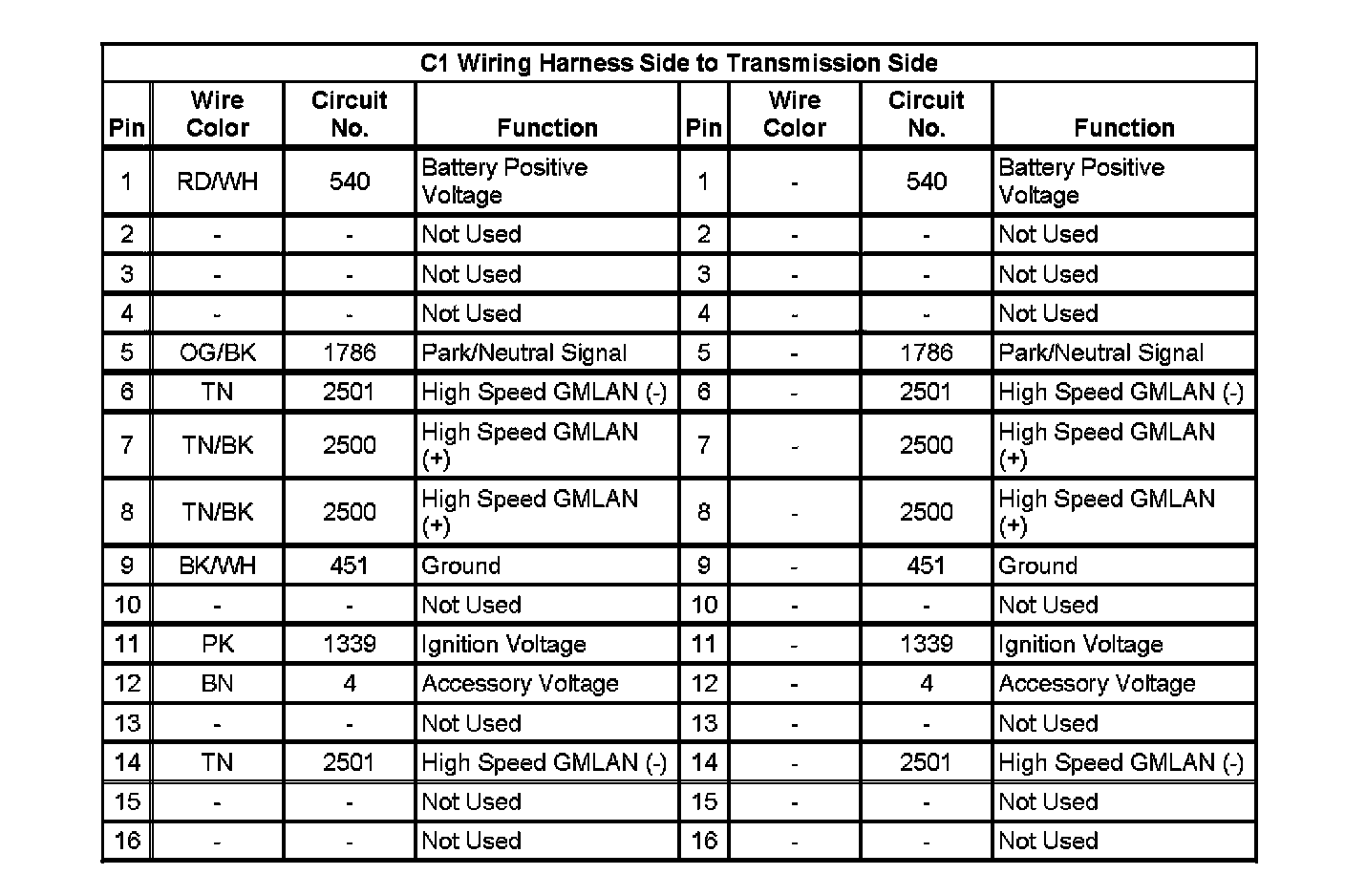

C1 Wiring Harness Side to Transmission Side







C1 Wiring Harness Side To Transmission Side:
