Home >> Pontiac >> 2007 >> Torrent FWD V6-3.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams

Data Link Connector: Diagrams

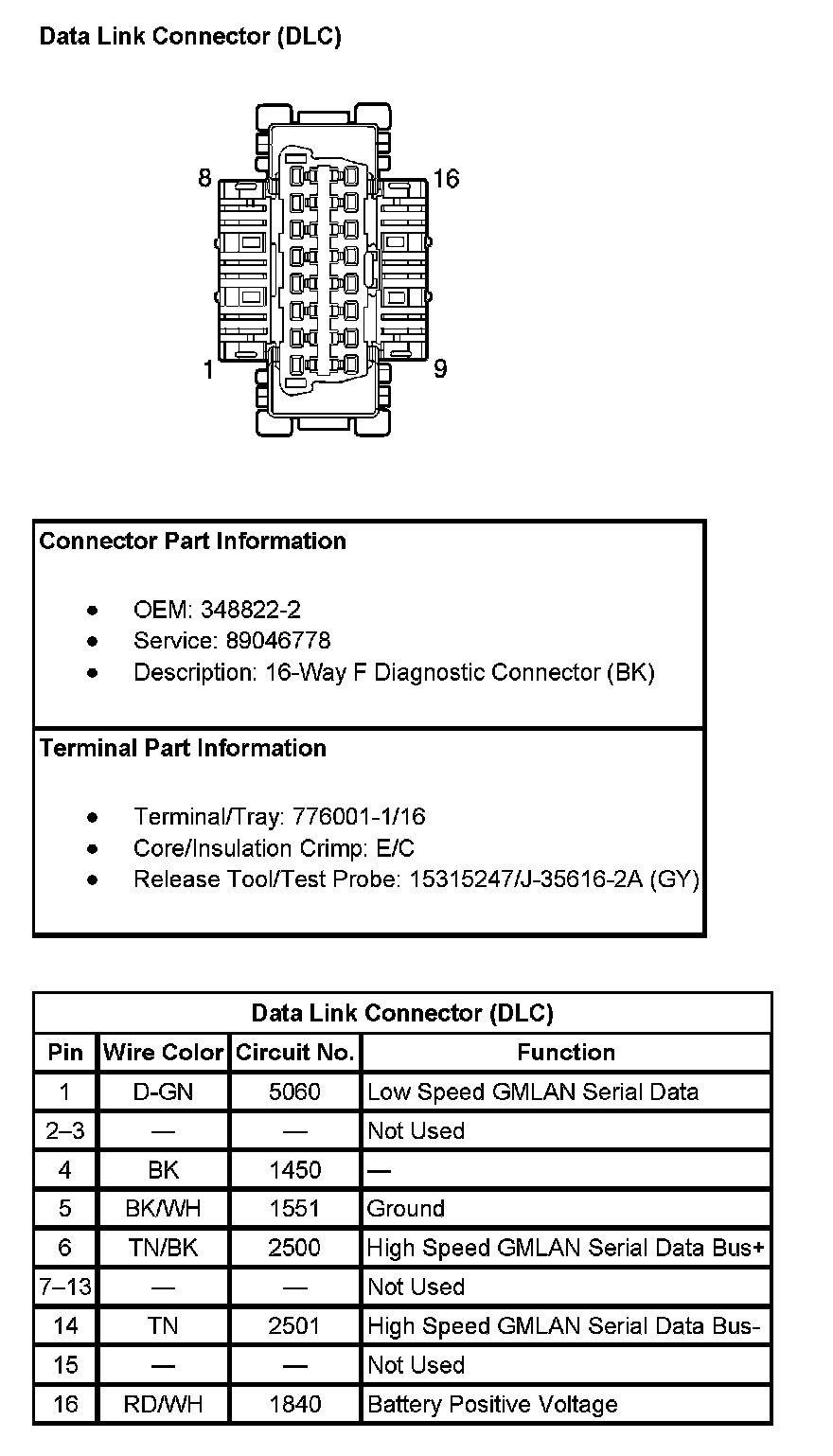

Data Link Connector (DLC) (Pin 1 To 16):
