Pontiac
>>
2007
>>
Torrent FWD V6-3.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Connector Views
Connector Views

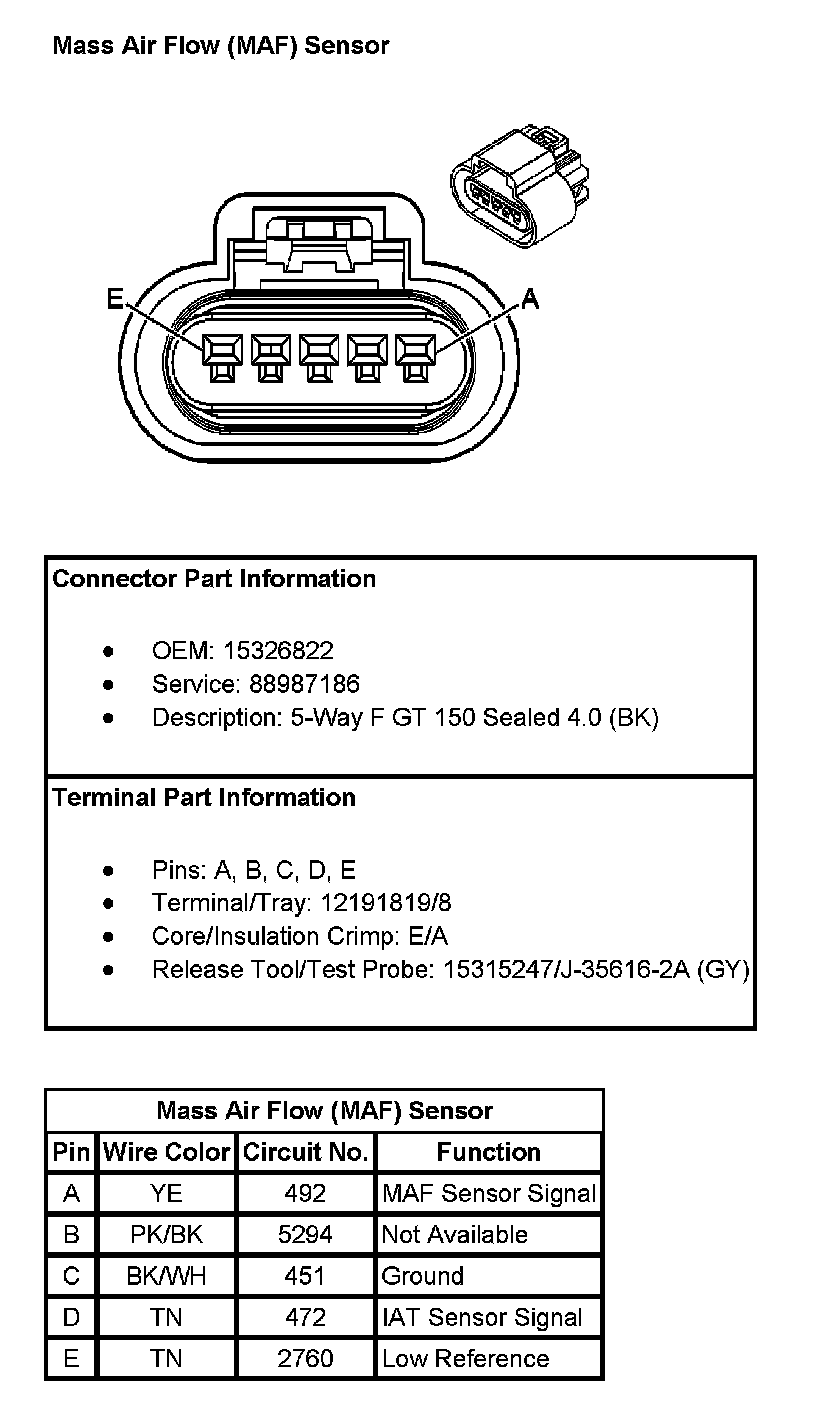

Mass Air Flow (MAF) Sensor:
