Home >> Pontiac >> 2007 >> Torrent FWD V6-3.4L >> Repair and Diagnosis >> Maintenance >> Alignment >> Specifications >> Trim Height Specifications

Trim Height Specifications

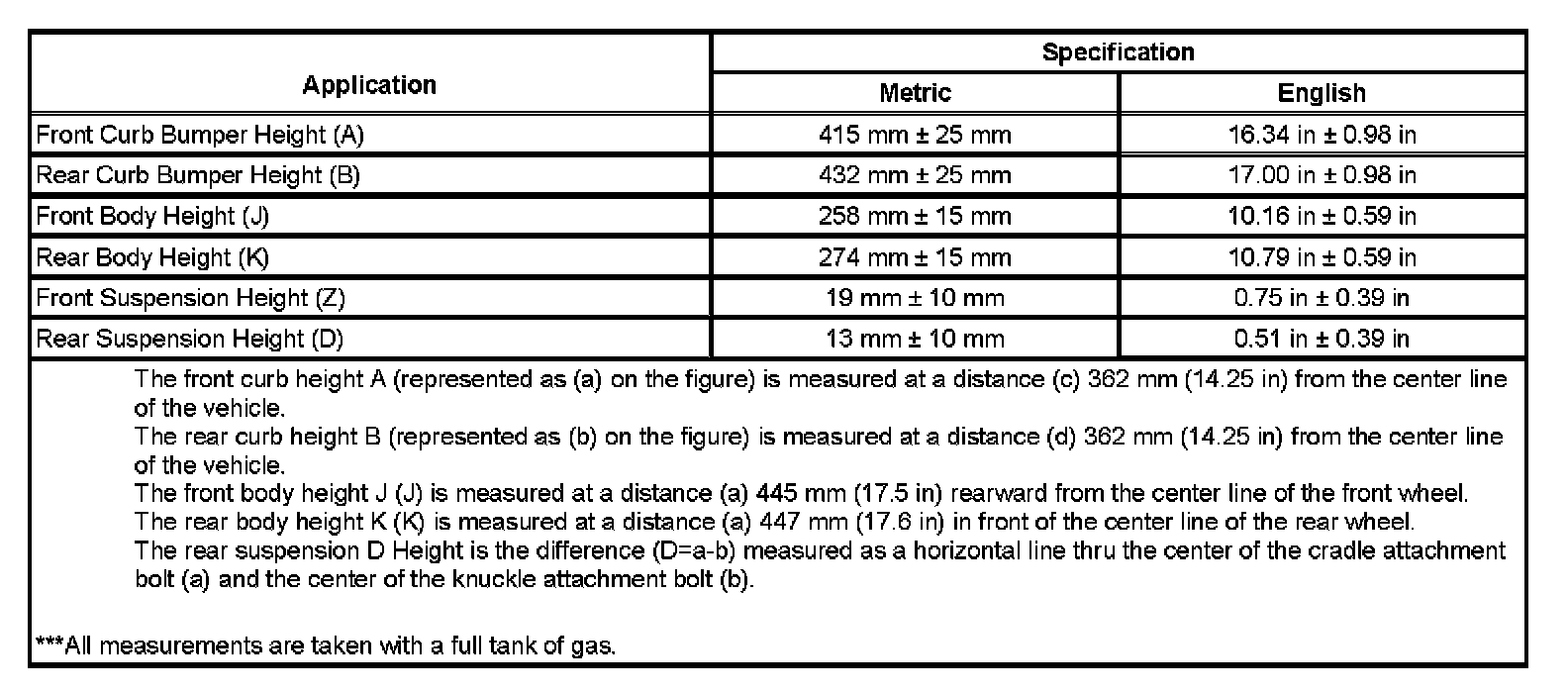

Trim Height Specifications:





Trim Height Specifications


Measuring Z Height:





Measuring Z Height


Measuring D Height:





Measuring D Height

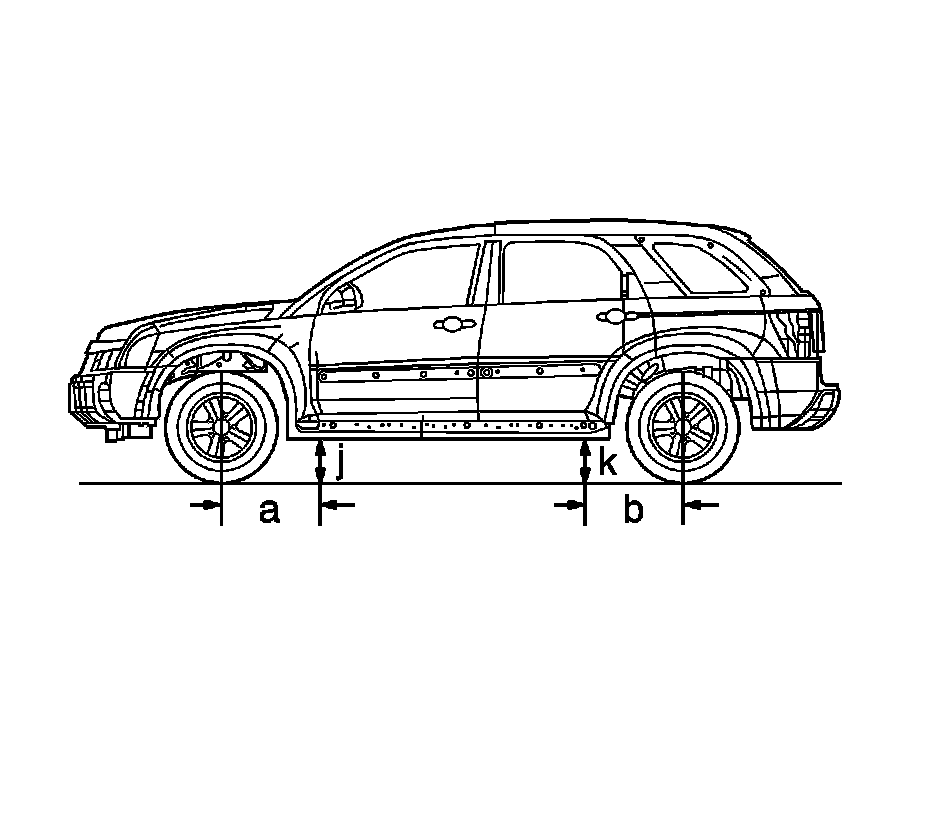

Measuring J or K Height:





Measuring J or K Height

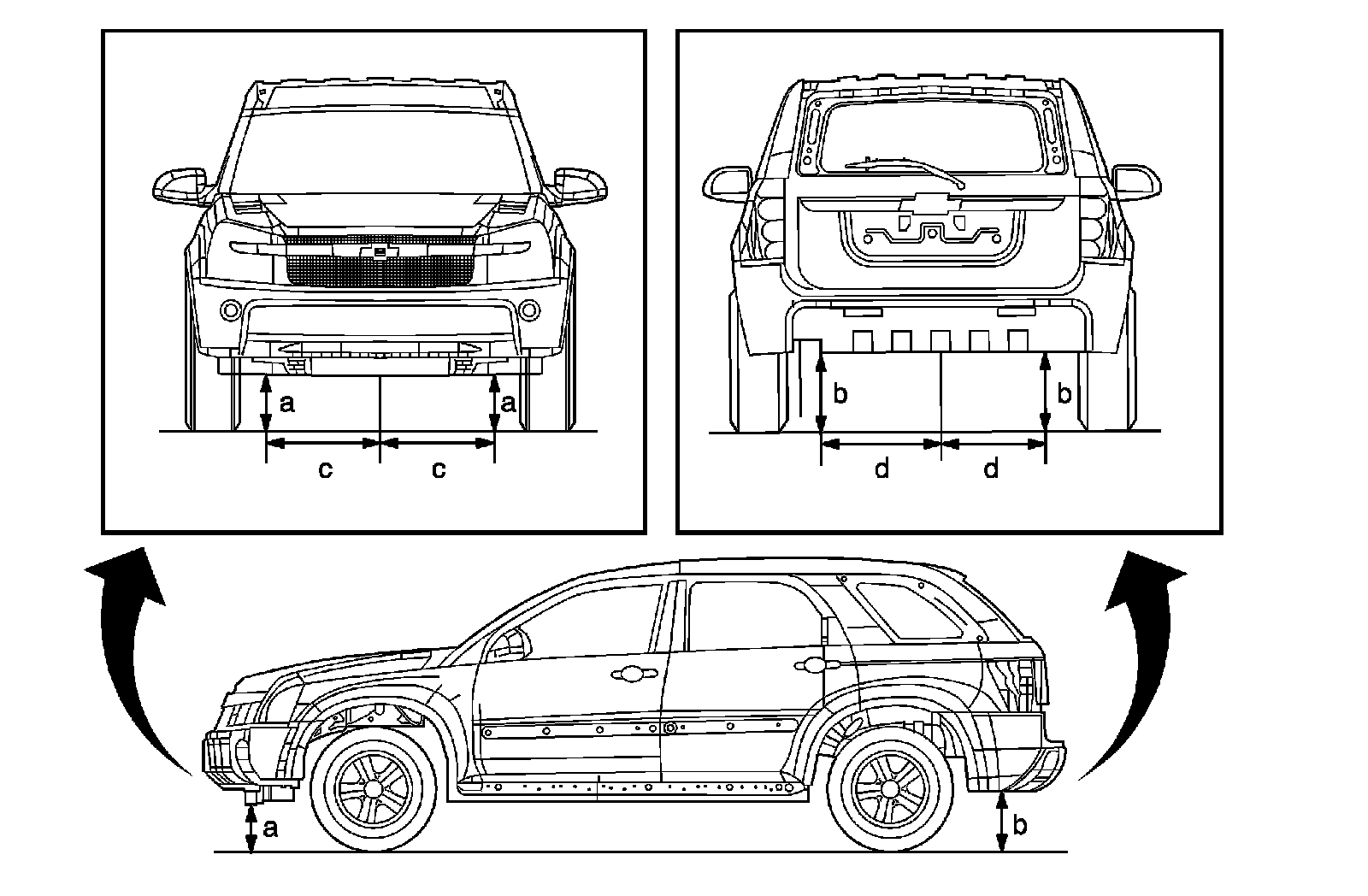

Measuring A or B Height:





Measuring A or B Height
