Control Module HVAC: Diagrams



HVAC Connector End Views

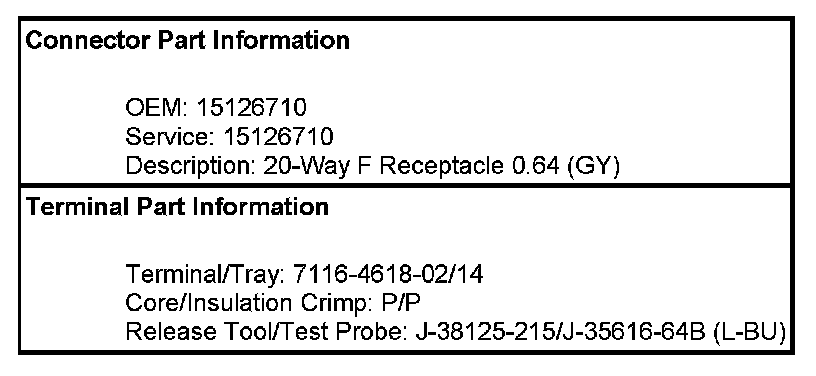

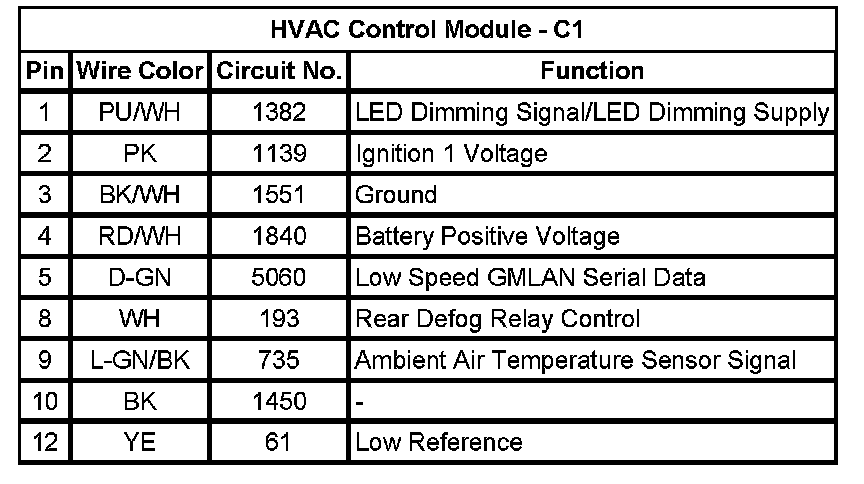

HVAC Control Module - C1

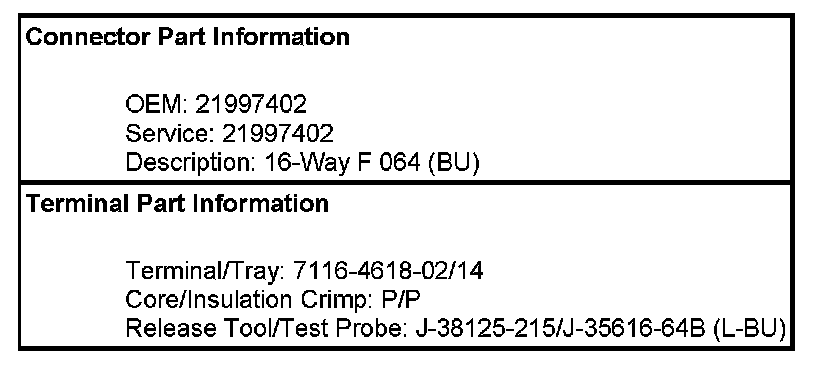

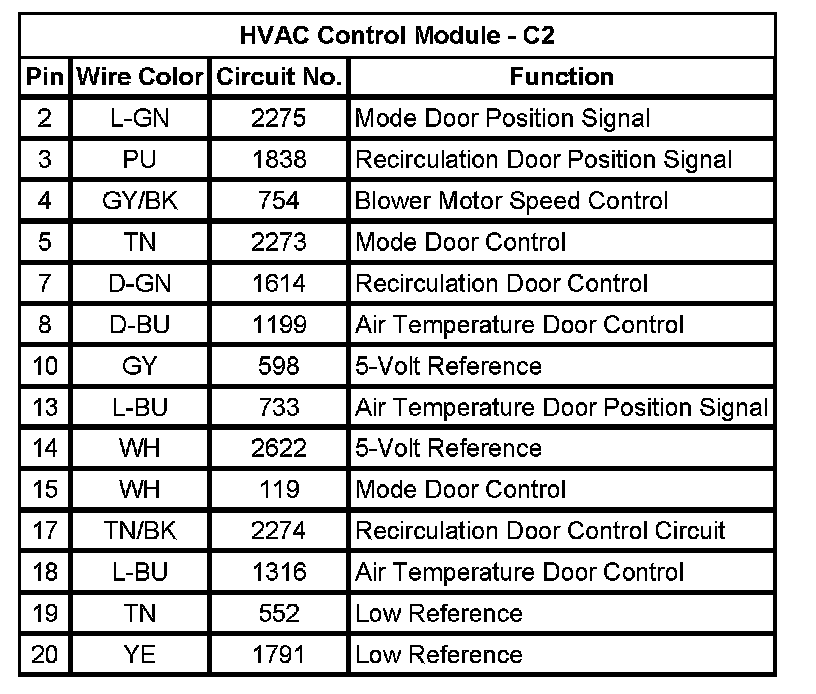

HVAC Control Module - C2
