Home >> Pontiac >> 2007 >> Torrent FWD V6-3.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

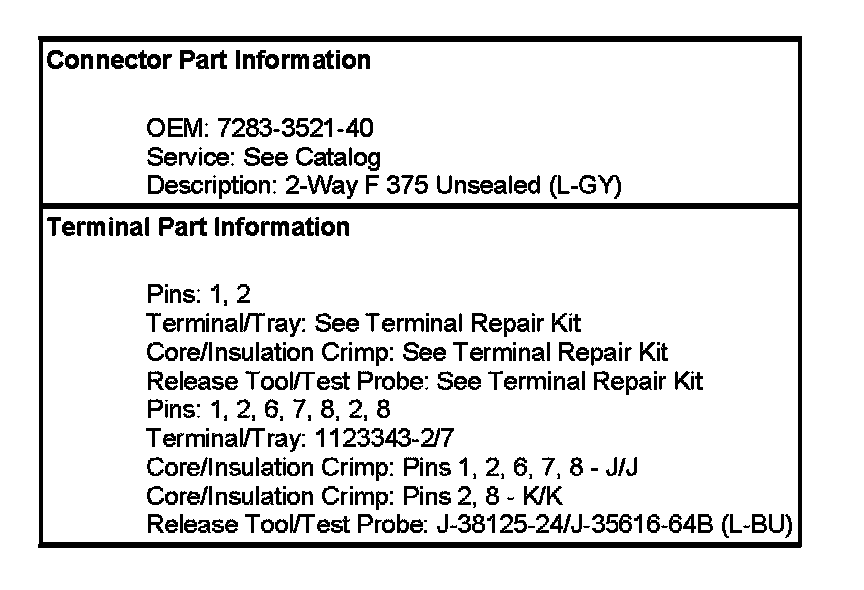

Power Steering Connector End Views

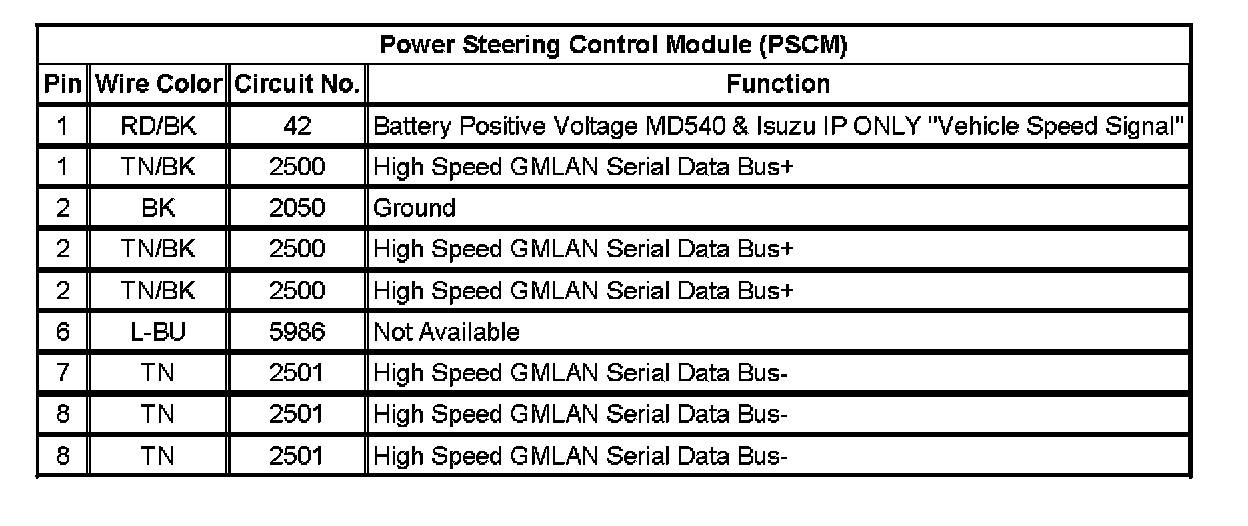

Power Steering Control Module (PSCM)

Power Steering Control Module (PSCM):
